Castle Creations 1717 Sensored 4-Pole Brushless Motor (1650Kv) (ONLINE ORDER ONLY)

Overview

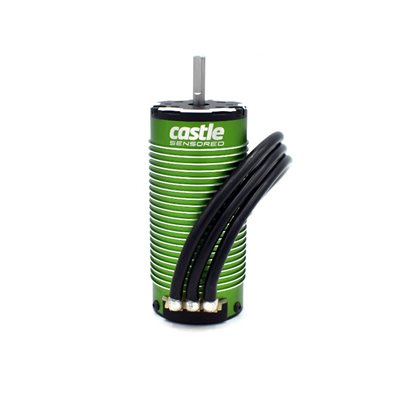

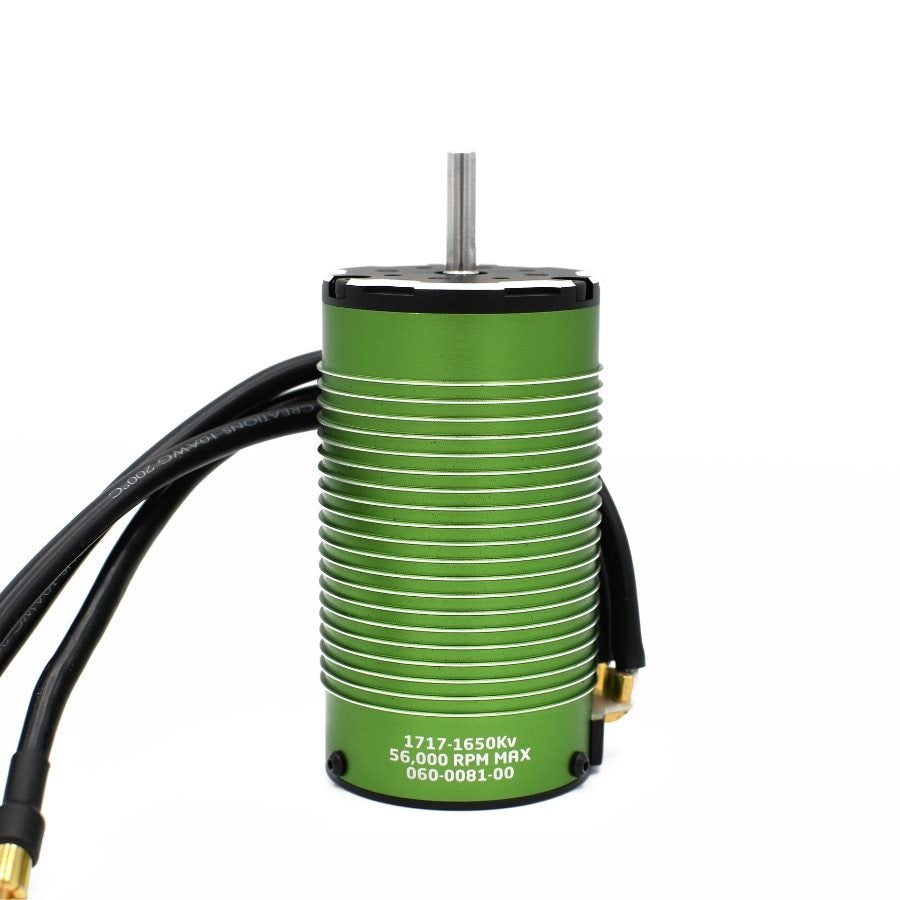

The Castle Creations 1717 1650KV Sensored Brushless Motor (060-0081-00) is a 4-pole, 12-slot powerhouse engineered for high-voltage RC applications. With its improved 12-slot design, the 1717 delivers exceptional efficiency, generates less heat than comparable motors, and produces serious torque - making it the perfect upgrade for 1/6 scale vehicles up to 20 lbs and high-power 1/8 scale rigs.

Castle's QuietSense technology shields the sensors from magnetic field noise, while the Flux Shield and secondary sense magnets deliver high-precision, efficient sensored startups. Optimized sensor alignment eliminates the need for mechanical timing adjustments, providing uniform timing and torque in both directions automatically.

High-strength Kevlar-wrapped neodymium magnets, oversized NMB bearings with vibration dampening, and proprietary low-resistance windings combine to create one of the most efficient, durable high-power motors in the Castle lineup.

Key Features

• 4-pole, 12-slot sensored brushless motor
• 1650kV rating optimized for 6S-8S LiPo
• QuietSense sensor shielding technology
• Flux Shield + secondary sense magnets for precise startup
• Kevlar-wrapped neodymium magnets
• Oversized NMB bearings with vibration dampening
• Low-resistance proprietary windings
• SmartSense compatible with Castle ESCs
• Optimized timing - no mechanical adjustment needed
• Genuine Castle Creations sensored motor

Performance Benefits

• Cooler operation than comparable motors
• Strong torque for heavy 1/6 and 1/8 scale rigs
• Smooth, cog-free sensored startup
• Longer runtimes thanks to improved efficiency
• Proven on speed-run builds reaching 130+ mph

Usage Notes

• Best used with 1/6 scale RC vehicles up to 20 lbs running 6S-8S LiPo
• Also a strong upgrade for high-torque 1/8 scale builds
• Compatible vehicles include: Losi LST2-E; Arrma Limitless, Typhon 6S, Infraction, Talion 6S; Traxxas E-Maxx, E-Revo, UDR, Summit; Redcat Shredder
• Pair with the Mamba Monster X 8S ESC for full performance
• Verify motor mount fitment - some vehicles may require optional mount
• Castle warranty does NOT cover speed-run/drag failures
• Never exceed 180°F motor temp; mounting screws must not extend more than 5mm into motor face

Technical Specs

• Brand: Castle Creations
• Motor Size: 1717
• KV Rating: 1650kV
• Max RPM: 56,000
• Motor Type: Sensored Brushless
• Pole/Slot Count: 4-Pole / 12-Slot
• Input Voltage: 3S-8S LiPo
• Diameter: 1.87" (47.6mm at fins, 46mm at can)
• Length: 3.35" (85.1mm)
• Weight (with wires): 21.08 oz (597.6g)
• Shaft: 5mm diameter, 20mm length
• Mounting Holes: M3 and M4 @ 25.4mm (1")
• Connectors: 6.5mm male bullets
• Optional Cooling Fan: Castle 011-0162-00
• Part Number: 060-0081-00

What's Included

• 1 x Castle Creations 1717 1650kV sensored brushless motor
• Sensor wire

Summary

The Castle 1717-1650kV is a high-torque 8S monster for serious 1/6 and 1/8 scale builders. QuietSense smoothness, 4-pole 12-slot efficiency, and Castle reliability make it the ideal motor for heavy rigs and speed-run platforms.
