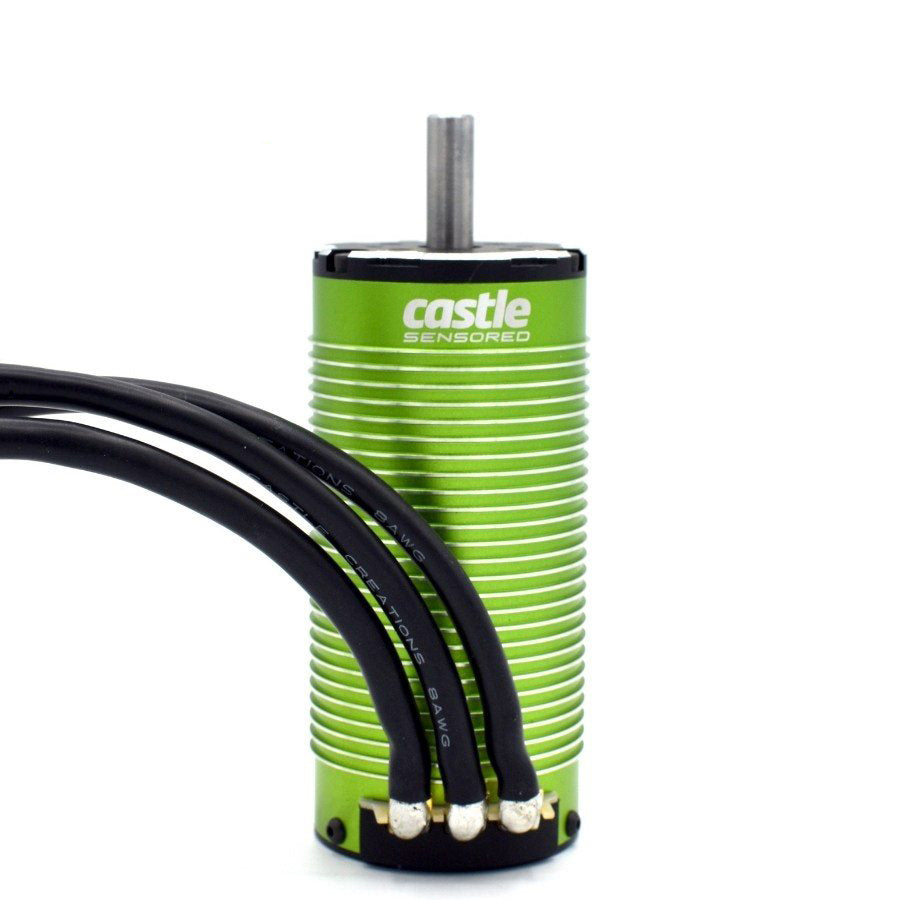

Castle Creations 1721 Sensored Speed Run & Drag Race Brushless Motor 2400kV (ONLINE ORDER ONLY)

The Castle Creations 1721 Sensored Speed Run & Drag Race Brushless Motor is a must-have for experienced enthusiasts who are serious about taking their speed runs and drag races to the next level. Designed for 1:8 and 1:7 scale vehicles and compatible with up to 8s LiPo batteries, the 1721 model boasts a reinforced rotor and an 8mm stainless steel motor shaft for impressive RPM and unparalleled power. With features like 8.0mm bullets and high strand, low resistance, silicone coated 8 gauge copper wire, this motor guarantees maximum top end speed.

Drag and speed run setups are inherently abusive and extremely hard on all electronic components. Every component in the configuration can be strained, weakened (or worse) without using extreme caution, observance of electric theory and advanced knowledge of all aspects of the RC hobby. High speed runs and drag racing are the most advanced, aggressive and volatile applications in the RC car hobby. Use of this product can result in catastrophic failures of the motor, ESC and/or batteries, as well as complete failure of the model, and potential damage to your surroundings. Important product use information is outlined below; following these guidelines will reduce the chances of failure but will not eliminate all risk. If you have any questions, contact Castle Creations customer service to help you get the most (as safely as possible) from your setup.

• This is an extremely powerful motor designed for advanced and experienced users only. Below are suggestions for increasing your likelihood of success but it is not guaranteed.
• This is a VERY high RPM motor. Start with very conservative gearing (small pinion/large spur).
• Check your data logs, temperatures and setup closely after each run to ensure you are not stressing components.
• This motor is intended for single passes only; allow time between runs for the ESC, batteries and motor to cool down to ambient temperatures.
• This motor can pull very high amperages. Make sure your batteries, connectors and soldering are capable of handling the loads. Inadequate power can cause poor performance and damage the batteries and/or ESC.
• Do NOT free rev the motor with no load, particularly when running 6s or higher. The RPM output of the motor is much higher with no load as the kv and battery voltages do not drop.
• Set ESC timing to Lowest (0). This motor will pull considerably more amperage as you increase timing. This does not necessarily equate to more speed as it puts more strain on the batteries and causes the voltage to sag. Less is more sometimes.
• Do not exceed 33.6v when using this motor.
• Be sure your pinion and motor bullets are secure before and after each run.

Input Voltage Range: Min: 4s LiPo/Max: 8s LiPo (33.6V)

Kv: 2400

Max. RPM: 90,000

Diameter: 1.87” (47.6mm) at fins, 46mm at can.

Length: 101.2mm

Weight (w/wires): 816.4g (28.8oz)

Shaft Length: 22mm

Shaft Diameter: 8mm

Mounting Hole Specifications: M3 and M4 @ 25.4mm (1")

Cooling Fan: N/A

Connectors: 8mm male bullets on 8 gauge wire

Items Needed for Operation: Compatible Electronic Speed Control (ESC)

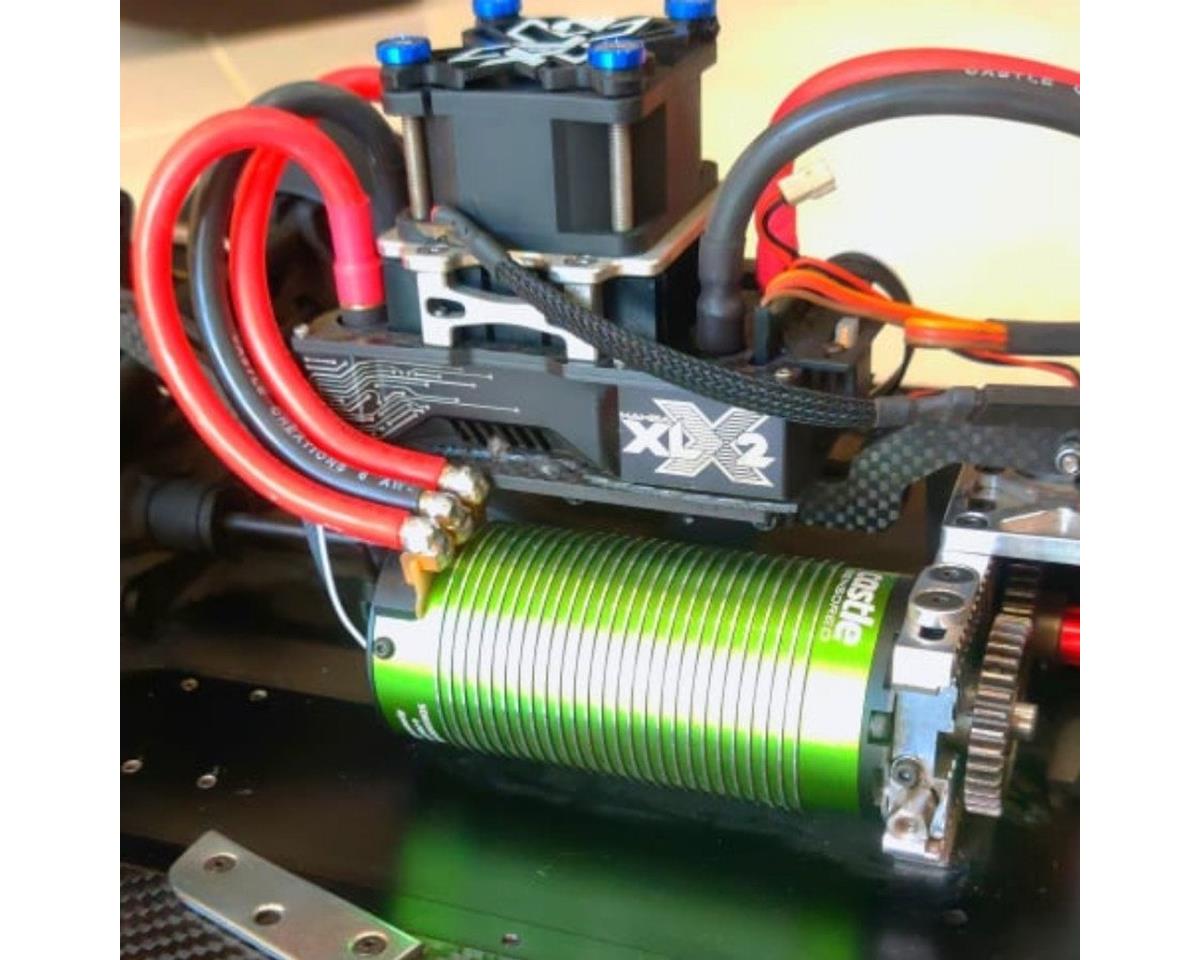

Recommended ESC(s): Mamba XLX2

Running Modes: SmartSense™ (with Castle Sensor capable ESC), Sensored and an ultra-efficient Sensorless mode.
