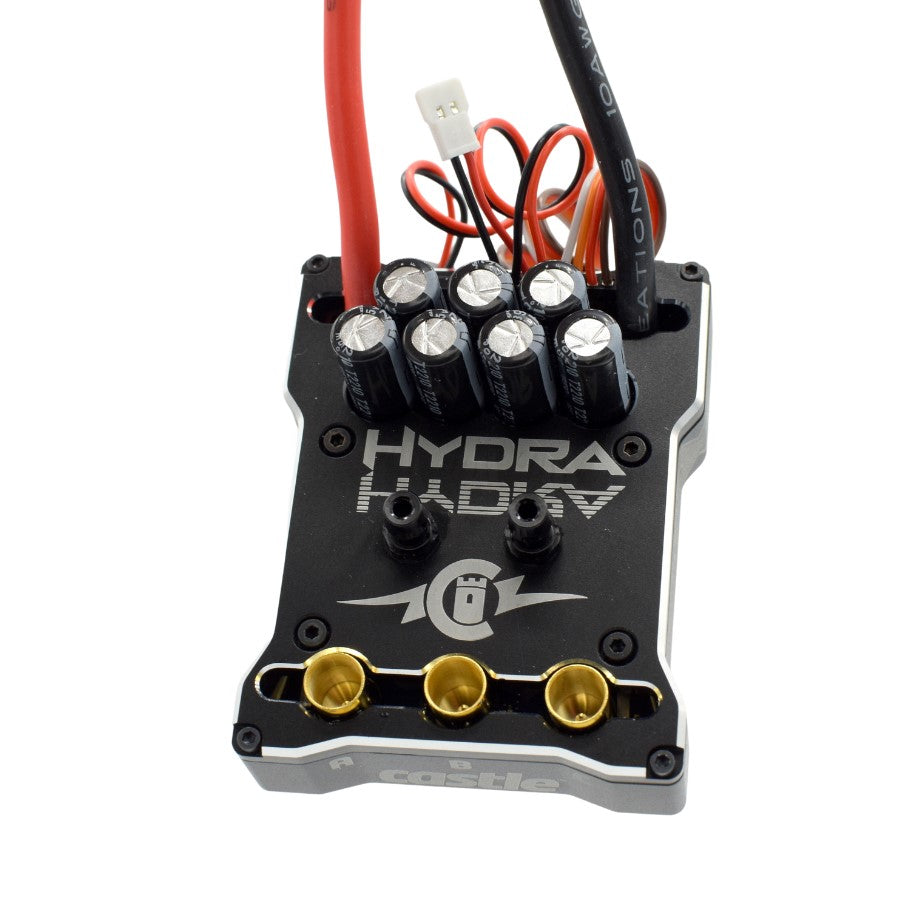

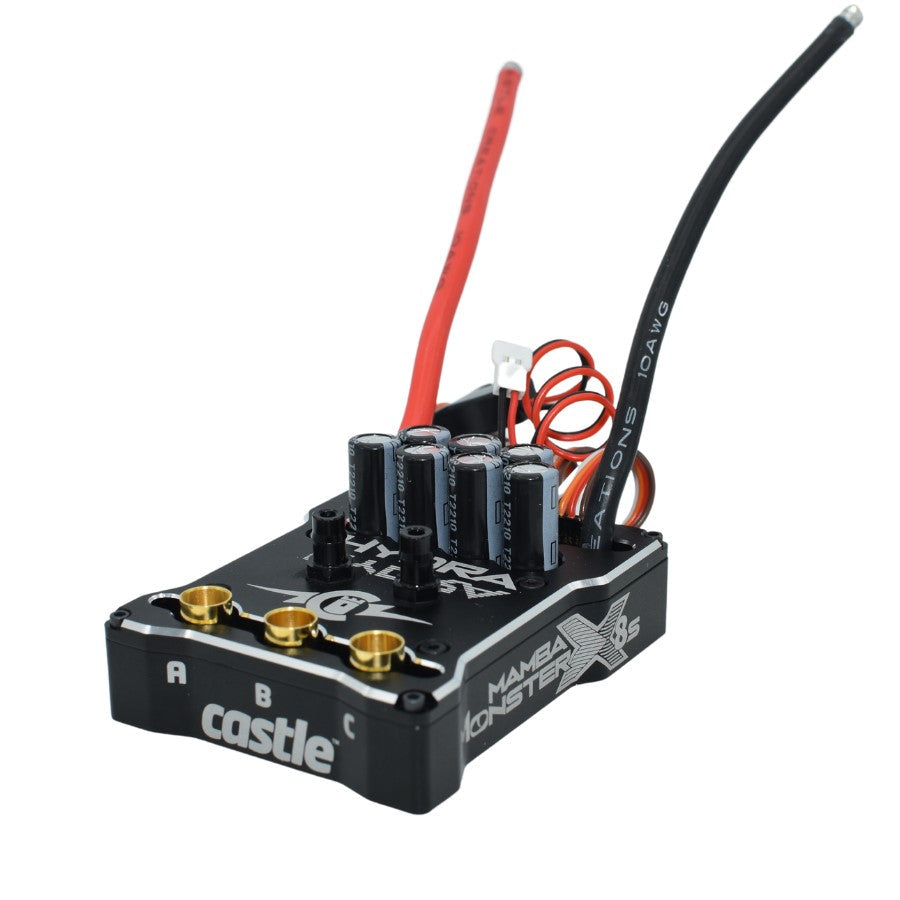

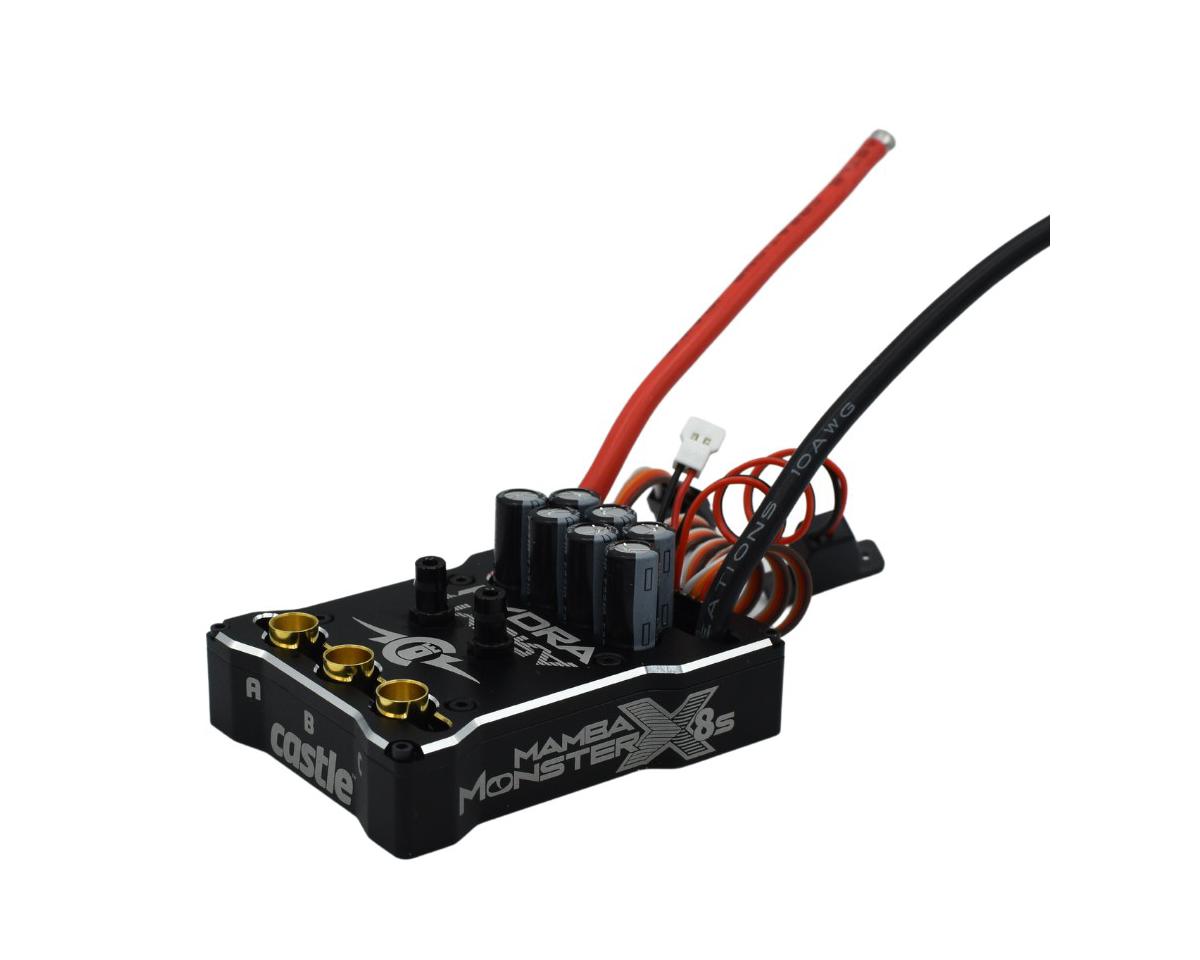

Castle Creations Hydra X 8S 33.6V ESC 8A Peak BEC (ONLINE ORDER ONLY)

Overview

The Castle Creations Hydra X 8S (010-0175-00) is a high-voltage, water-cooled brushless marine ESC engineered for serious RC boat builders. Based on the proven Mamba Monster X 8S platform, the Hydra X 8S swaps the air-cooled heatsink for a precision-machined water-cooled heatsink and aluminum top plate, delivering superior thermal control during sustained high-load operation.

Supporting up to 8S LiPo (33.6V), the Hydra X 8S is purpose-built to push high-performance monohull boats up to approximately 36 inches to their absolute limits. Castle's CRYO-DRIVE technology, adjustable BEC, data logging, and telemetry readiness make this one of the most refined marine ESCs available.

Housed in a rugged CNC-aluminum case and fully potted in waterproof epoxy, the Hydra X 8S is ready for marine duty straight out of the box. Integrated 0.17" aluminum water fittings (10-32 UNF threads) connect easily to standard 1/8" cooling tubing.

Key Features

• High-voltage waterproof brushless marine ESC
• 2S-8S LiPo input (33.6V max)
• CRYO-DRIVE thermal management technology
• Adjustable 8A peak BEC (5.5V-8.0V)
• Sensorless, SmartSense, Sensored Only, and Brushed running modes
• Machined water-cooled heatsink with aluminum top plate
• 0.17" aluminum water fittings (10-32 UNF threads)
• Data logging for performance analysis
• Telemetry-ready (S.BUS2 / Futaba 4PX, 7PX, 7PXR, 10PX)
• Auxiliary wire for on-the-fly transmitter tuning
• Audible alerts for diagnostics
• B-Link 2 Bluetooth programming compatible
• Genuine Castle Creations marine ESC, made in Olathe, KS USA

Performance Benefits

• Active water cooling sustains performance during long runs
• CRYO-DRIVE cuts heat at partial throttle for cooler operation
• Adjustable BEC supports a wide range of high-torque marine servos
• Reliable 8S power handling for high-output marine motors
• Data logging helps fine-tune setup for max speed and efficiency
• Future-proof firmware updates via Castle Link

Usage Notes

• Designed for high-performance RC monohull boats up to 36 inches
• Pair with sensored, sensorless, SmartSense, or brushed marine motors
• Requires high-current connectors rated 120A+ (e.g., Castle CC Bullet 6.5mm or 8.0mm)
• Connect water cooling lines to standard 1/8" tubing before running
• Always confirm motor and battery are rated for 8S marine operation
• Rinse with fresh water and dry fully after each run

Technical Specs

• Brand: Castle Creations
• Model: Hydra X 8S
• ESC Type: Waterproof Brushless Marine
• Input Voltage Range: 2S-8S LiPo (33.6V max)
• BEC Output: 8A peak adjustable (5.5V-8.0V)
• Running Modes: Sensorless, Sensored Only, SmartSense, Brushed
• Water Fittings: Two 0.17" fittings (10-32 UNF threads)
• Dimensions: 69.5 x 54.1 x 24.7 mm
• Weight (with wires): 155.5 g (0.34 lbs)
• Waterproof: Yes
• Data Logging: Yes
• Telemetry: Yes (S.BUS2)
• B-Link Compatible: Yes
• CRYO-DRIVE: Yes
• Warranty: 1 year (Olathe, KS USA)
• Part Number: 010-0175-00

What's Included

• 1 x Castle Creations Hydra X 8S brushless marine ESC
• Water fittings for 1/8" tubing
• Castle Creations decals
• Coupon for free Castle Link USB adapter
• Hydra X 8S Quick Start Guide

Summary

The Hydra X 8S is Castle's flagship 8S marine ESC for serious RC boat builders. Water cooling, CRYO-DRIVE technology, an adjustable BEC, and Castle's bulletproof construction make it the ultimate electronic foundation for high-performance monohulls up to 36 inches.
