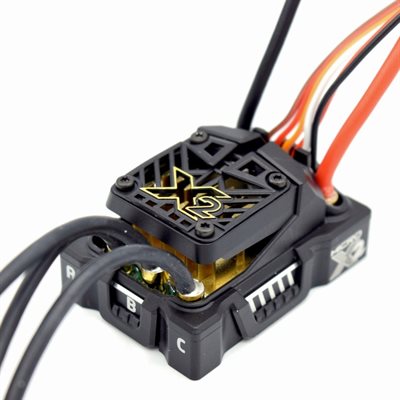

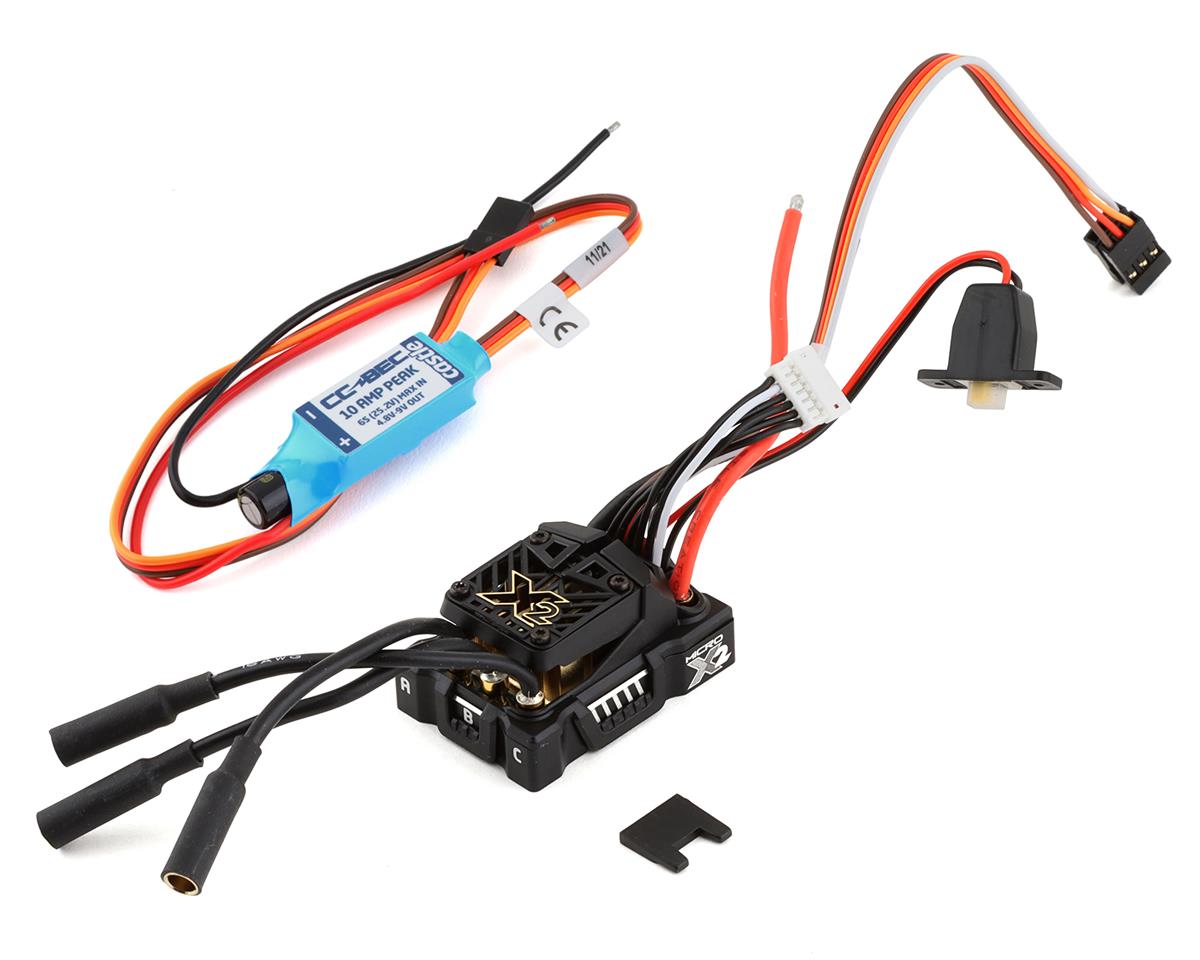

Castle Creations Mamba Micro X2 Waterproof 1/18th Scale Brushless ESC withCSE010-0004-00 10A (ONLINE ORDER ONLY)

Overview

The Castle Creations Mamba Micro X2 ESC (010-0169-00) is a feature-rich, ultra-compact brushless electronic speed controller built for serious 1/18 scale RC. With up to 4S LiPo (16.8V) input, full data logging, and Castle's CRYO-DRIVE technology for cooler operation, the Micro X2 packs flagship-level features into a tiny footprint.

Designed for racers, bashers, and scale builders alike, the Mamba Micro X2 supports both sensored and sensorless brushless motors, giving you the flexibility to build the exact setup your project demands. Sensored mode delivers smooth, cog-free starts and excellent low-speed control, while sensorless mode supports a wide range of micro motors.

Waterproof construction, telemetry readiness, and free Castle Link programming make the Micro X2 one of the most refined micro ESCs available - perfect for any serious 1/18 scale build.

Key Features

• Waterproof brushless ESC for 1/18 scale
• Input voltage range: 2S-4S LiPo (up to 16.8V)
• Sensored and sensorless motor compatible
• CRYO-DRIVE technology for cooler partial-throttle operation
• Data logging with downloadable analysis
• Auxiliary wire for on-the-fly transmitter tuning
• Telemetry-ready (S.BUS2 compatible)
• B-Link Bluetooth programming compatible
• Audible alerts for diagnostics
• 1-year manufacturer warranty

Performance Benefits

• Sensored smoothness for cog-free starts
• 4S capability adds significant power over original Micro X
• CRYO-DRIVE keeps the ESC cool under sustained load
• Refined low-speed throttle modulation
• Versatile for racing, bashing, and scale applications

Usage Notes

• Best used with 1/18 scale 2WD and 4WD RC vehicles up to 2.25 lbs
• Compatible vehicles include: Traxxas Slash 4x4 1/16, Losi Mini-T 2.0, Traxxas LaTrax Rally, Traxxas LaTrax Teton, Axial Yeti Jr.
• Use 2S-4S LiPo
• Pair with appropriate sensored or sensorless brushless motor
• Rinse with fresh water after wet running and dry fully

Technical Specs

• Brand: Castle Creations
• Model: Mamba Micro X2
• ESC Type: Brushless (sensored capable)
• Input Voltage Range: 2S - 4S LiPo (up to 16.8V)
• Waterproof: Yes
• Data Logging: Yes
• Telemetry Capable: Yes (S.BUS2)
• CRYO-DRIVE: Yes
• B-Link Compatible: Yes
• Scale Compatibility: 1/18
• Part Number: 010-0169-00

What's Included

• 1 x Castle Creations Mamba Micro X2 Waterproof Brushless ESC

Summary

The Mamba Micro X2 is a flagship-class micro ESC packed into a tiny, waterproof footprint. CRYO-DRIVE cooling, 4S capability, sensored support, and full data logging make it the ultimate Castle ESC for serious 1/18 scale builds.
