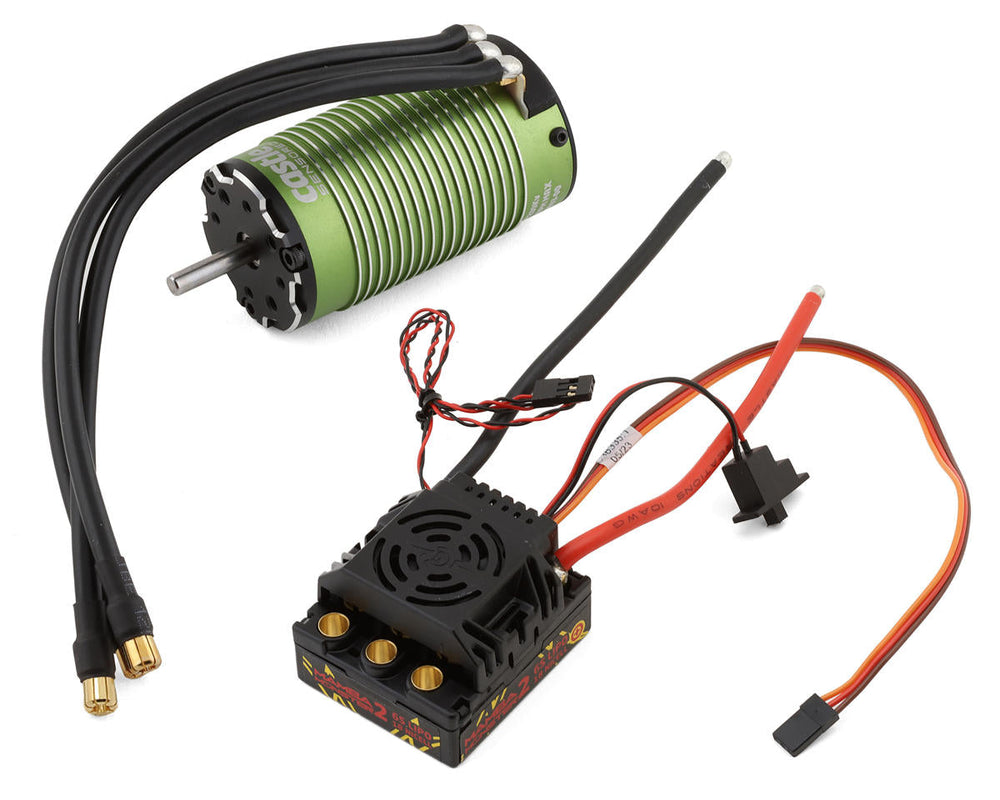

Castle Creations Monster 2 1/8 25v ESC Waterproof 2200kv Motor (ONLINE ORDER ONLY)

Castle Creations revolutionized the RC world with the introduction of the Mamba Monster, providing unparalleled power and stamina. This powerful ESC can handle 2S-6S LiPo batteries and is waterproof for worry-free use in any weather conditions. Conquer the mud, snow, and rain without fear of damaging your electronics!

Features an adjustable internal BEC with a peak of 8.0V, factory equipped and fully removable cooling fan, LED error codes for common error conditions, redesigned rotor and stator assemblies, reduced magnetic cogging, producing less residual drag brake, increased efficiency, resulting in lower temperatures and longer run times, smoother start-up, reducing cogging or stuttering when starting from a stop, high-performance 0.2mm steel lamination stacked stator oversized high quality NMB bearings!

The Mamba Monster 2 includes a coupon for a free Castle Link USB device. This allows access to the full programming suite of adjustable settings that tune and tweak your vehicle to your preferences, resulting in an incredible RC driving experience. This combo includes the Mamba Monster 2 controller and the recently updated Castle 1515-2200kV V2 sensored motor (Sensored capabilities of the motor cannot be utilized with the Mamba Monster 2).

ESC Features:

• Adjustable Internal BEC: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
• Factory equipped (30mm), fully removable cooling fan
• Waterproof design allows for use in nearly any environment
• LED error codes for common error conditions
• Convenient transmitter programming for nine common adjustable settings
• Full compatible with the Castle Link Programming Suite or the Castle Link iOS App and a B-LINK Bluetooth Adapter. (sold separately)
• Proudly Designed, Assembled and Supported in Olathe, KS USA
• Backed by Castle Creations' 1-year warranty

Motor Features:

• Redesigned rotor and stator assemblies
• Reduced magnetic cogging, producing less residual drag brake
• Increased efficiency, resulting in lower temperatures and longer run times
• Smoother start-up, reducing cogging or stuttering when starting from a stop
• Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly
• High-Strength kevlar wrap and 180C grade neodymium sintered magnets
• Oversized NMB bearings and high-temperature, high-purity copper windings
• Castle 10 AWG, high-strand-count silicone-insulated wire with 6.5mm bullet connectors
• High-Performance 0.2mm steel lamination stacked stator
• Oversized, low-resistance, gold-plated solder tabs
• Sensor board with high-quality temperature-stabilized sensors
• T6 aluminum CNC-machines front and rear end bell
• Proudly designed and supported in Kansas, USA
• Backed by Castle Creations' 1-year warranty

Specifications:

• ESC:
• Input voltage range: 2S-6S LiPo
• BEC Specifications: Adjustable - 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak) (5.5V default)
• Length: 2.09" (53mm)
• Width: 1.93" (49mm)
• Height: 1.44" (36.4mm)
• Weight: 3.92oz (111g)
• On/Off Switch: Yes
• Cooling Fan: Yes, factory equipped
• Connector: 6.5mm female bullets for motor connection
• Wire Gauge: 8AWG

• Motor:
• Application: Ideal for 1/8 scale buggies, truggies, on-road vehicles and 1/10 scale monster trucks up to 15lbs
• Input Voltage Range: 2-6S LiPo
• Kv Rating: 2200Kv
• Max. RPM: 60.000
• Diameter: 1.57" (39.98mm)
• Length: 2.96" (75.18mm)
• Shaft Size: 20mm(Length), 5mm(Diameter)
• Weight(w/wires): Approx. 15oz (452.2g) (W/Wires)
• Mounting Hole Specifications: (Holes) 4mm & 3mm / (Spacing) 25.4mm
• Connectors: 6.5mm male Castle Bullet Connectors

NOTE:  CSE011-0130-00 Rotor Replacement is NOT compatible with the V2 motor. A new rotor replacement will be available in the future.

Includes:

• (1) Mamba Monster 2 ESC
• (1) 1515-2200kv V2 sensored* brushless motor
• (1) Coupon for free Castle Link USB adapter
• (1) Driver's Ed and Quick Start Guide
• (1) Decal sheet
