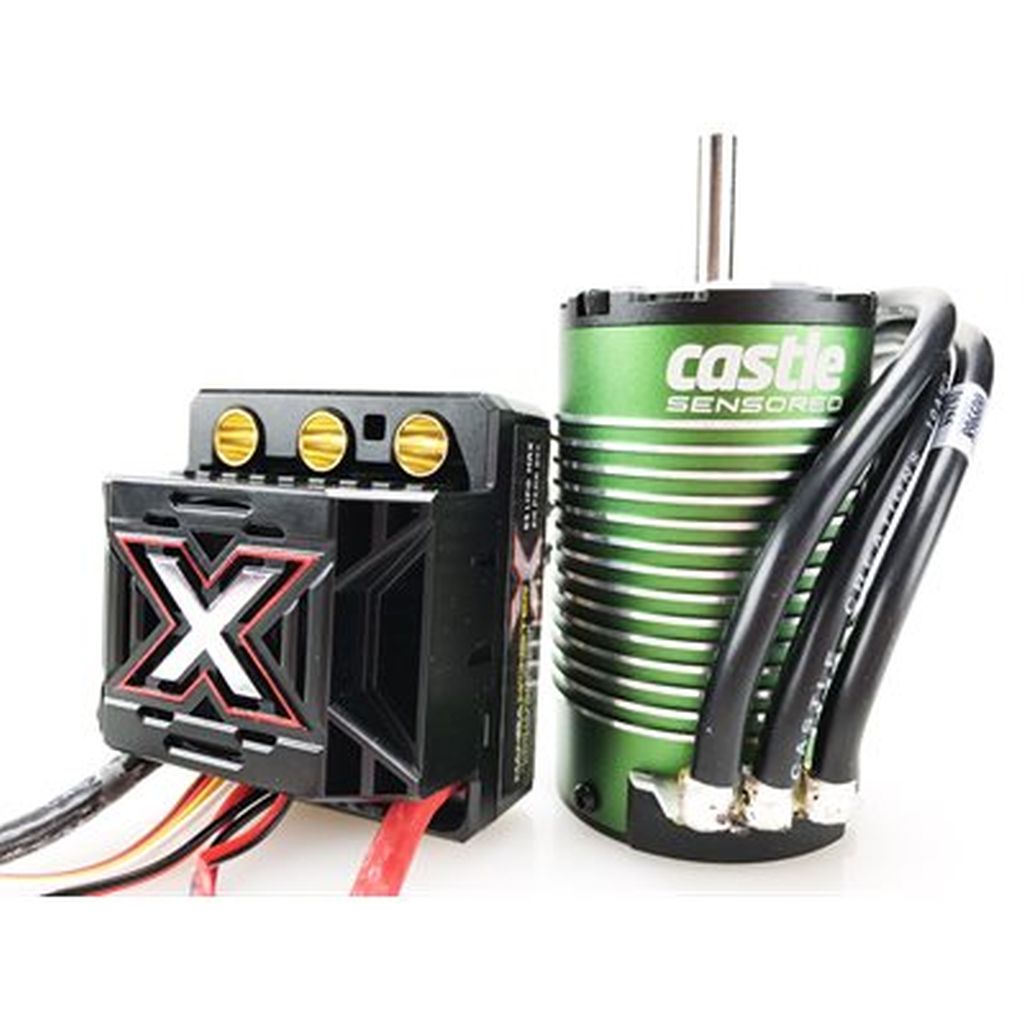

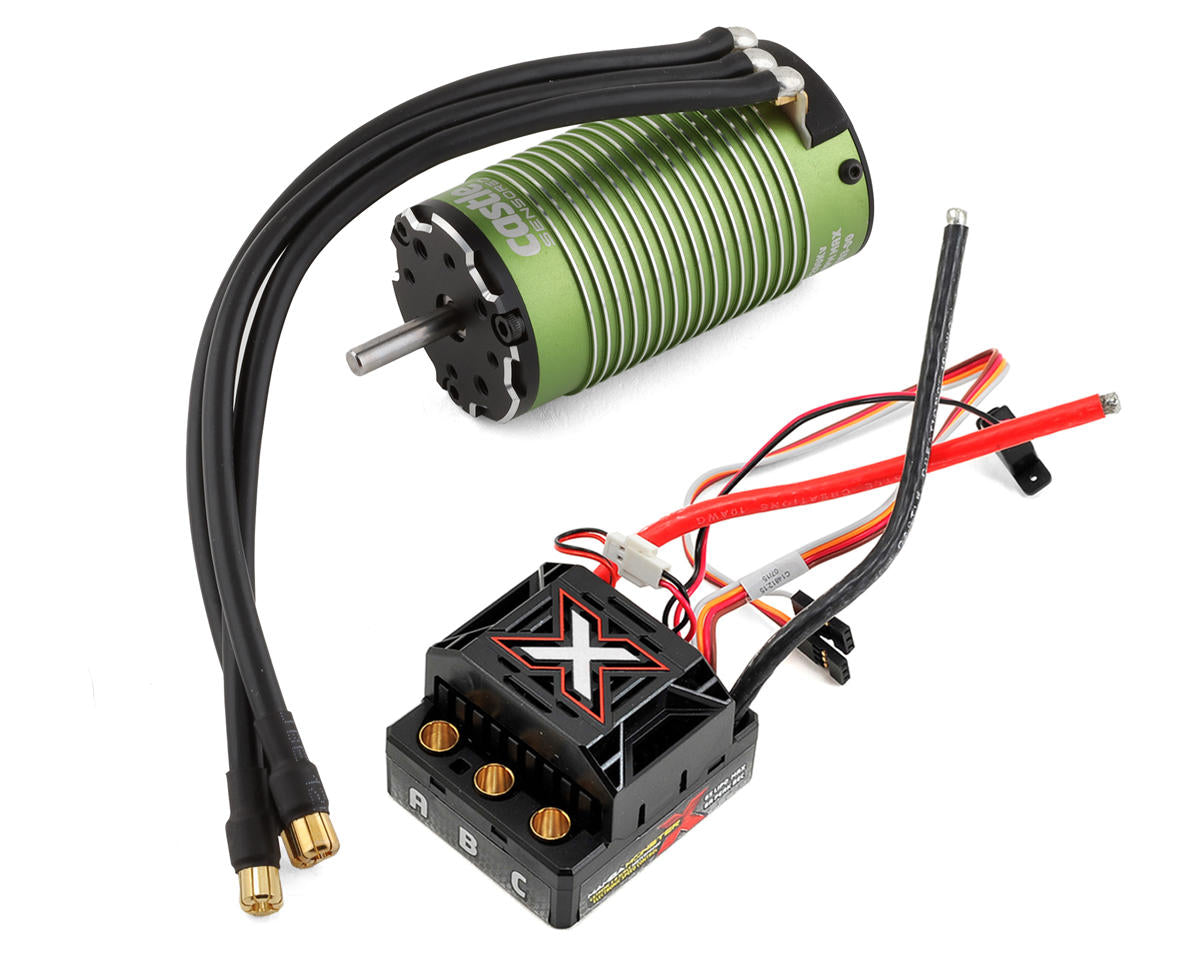

Castle Creations Monster X 1/8 Brushless Combo w/1515 V2 Sensored Motor (ONLINE ORDER ONLY)

Overview

The Castle Creations Monster X 1/8 Brushless Combo (010-0145-06) pairs the proven Mamba Monster X ESC with the redesigned 1515-2200kV V2 sensored brushless motor in one factory-matched, race-ready power system. Built for extreme performance, this combo is engineered for 1/8 scale buggies, truggies, and on-road vehicles, plus 1/10 scale monster trucks up to 15 lbs.

The Mamba Monster X ESC supports 2S-6S LiPo, with 4S commonly cited as the performance sweet spot. Castle's SmartSense sensored startup technology pairs perfectly with the V2 motor for cog-free launches, smooth throttle modulation, and strong torque delivery across the entire RPM range.

Refined data logging, telemetry compatibility, and auxiliary wire functionality let advanced drivers extract every bit of performance from this combo - making it one of the most versatile and capable systems in Castle's surface lineup.

Key Features

• Factory-matched ESC and motor combo for 1/8 scale
• Mamba Monster X ESC, 2S-6S LiPo capable
• 1515-2200kV V2 sensored brushless motor (4-pole, 12-slot)
• SmartSense sensored startup for cog-free launches
• Selectable internal BEC: 5.5V or 7.5V (6A peak)
• Waterproof epoxy-potted ESC construction
• Pre-installed cooling fan
• Data logging via Castle Link
• Telemetry-ready (S.BUS2 compatible)
• Auxiliary wire for on-the-fly transmitter tuning
• Audible alerts for diagnostics
• Genuine Castle Creations matched power system

Performance Benefits

• Smooth, cog-free starts thanks to SmartSense
• Massive torque for heavy 1/8 scale and 1/10 monster builds
• Cooler operating temps from V2 motor redesign
• Linear throttle delivery for confident drivability
• Real-time tuning via auxiliary wire
• Performance data logging helps optimize setup

Usage Notes

• Best used with 1/8 scale buggies, truggies, and on-road vehicles, plus 1/10 scale monster trucks up to 15 lbs
• 4S LiPo is the performance sweet spot; 6S unlocks maximum power
• Use a quality 2.4GHz radio system
• Verify gearing and drivetrain strength match selected battery
• Sensor connections are NOT waterproof - apply dielectric grease

Technical Specs

ESC Specifications - Mamba Monster X

• Brand: Castle Creations
• Model: Mamba Monster X
• ESC Type: Brushless (sensored capable)
• Input Voltage Range: 2S-6S LiPo
• BEC Output: Selectable 5.5V / 7.5V, 6A peak
• Dimensions: 53 x 49 x 36.4 mm
• Weight: ~111 g
• Waterproof: Yes (epoxy potted)
• Data Logging: Yes
• Telemetry: Yes (S.BUS2)
• Auxiliary Wire: Yes

Motor Specifications - 1515 V2 2200kV

• Brand: Castle Creations
• Motor Size: 1515
• KV Rating: 2200kV
• Motor Type: Sensored Brushless
• Pole/Slot Count: 4-Pole / 12-Slot
• Input Voltage: 2S-6S LiPo
• Shaft Diameter: 5mm
• Connectors: 6.5mm Castle bullet connectors

Combo Information

• Application: 1/8 scale, 1/10 monster truck (up to 15 lbs)
• Warranty: 1 year (Olathe, KS USA)
• Part Number: 010-0145-06

What's Included

• 1 x Mamba Monster X ESC (with pre-installed cooling fan)
• 1 x Castle 1515-2200kV V2 sensored brushless motor
• Sensor wire

Summary

The Mamba Monster X + 1515-2200kV V2 combo is a proven Castle power system for serious 1/8 scale racers and bashers. SmartSense smoothness, massive torque, and full data logging make it a top-tier choice for any high-performance build.
