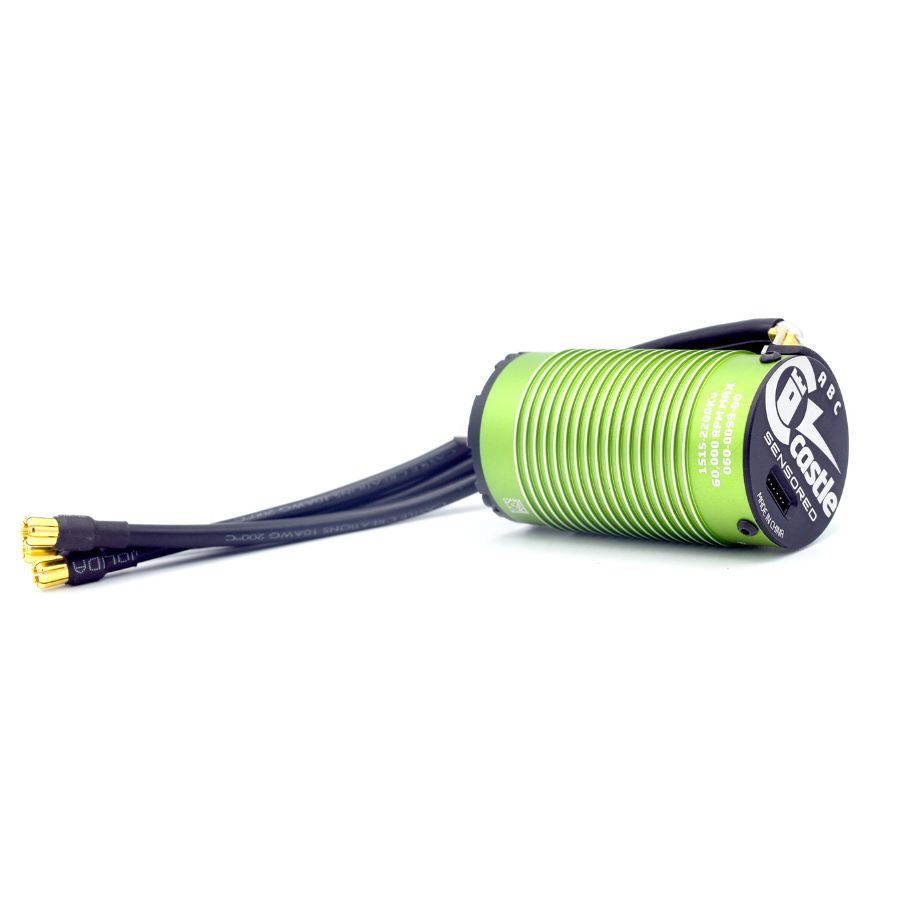

Castle Creations MOTOR 4-POLE SENSORED BRUSHLESS 1515-2200KV V2 (ONLINE ORDER ONLY)

Overview

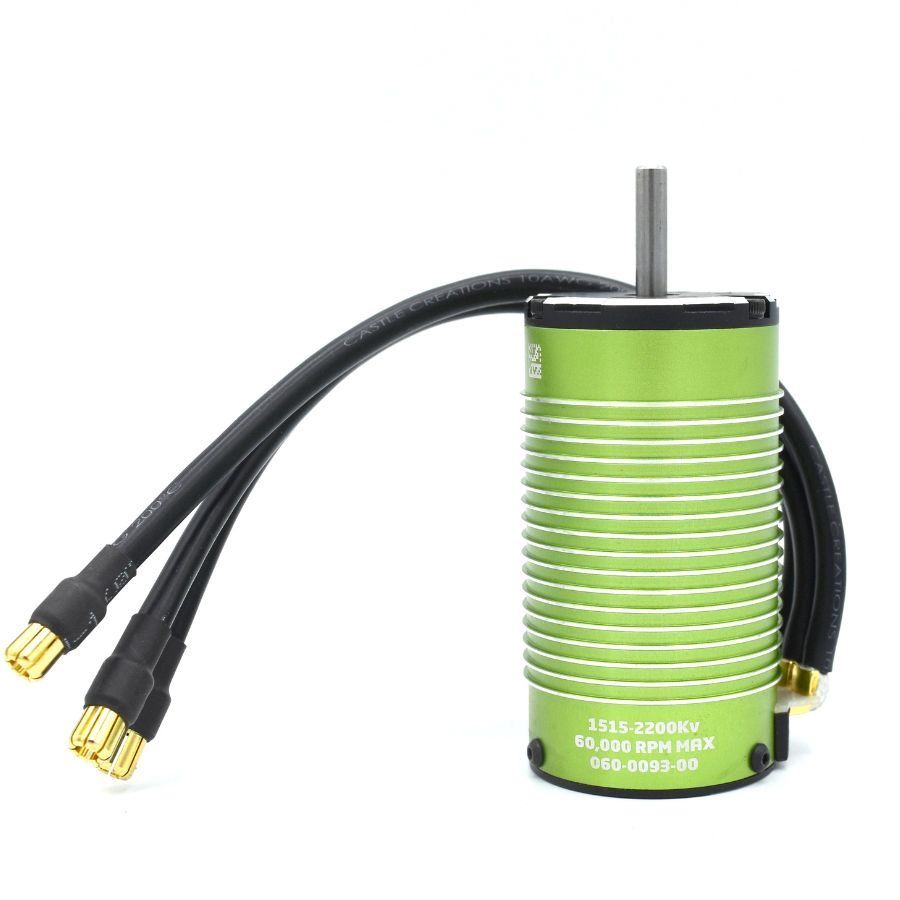

The Castle Creations 1515-2200KV V2 Sensored Brushless Motor (060-0093-00) is a redesigned 4-pole, 12-slot motor engineered for high-power 1/8 scale RC and heavy 1/10 scale monster trucks. Built on one of Castle's most popular motor platforms, the V2 features a completely reworked rotor and stator that improves magnetic flux, efficiency, and overall drivability.

Smooth sensored startup, strong torque, and reduced operating temperatures make this the go-to motor for demanding 1/8 scale buggies, truggies, on-road builds, and 1/10 monster trucks weighing up to 15 lbs. High-strength Kevlar-wrapped neodymium magnets, oversized NMB ball bearings, and high-purity copper windings ensure long-term durability under extreme load.

Fully rebuildable construction means you can replace the rotor/shaft or end bell assemblies as needed - keeping your motor performing like new for the long haul.

Key Features

• 4-pole, 12-slot sensored brushless motor
• Redesigned V2 rotor and stator for improved magnetic flux
• Reduced cogging and smoother startup
• Higher efficiency for cooler running and longer runtimes
• Kevlar-wrapped high-strength neodymium magnets
• Oversized NMB ball bearings
• High-purity copper windings
• Low-resistance gold-plated solder tabs
• QuietSense sensor technology
• Fully rebuildable design
• Genuine Castle Creations sensored motor

Performance Benefits

• Cog-free SmartSense startup with paired Castle ESCs
• Strong torque for heavy 1/8 and 1/10 scale vehicles
• Cooler operating temperatures during long runs
• Refined low-speed control for technical driving
• Excellent durability under sustained high load

Usage Notes

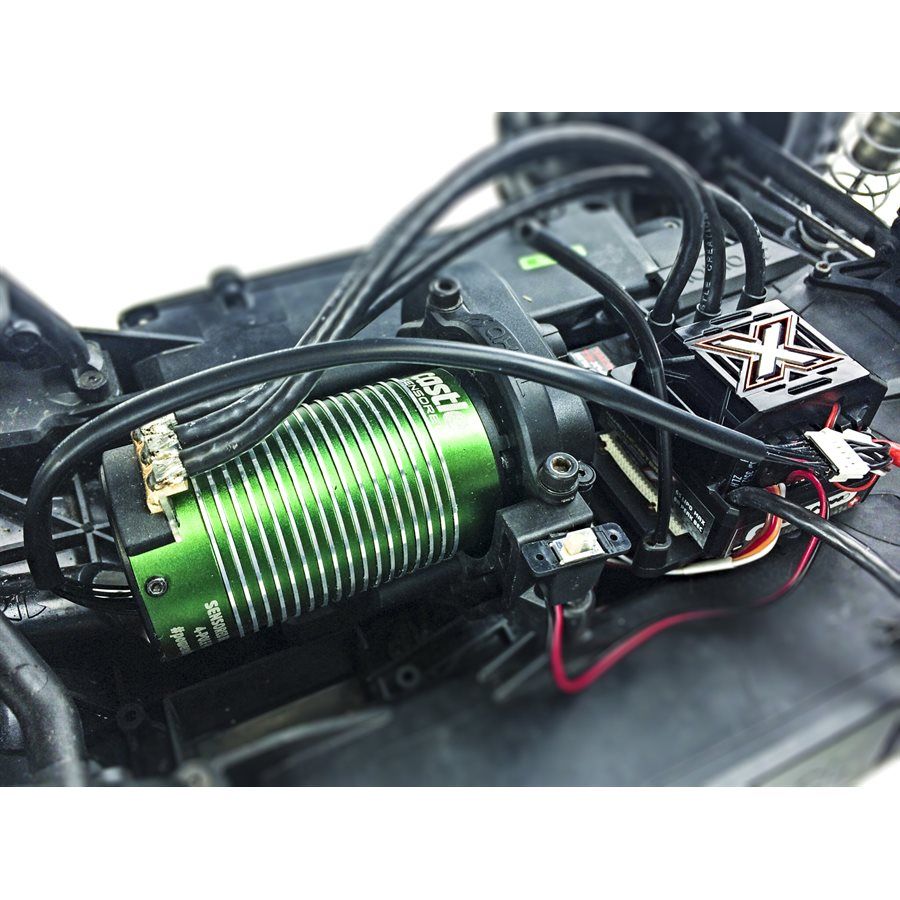

• Best used with 1/8 scale buggies, truggies, and on-road vehicles, plus 1/10 scale monster trucks up to 15 lbs
• Pair with a sensored Castle ESC such as Cobra 8 or Mamba Monster X for full SmartSense capability
• Sensor connections are NOT waterproof - apply dielectric grease and route carefully
• Never exceed 180°F motor temperature
• Do not use mounting screws extending more than 5mm into the motor face

Technical Specs

• Brand: Castle Creations
• Motor Size: 1515
• KV Rating: 2200KV
• Motor Type: Sensored Brushless
• Pole Count: 4-Pole / 12-Slot
• Input Voltage: 2S-6S LiPo
• Shaft Diameter: 5mm
• Connectors: 6.5mm Castle bullet connectors
• Running Modes: SmartSense, Sensored, Sensorless
• UPC: 819326012976
• Part Number: 060-0093-00

What's Included

• 1 x Castle Creations 1515-2200KV V2 sensored brushless motor
• Sensor wire

Fitment

Compatible Vehicles: ARRMA Typhon, ARRMA Kraton, ARRMA Nero, ARRMA Infraction, ARRMA Talion, ARRMA Felony, Traxxas Sledge, Traxxas Summit, HPI Savage, Losi LMT

Summary

The 1515-2200KV V2 is the refined evolution of Castle's most popular high-power motor. Smooth sensored starts, strong torque, and rebuildable construction make it the ideal motor for demanding 1/8 scale and heavy 1/10 scale RC builds.
