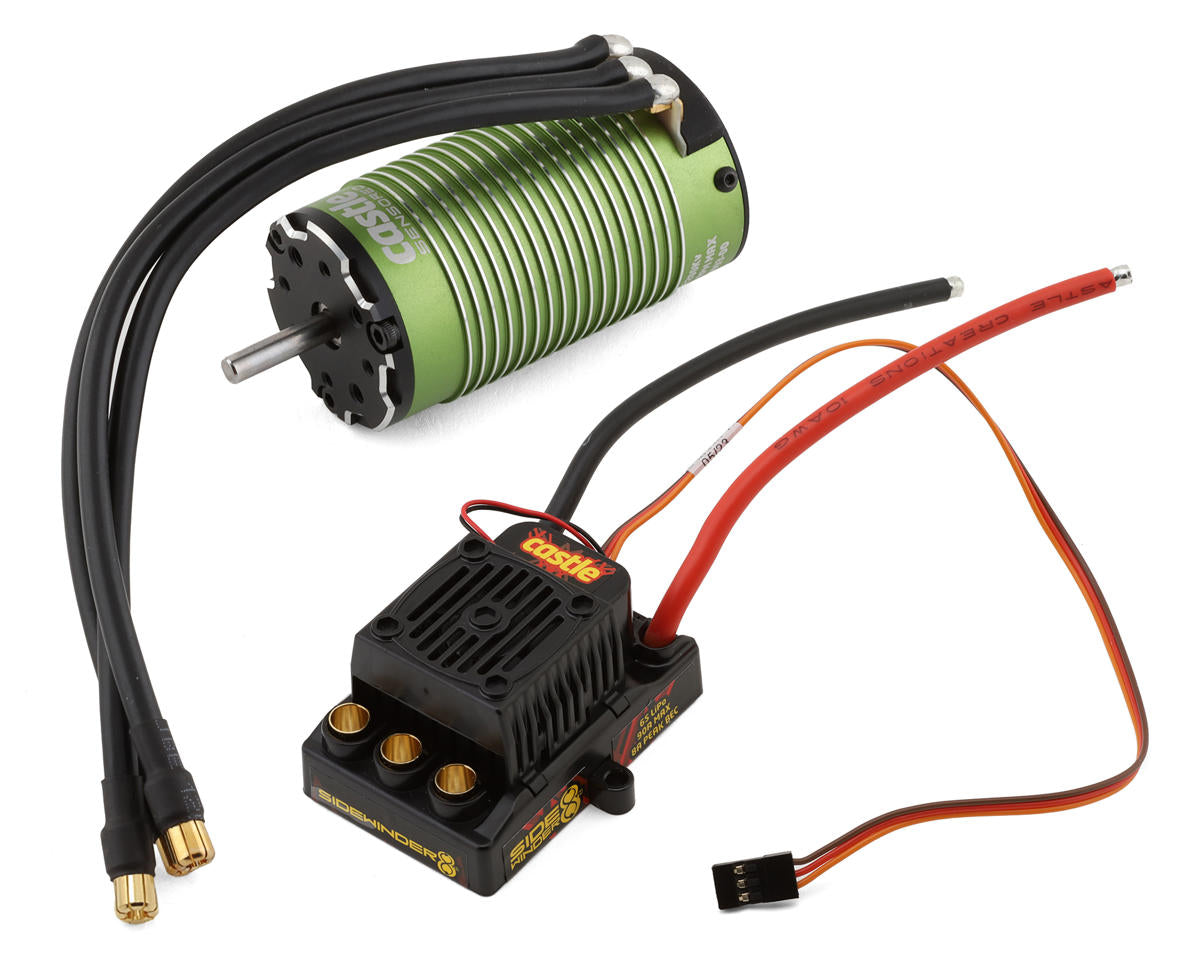

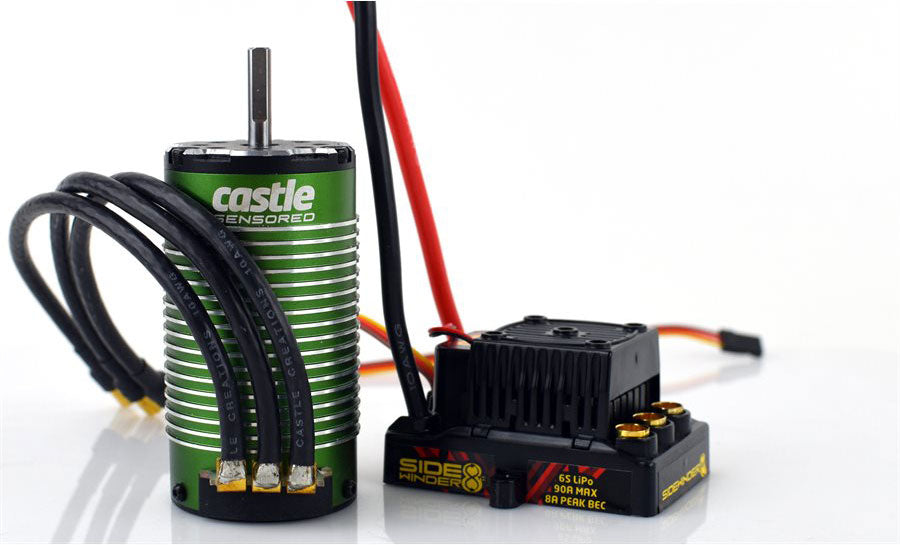

Castle Creations Sidewinder 1/8 Brushless ESC Combo 1515 V2 Sensored Motor 2200kV (ONLINE ORDER ONLY)

Experience unbeatable power and control with Castle Creations' Sidewinder 1/8 Brushless ESC Combo! This waterproof combo is built for 1/8 scale buggies, truggies, and on-road vehicles, as well as 1/10 scale monster trucks up to 11lbs. It's also a perfect upgrade for 4WD short course trucks on 3S or 4S, making it a versatile and affordable option for any platform. With the ability to handle 2S-6S LiPo and an 8amp peak BEC, this is the ultimate choice for passionate RC enthusiasts looking for an exhilarating experience. Don't miss out on the chance to upgrade your 1/8th scale vehicle and feel the smooth throttle control for yourself!

Sidewinder 1/8th Features:

• 2S-6S LiPo with vehicles up 11.lbs with battery, ready-to-run
• Smooth Sensorless and sensored motor operation

1515-2200 V2 MOTOR Features:

• Redesigned stator and rotor assemblies to improve magnetic flux
• Reduced magnetic cogging, producing less residual drag brake
• Increased efficiency, resulting in lower temperatures and longer run times
• Smoother start-up, reducing cogging or stuttering when starting from a stop
• Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly
• High-Strength Kevlar wrap and 180C grade neodymium sintered magnets
• Oversized NMB bearings and high-temperature, high-purity copper windings
• High performance 0.2mm steel lamination stacked stator
• Oversized, low-resistance, gold-plated solder tabs
• Sensor board with high quality temperature stabilized sensors
• T6 aluminum CNC-Machined front/rear end bell
• Proudly designed and supported in Kansas, USA

Specifications:

• ESC:
• Input voltage range: 2S-6S LiPo
• Length: 2.45" (62.2mm)
• Width: 2.20" (56mm)
• Height: 1.33" (34mm)
• Weight: 3.52oz (100g)
• On/Off Switch: Yes
• Cooling Fan: Yes, factory equipped
• Connector: 6.5mm female bullets for motor connection
• Wire Gauge: 8AWG

• Motor:
• Application: Ideal for 1/8 scale buggies, truggies, on-road vehicles and 1/10 scale monster trucks up to 15lbs
• Input Voltage Range: 2-6S LiPo
• Kv Rating: 2200Kv
• Max. RPM: 60.000
• Diameter: 40mm (41.4mm with fins)
• Length: 3.99" (101.2mm)
• Shaft Size: 20mm(Length), 5mm(Diameter)
• Weight(w/wires): Approx. 429g / 15.1oz; 380g without wires
• Mounting Hole Specifications: (Holes) 4mm & 3mm / (Spacing) 25mm
• Connectors: 6.5mm male Castle Bullet Connectors, include 210mm length sensor wire.

NOTE: (CSE011-0130-00) Rotor Replacement is NOT compatible with the V2 motor. A new rotor replacement will be available in the future.

Includes:

• (1) Sidewinder 1/8 Brushless ESC
• (1) 1515-2200Kv V2 Brushless Sensored Motor
• (1) Castle Sensor Harness Adapter
• (1) 210 mm sensor wire (for sensored operation)
• (1) Coupon for free Castle Link USB
