Futaba 26SZ Transmitter - 26-Channel Digital Proportional RC System 01004437-1 (ONLINE ORDER ONLY)

Overview

The Futaba 26SZ is the flagship 26-channel digital proportional transmitter representing the pinnacle of Futaba's aircraft radio technology. Featuring the advanced FASSTest bidirectional communication system, this transmitter provides secure 2.4GHz operation with full telemetry capability for real-time monitoring of receiver voltage, signal quality, and connected sensors.

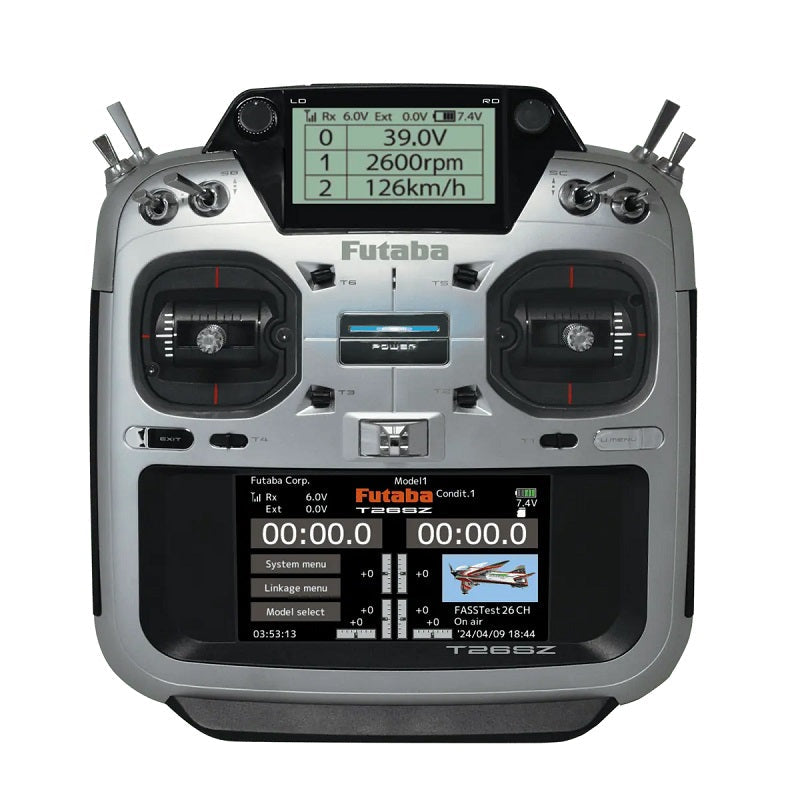

The stunning 4.3-inch HVGA full-color touchscreen LCD with transflective technology ensures clear visibility both indoors and outdoors. With support for multiple model types including multicopters, helicopters with 8 swash types, and airplanes/gliders with 7 wing and 3 tail configurations, the 26SZ handles virtually any aircraft you can build. S.Bus2 integration enables simplified wiring while providing access to Futaba's comprehensive telemetry sensor ecosystem.

Key Features

• FASSTest 2.4GHz bidirectional communication
• 26-channel capacity for complex aircraft
• 4.3" HVGA full-color touchscreen LCD
• Transflective display for indoor/outdoor visibility
• S.Bus2 system for simplified wiring and telemetry
• Multicopter, helicopter (8 swash types), and airplane support
• 7 wing types and 3 tail types for airplanes/gliders
• SD card slot for model data and software updates
• Vibration alert function
• Speech function for audible telemetry
• 6.6V/2,100mAh Lithium Ferrite battery

Performance Benefits

• Real-time telemetry data on color display
• Intuitive touchscreen operation
• Pre-configured mixing for common setups
• Edit buttons for quick menu navigation
• Audible telemetry via speech function
• Earphone compatibility for telemetry alerts

Usage Notes

• Designed for RC aircraft (helicopters, airplanes, gliders, multicopters)
• Supports FASSTest26CH, FASSTest18CH, FASSTest12CH, T-FHSS, S-FHSS
• SD card required for updates (32MB - 32GB supported)
• Connect battery connector before first use
• Compatible with S.Bus2 telemetry sensors

Technical Specs

• Frequency: 2.4GHz band
• Protocols: FASSTest26CH / FASSTest18CH / FASSTest12CH / T-FHSS / S-FHSS
• Channels: 26 maximum
• Display: 4.3" HVGA full-color touchscreen LCD
• Power Supply: 7.5V FT2F2100BV2 LiFe battery
• RF Power Output: 100mW EIRP

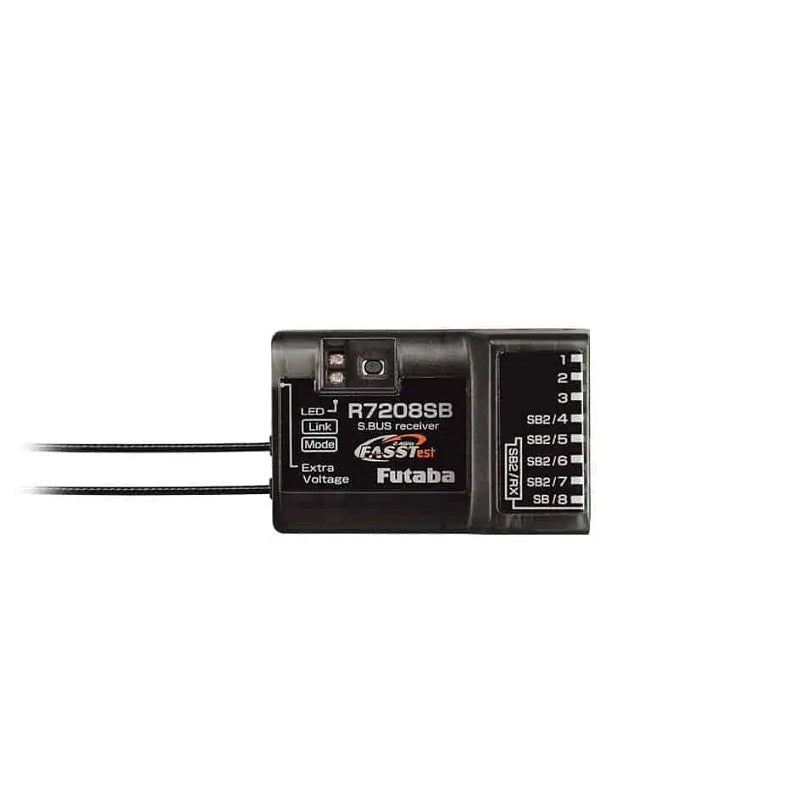

Included Receiver - R7208SB Specs

• Protocol: FASSTest
• Dimensions: 24.9 × 47.3 × 14.3 mm (0.98 × 1.86 × 0.56 in)
• Weight: 12.0 g (0.42 oz)
• Power Requirements: 7.4V LiPo Battery
• Current Drain: 75mA
• RF Power Output: 25mW EIRP

What's Included

• (1) Futaba T26SZ Transmitter (Air version with ratcheting throttle)
• (1) R7208SB Receiver
• (1) LT2F2000 Battery
• (1) Switch Harness
• (1) Mini Driver

Summary

• Flagship 26-channel FASSTest aircraft transmitter
• 4.3" full-color touchscreen with speech function
• S.Bus2 telemetry and comprehensive model support
• Includes R7208SB receiver and LiFe battery
• Ultimate system for serious RC pilots

Fitment

Compatible Scale: Universal

Compatible RC Vehicles: All RC
