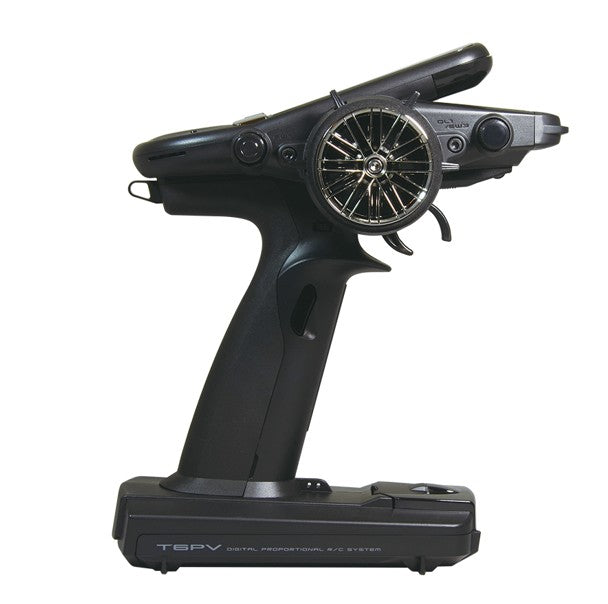

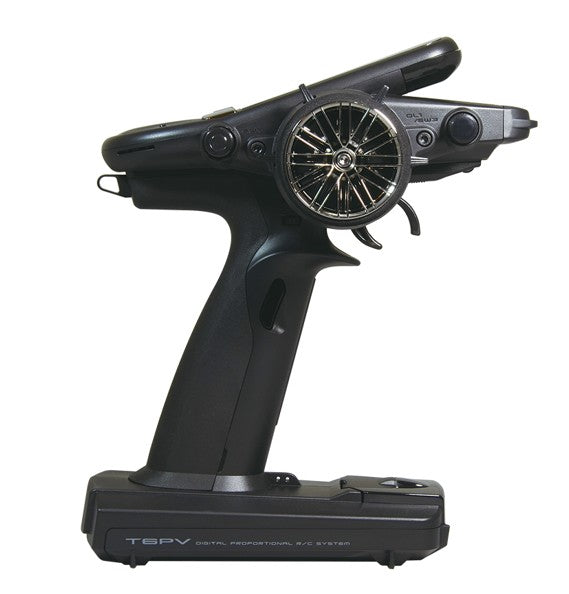

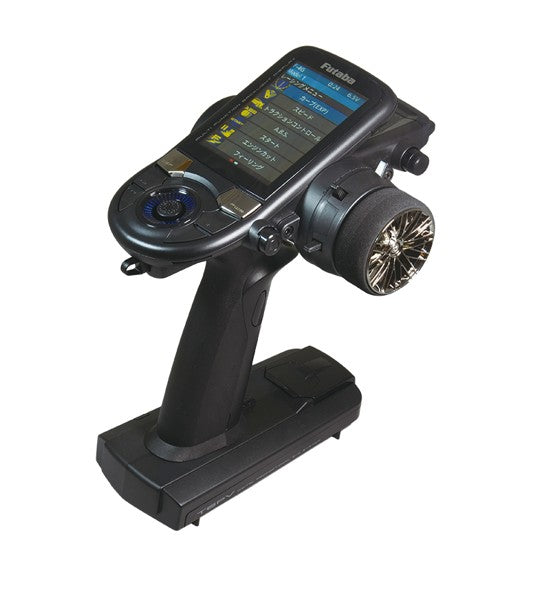

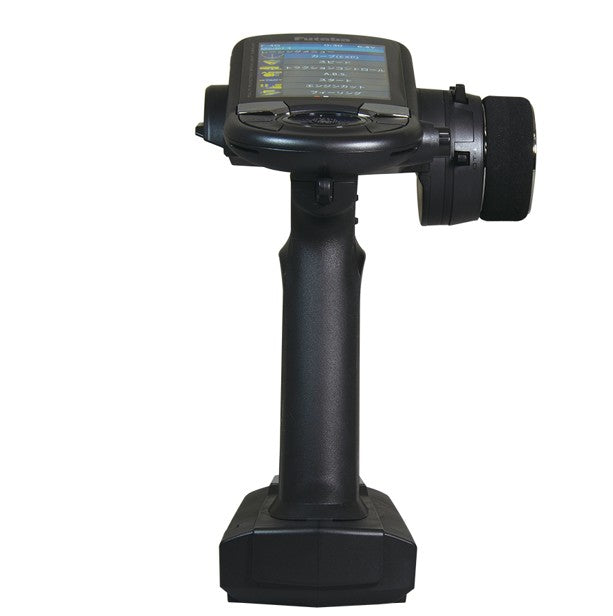

Futaba 6PV Transmitter – Ultra Response Digital Proportional RC System R404SBS-E 01004442-1 (ONLINE ORDER ONLY)

Overview

The Futaba 6PV (T6PV) represents the pinnacle of surface radio technology with its revolutionary F-4G system that delivers even faster response times than T-FHSS SR while maintaining full telemetry capability via S.Bus2. This high-performance 6-channel transmitter is engineered for drivers who demand the absolute fastest control response, advanced mixing, and deep customization for competitive racing, crawling, and large-scale vehicles.

Featuring a full-color backlit LCD with transflective technology for clear indoor/outdoor visibility, the 6PV provides intuitive access to its comprehensive feature set. With 40-model memory, wireless gyro adjustment, MC-Link ESC programming, and extensive mixing capabilities, this system handles everything from high-grip racing to technical rock crawling. The included R404SBS-E receiver delivers F-4G ultra-response performance in a compact, lightweight package.

Key Features

• F-4G system—faster than T-FHSS SR with telemetry
• Full-color backlit transflective LCD display
• 40-model memory with 15-character naming
• S.Bus2 telemetry and sensor support
• 4WS mixing for crawlers and specialty vehicles
• Dual ESC mixing (front/rear independent)
• Gyro mixing with sensitivity control
• Tank mixing capability
• CPS lighting mixing with CPS-1 power switch
• MC-Link ESC programming for compatible ESCs
• S.Bus servo parameter setting
• Built-in vibration motor for alerts
• MicroSD slot for data/software updates
• USB port for PC game controller use

Performance Benefits

• Industry-leading response times with F-4G
• Real-time telemetry in ultra-fast mode
• Throttle speed control for smoother acceleration
• Steering speed control for taming servos
• ABS braking configuration
• Extensive dial and switch customization
• Left-hand compatible (reversible wheel)

Usage Notes

• Designed for surface RC vehicles (racing, crawling, large-scale)
• Supports F-4G, T-FHSS SR, T-FHSS, and S-FHSS protocols
• Compatible with T-FHSS Mini-Z system (requires RA-42 receiver)
• MC-Link requires compatible Futaba ESCs
• Supports optional LiPo or LiFe transmitter batteries

Technical Specs

• Frequency: 2.4GHz
• Protocols: F-4G / T-FHSS SR / T-FHSS / S-FHSS
• Channels: 6 (via S.Bus2)
• Model Memory: 40 models
• Display: 4.3" full-color HVGA transflective LCD
• RF Output: 100mW EIRP or less
• Power Options: LiPo NLF2F2000B (7.4V) or LiFe FT2F1700BV2 (6.6V)
• Current Draw: ?350mA (T-FHSS, vibration off, backlight on)
• Antenna: 1/2? dipole

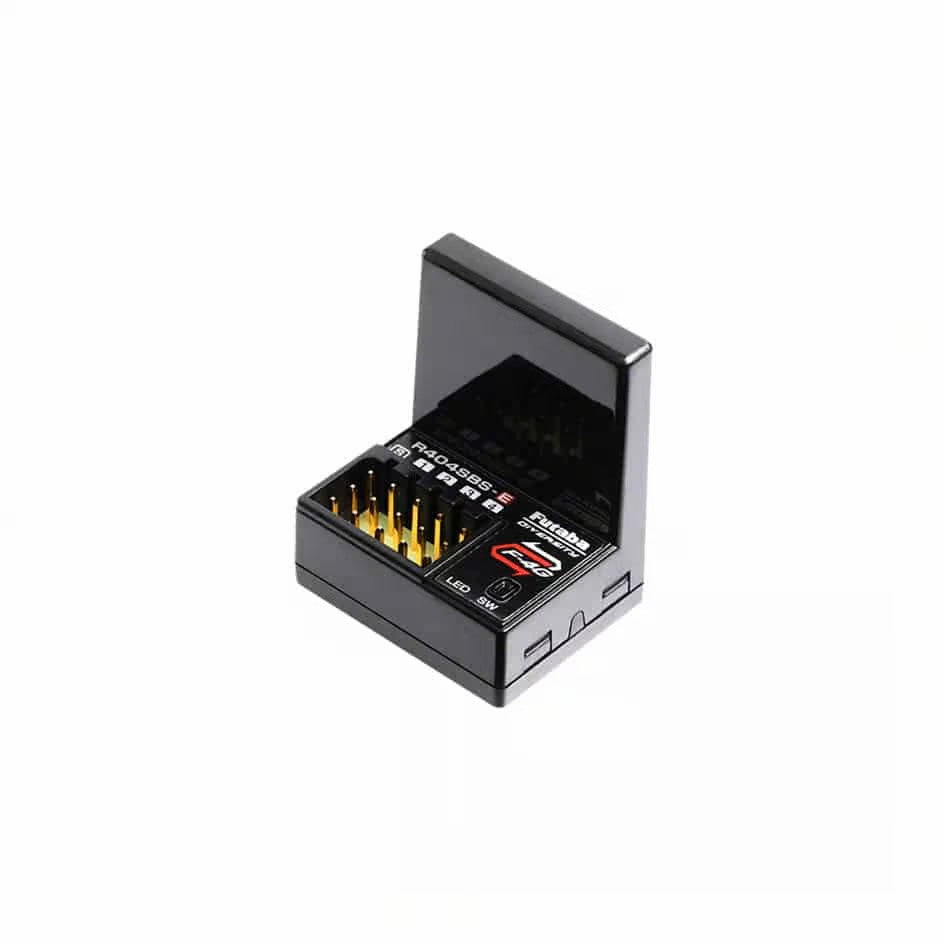

Included Receiver - R404SBS-E Specs

• System: F-4G
• Dimensions: 25.5 × 20.7 × 10.6 mm (1.00 × 0.81 × 0.42 in)
• Weight: 5.7 g (0.2 oz)
• Operating Voltage: DC 3.7V - 7.4V

What's Included

• (1) T6PV Transmitter
• (1) R404SBS-E Receiver
• (1) Dry battery holder
• (2) Wheel offset adapters (APA, two sizes)
• APA mounting screws (plus spares)
• (1) 32-degree wheel adapter
• (1) 5-degree wheel angle spacer
• (1) Large-diameter steering wheel
• (2) Trigger guards (Left and Right)
• (1) Rubber grip
• (2) Blind paddles
• (1) Hex wrench
• (1) Short manual

Summary

• Ultimate F-4G ultra-response radio system with telemetry
• 6-channel with full-color LCD and 40-model memory
• Advanced mixing for racing, crawling, and large-scale
• Includes compact R404SBS-E F-4G receiver
• The most advanced Futaba surface system available

Fitment

Compatible Scale: Universal

Compatible RC Vehicles: All RC
