Gearbox 3D Wood Model Kit

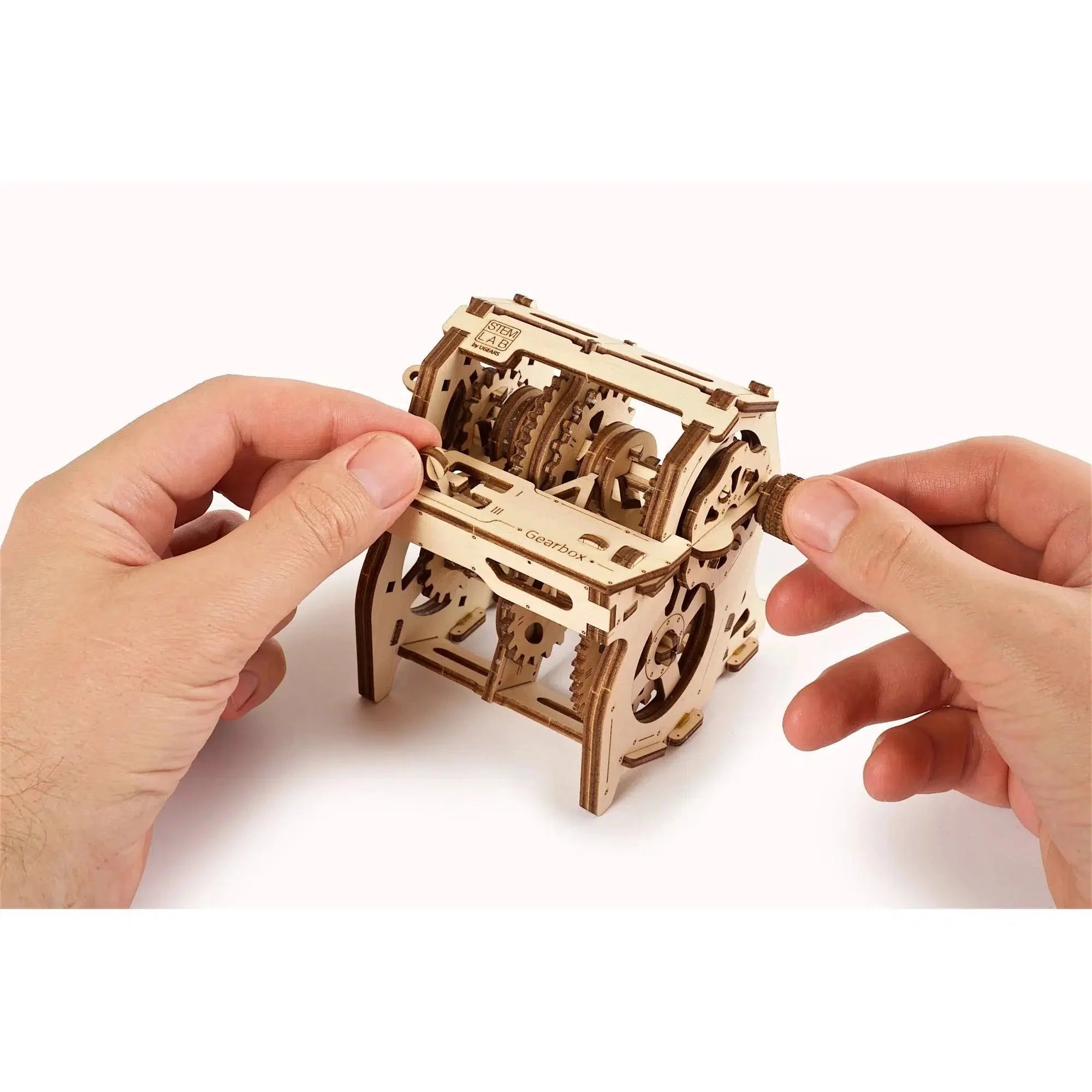

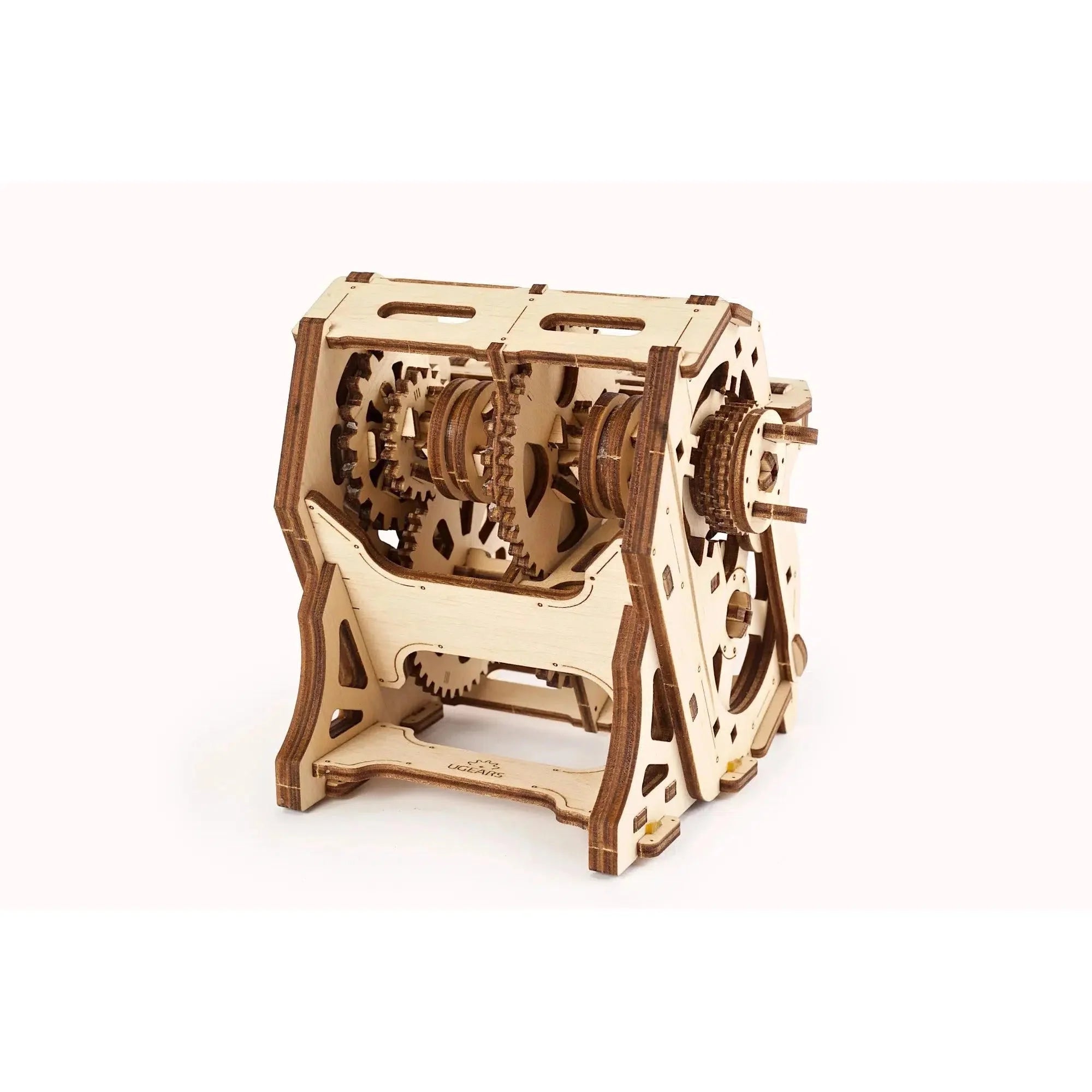

The Gearbox is a stylized educational model, an interactive study guide to the mechanism, only for learning its essentials and principles of working. A mechanical gearbox is a reducer that provides speed and torque conversions from a motor to the driving wheels. After assembly, you can experiment with the Ugears manual Gearbox, by turns, choose I, II, III, or reverse with a kinematic pair of gears with different ratios and, rotating the actuator handle clock-wise, you can watch and control the rotation speed of the layshaft and drive shaft. In a Position “N” – idle in which both clutch gears of layshaft remain uncoupled and idling; the First Gear makes the layshaft and gears rotate with the lowest speed; the Second Gear lets the drive shaft along with the flywheel rotate with an average speed and the Third Gear allows the layshaft and all gears rotate with the highest speed. Switch on the Reverse gear and see how the driving clutch gear moves to the left towards gear “R” and connects to it transferring the rotation to the lower gear arrangement and propelling the layshaft and all gears to rotate in reverse.

When and who invented it:

The invention of the gearbox belongs to the famous German engineer Karl Benz.

Usage:

A gearbox is mainly used in the automobile industry as a part of the car transmission mechanism that transfers torque from the engine's shaft to the wheels.

o Assemble it and discover the principle of working of the 4-speed Manual Gearbox.

o Experiment: the model comes with a Pocket Model’s Study Guide with a creation story and mechanism design as well as engaging and interesting tasks.

o Immerse yourself in Augmented Reality (AR), find out how the Gearbox is used in a car, and interact with it via the dedicated Ugears AR-application.

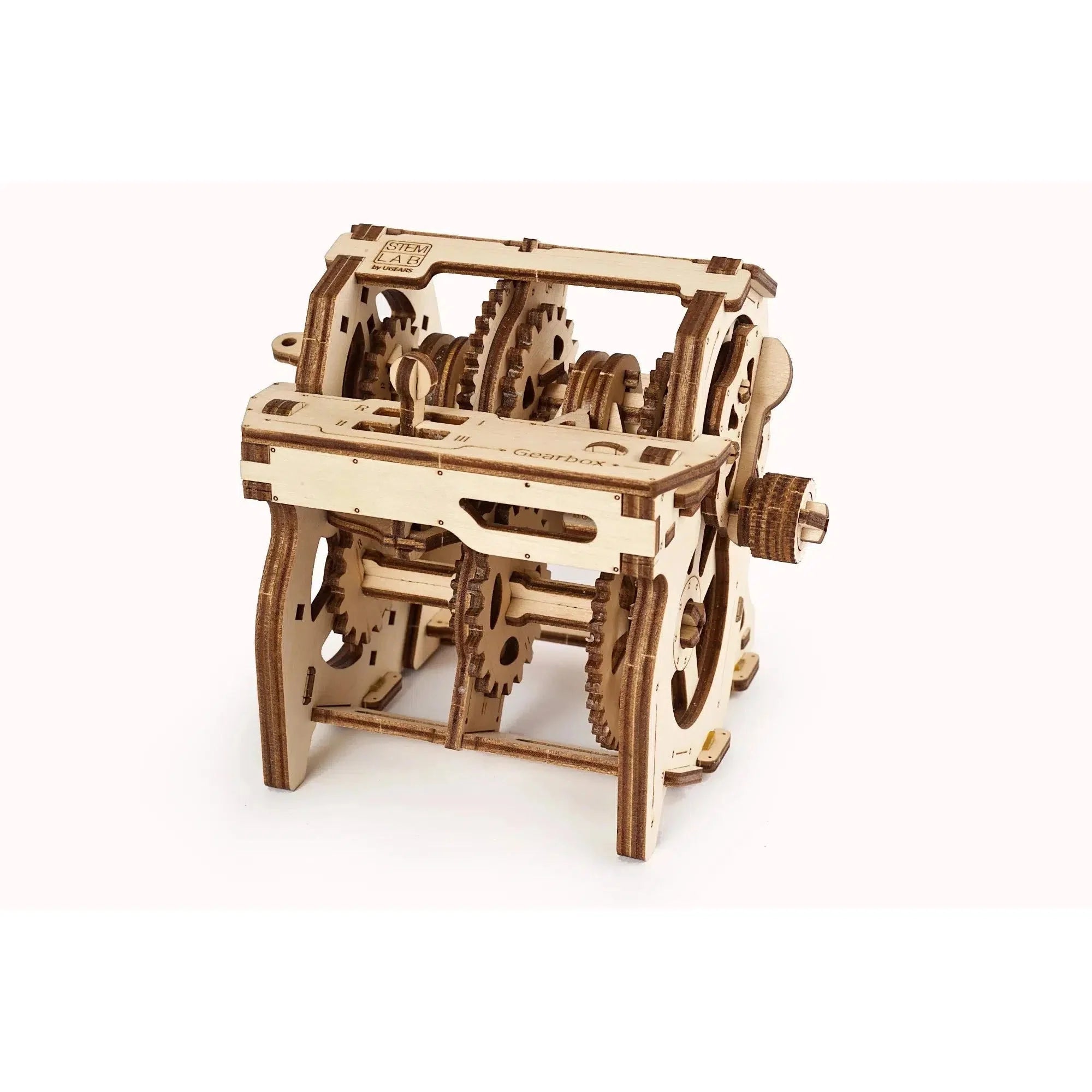

The mechanism of the Gearbox is composed of:

Gear shifting lever
Layshaft with gear couplings
Reverse idle gear bearing
Drive shaft
Actuator handle

Self-assembly from the parts, pulled out from wooden boards, according to easy-to-follow manual instruction. No glue or cutting needed

Model Size: 5.1 x 3.9 x 4.3 in
Package size: 8.1 x 7.4 x 2.5 in
Number of parts: 120
Level: Easy
Assembly Time: 2 hours
Recommended Age: 8+
Kit weight: 1.09 lbs

UGEARS is a 2014 Ukrainian startup with a growing worldwide reputation for producing unique, self-propelled, wooden mechanical DIY models, puzzle boxes and educational toys. Each UGEARS model has its own mechanical action that will amaze and delight.

UGEARS model kits come with everything you need for assembly. All parts are laser pre-cut into a high-quality plywood board for easy removal and assembly. Motion is accomplished using rubber bands, gears and gravity. Detailed color diagrams and step-by-step instructions are provided in 11 languages to guide you through the assembly process. No glue, special expertise, tools or equipment are required. Customer service is available 24/7, with spare parts provided and shipped free of charge.

UGEARS models are works of art, marvels of mechanical engineering, and surefire conversation starters. Most models have real world analogues, others are imagination brought to life. These eye-catching beauties are ideal for display in the home or office, but they are so much more! Each UGEARS model and puzzle box has its own unique and enchanting mechanical action, to delight your family and friends. Constructors will find satisfaction in bringing the models into being with their own hands, experiencing the magical moment of "birth" when the model shows the first spark of life.

UGEARS models and 3D puzzles make the beautiful world of mechanics more comprehensible. You will be able to touch every piece, every gear cog, and discover first-hand the workings of simple machines. Experience the thrill of self-propelled mechanical action that doesn't come from an electric socket or battery. Take a voyage to a previous century, to an age of elegant machines, fine detail and old-world craftsmanship, and rediscover the pleasure of understanding how things work.

UGEARS make a wonderful hobby for constructors, and a thoughtful gift for just about anyone in your life. Our mechanical models and puzzle boxes come in three skill levels: EASY, MEDIUM and ADVANCED. Warning: our beautiful, timeless machines and mechanical puzzles can be addictive, and you may find your collection growing as you move on to more challenging builds! UGEARS products require no glue, but we like to say there will be bonding—the bonding of family and friends working together to bring these mechanical marvels to life.
