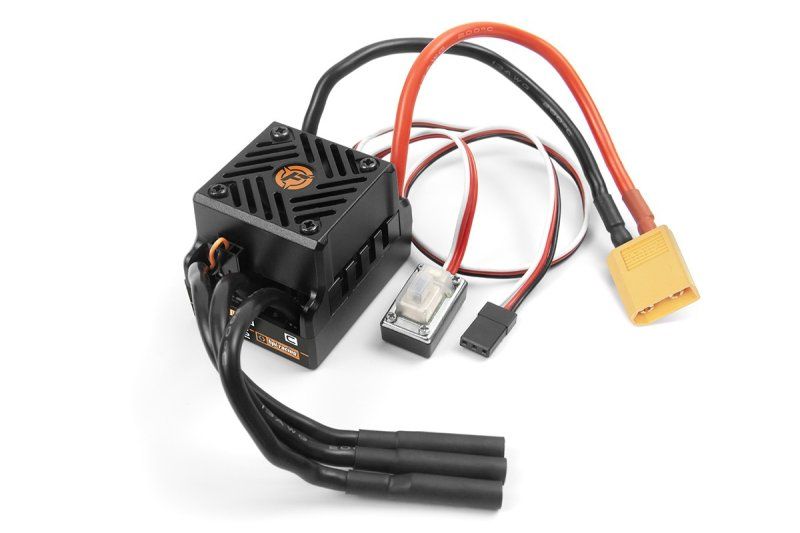

HPI Racing FLX-10 3S802 Flux ESC with XT-60 160942 (ONLINE ORDER ONLY)

Overview

The HPI Racing FLX-10 3S802 Flux ESC is a high-performance, waterproof sensorless brushless electronic speed controller designed for 1/10 scale RC vehicles. Capable of delivering up to 80A continuous current, it provides strong, reliable power for aggressive driving on-road and off-road, while maintaining smooth throttle control and dependable protection features.

Pre-wired with an XT-60 battery connector, it's ready for easy installation and is a perfect match for popular 1/10 brushless motors.

Key Features

• Sensorless brushless ESC
• Designed for 1/10 scale vehicles
• 2-3S LiPo compatible
• 80A continuous current output
• XT-60 battery connector pre-installed
• 4.0mm bullet motor connectors
• Built-in cooling fan under protective shroud
• Over-temperature and low-voltage protection
• Programmable with Hobbywing LED Program Card
• Compact, durable, water-resistant design

Performance Benefits

• Strong, smooth power delivery for buggies, trucks, SC, and touring
• Worry-free running through puddles, mud, and wet terrain
• Active fan cooling manages heat under hard driving
• Built-in safeguards protect motor and ESC during demanding use

Usage Notes

• Best RC Scale: 1/10 scale buggies, trucks, short-course, and touring cars
• Ideal for HPI 1/10 platforms and brushless conversions
• Verify motor KV against ESC limits before installation
• Programmable via Hobbywing-style LED program card (sold separately)

Technical Specs - ESC

• Brand: HPI Racing
• Model: FLX-10 3S802 Flux ESC
• ESC Type: Sensorless Brushless
• Input Voltage: 2-3S LiPo (7.4-11.1V)
• Continuous Current: 80A
• BEC Output: 6V Switching BEC, 3A
• Motor Limit (2S): up to 6000KV
• Motor Limit (3S): up to 3700KV
• Battery Connector: XT-60 (pre-installed)
• Motor Connector: 4.0mm bullet
• Dimensions: 46 x 36.5 x 35.5 mm
• Waterproof: Yes (water-resistant)
• Part Number: 160942

What's Included

• (1) HPI Racing FLX-10 3S802 Flux ESC with XT-60
• Integrated cooling fan and wiring

Summary

A waterproof 80A brushless ESC for 1/10 scale on- and off-road - smooth power, robust protection, and easy XT-60 installation in genuine HPI quality.
