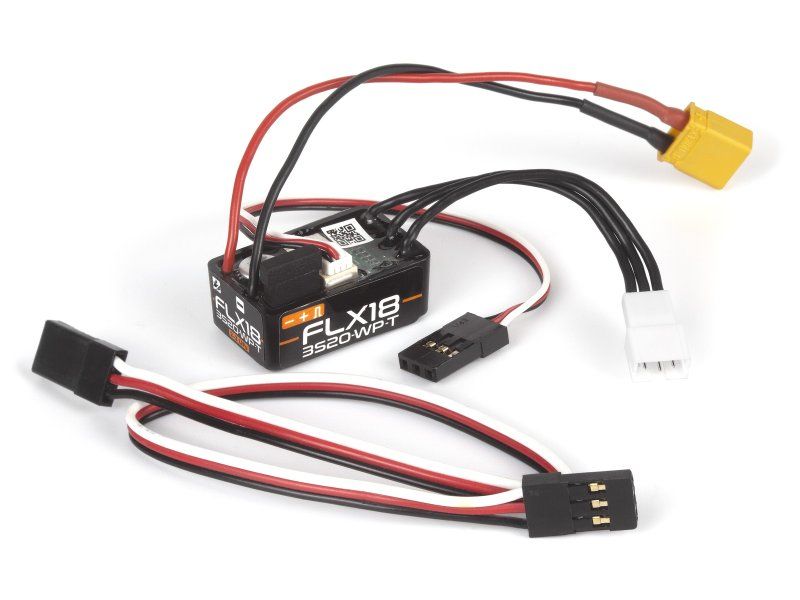

HPI Racing FLX18-3S20-WP-T Flux ESC with XT-30 160967 (ONLINE ORDER ONLY)

Overview

The HPI Racing FLX18-3S20-WP-T is a compact, waterproof brushless electronic speed controller engineered specifically for 1/18 scale trail trucks and rock crawlers. With smooth low-speed throttle modulation, strong drag-brake performance, and all-weather sealing, it delivers the precise control crawler drivers demand in any conditions.

Pre-wired with an XT-30 battery connector for tidy installation in tight chassis layouts, this Trail (-T) version supports both Forward/Reverse crawler mode and Forward/Brake/Reverse trail mode, switchable via auxiliary channel on compatible radios.

Key Features

• Fully waterproof brushless ESC for all-weather running
• Optimized for 1/18 scale trail trucks and crawlers
• 2-3S LiPo input compatibility
• Pre-installed XT-30 battery connector
• Selectable Crawler (F/R) and Trail (F/B/R) modes
• Smooth low-speed throttle control
• Adjustable drag-brake for confident hill descent
• Ultra-compact, lightweight package

Performance Benefits

• Precise, predictable crawling performance on technical lines
• Worry-free operation through mud, wet grass, and shallow water
• On-the-fly mode switching without reprogramming
• Reliable BEC output powers servo and receiver cleanly

Usage Notes

• Best RC Scale: 1/18 scale crawlers and trail trucks (ideal for HPI Venture18 FLUX)
• Also suitable for other 1/18 sensorless brushless crawler platforms
• Adjustable using a Hobbywing-style LED program card (sold separately)
• Verify motor compatibility before installation

Technical Specs - ESC

• Brand: HPI Racing
• Model: FLX18-3S20-WP-T
• ESC Type: Brushless, sensorless
• Waterproof: Yes
• Battery Input: 2-3S LiPo
• Continuous Current: 20A
• Peak Current: 50A
• BEC Output: 6V / 1.5A
• Battery Connector: XT-30 (pre-installed)
• Dimensions: 28 x 18 x 13mm
• Weight: Approx. 13.5g
• Part Number: 160967

What's Included

• (1) HPI Racing FLX18-3S20-WP-T Flux ESC with XT-30 connector

Summary

The FLX18-3S20-WP-T is the ideal waterproof brushless ESC for 1/18 scale crawler and trail builds, delivering precise control, all-weather durability, and easy plug-and-play installation in genuine HPI quality.
