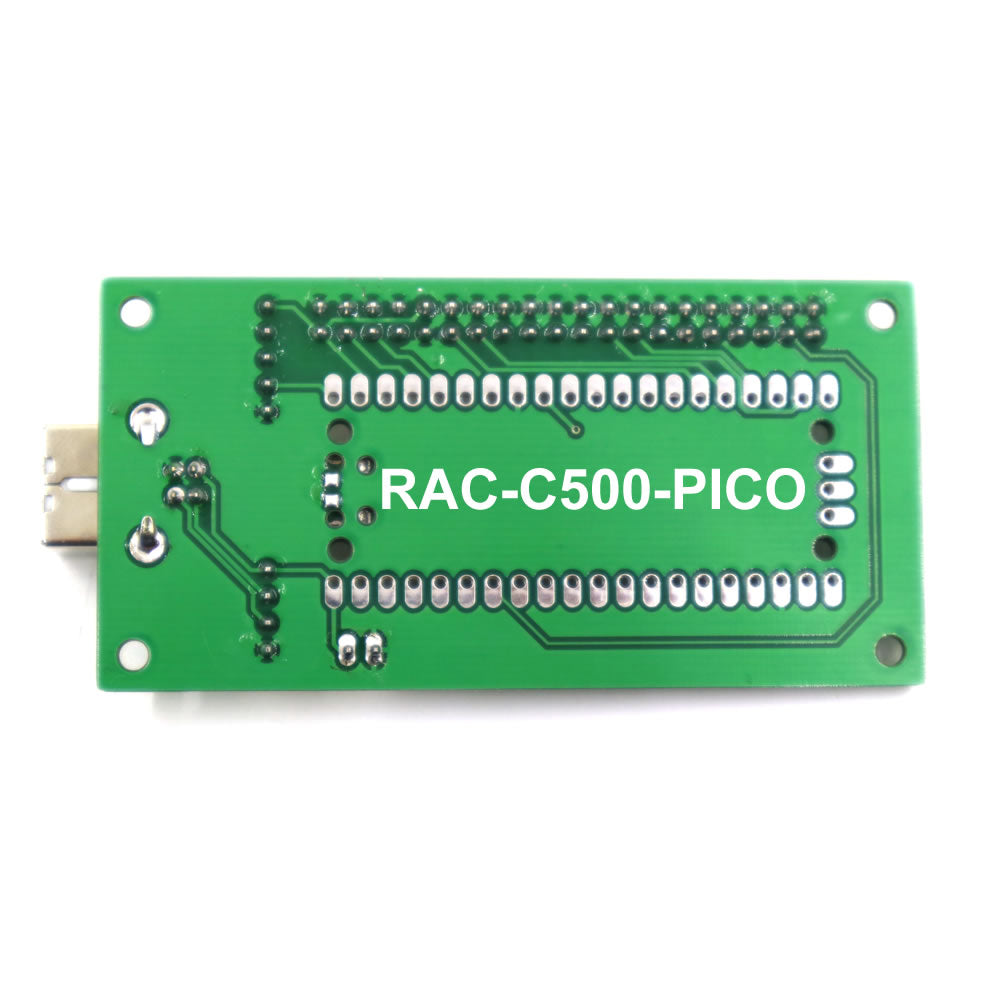

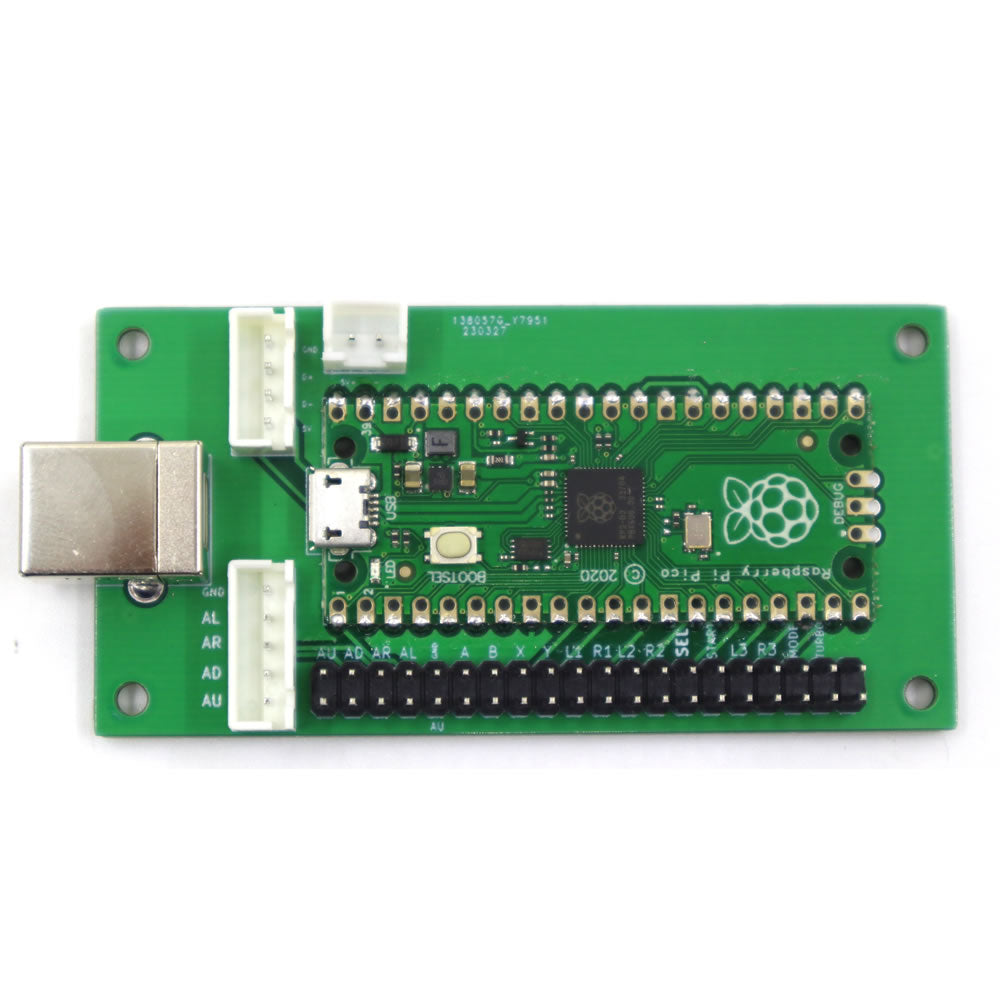

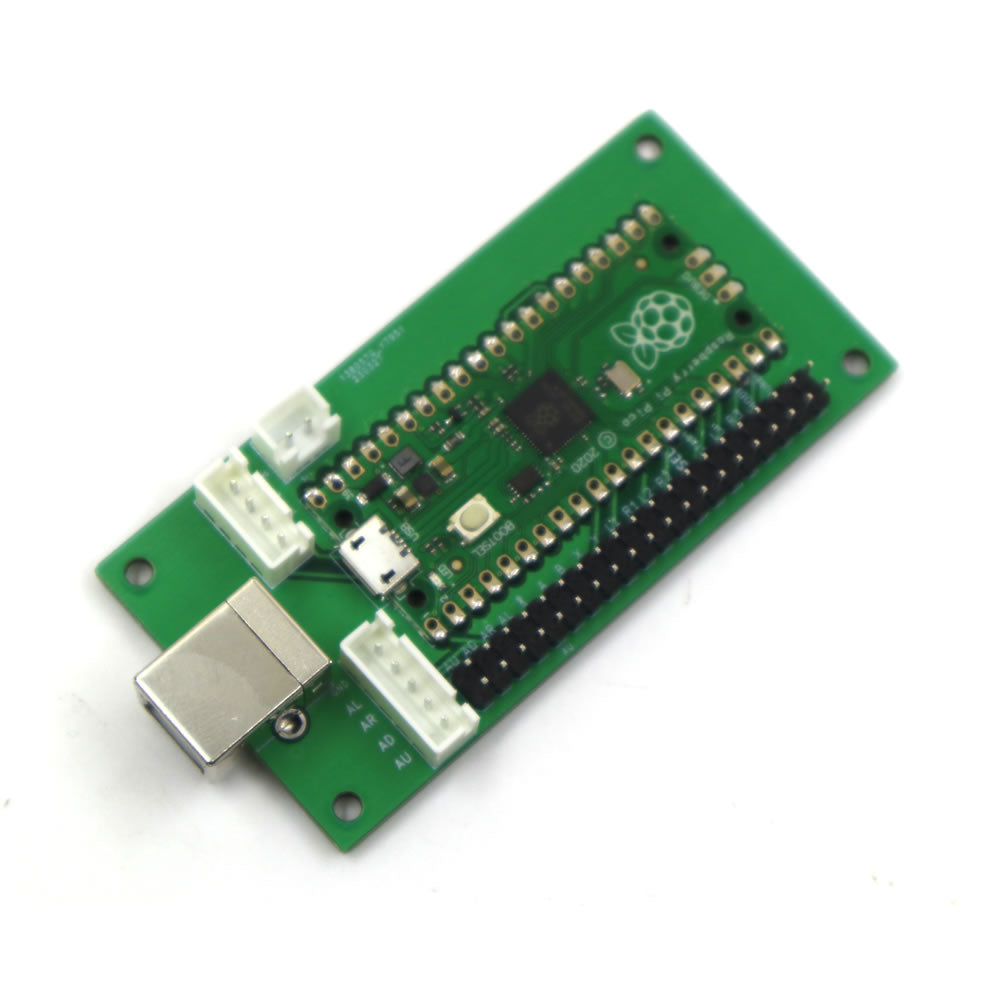

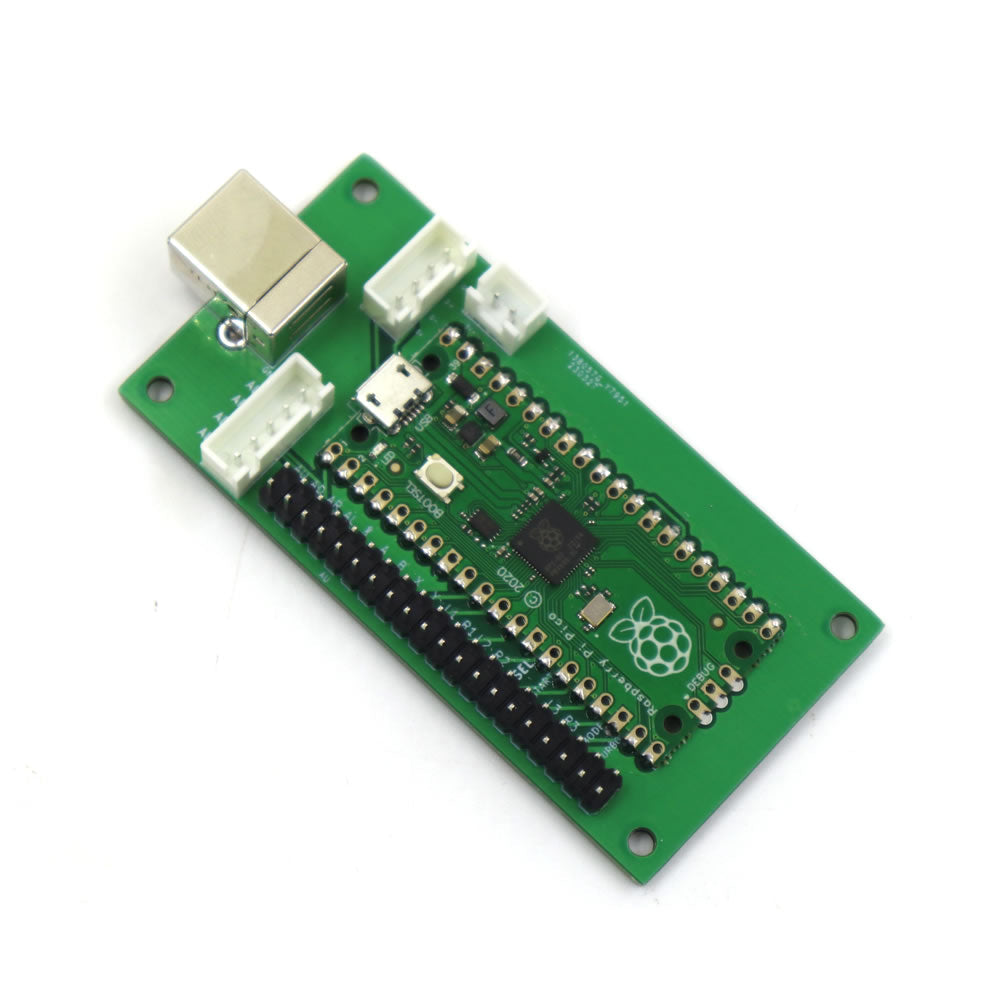

RAC-C500-PICO Raspberry Pi Pico Zero Delay Arcade Joystick Controller Board (Online Only)

Features:

The simple, practical and quick-connect PCB design, based on the latest Raspberry Pico, It is the best choice for your DIY arcade joystick project.

Input Mode

To select input mode, hold one of the following buttons when plugging in your controller:

• 1P - PS3/DInput
• 1K - Nintendo Switch
• 2k - PC/XInput

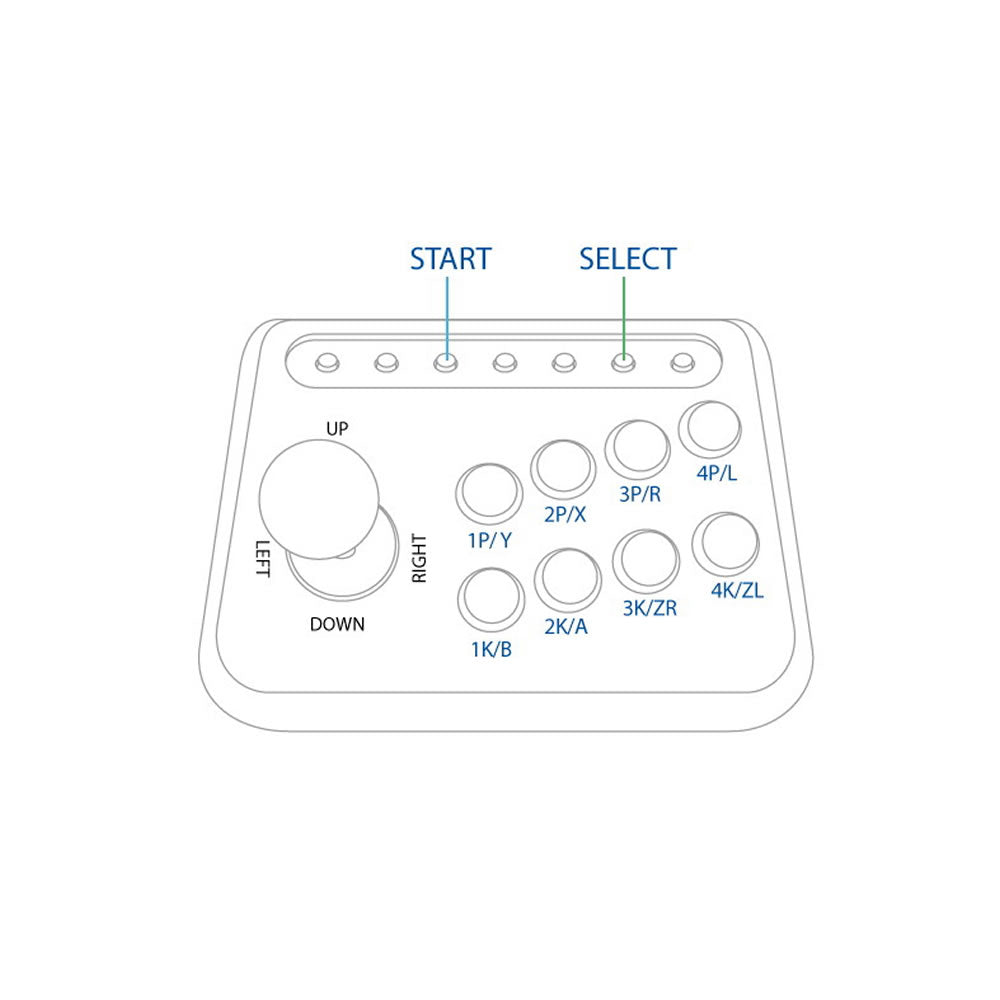

D-Pad Modes

To select the active d-pad mode,while the controller is plugged in press:

• SELECT + START + DOWN - Normal D-pad operation
• SELECT +START + LEFT - Left analog stick emulation
• SELECT + START + RIGHT - Right analog stick emulation

SOCD Modes

To select the active SOCD mode, while the contorller is plugged in press:

• HOME + START + DOWN - Neutral (U+D=N, L+R=N)
• HOME +START +UP - Up Priority (U + D =U, L+R=N)
• HOME + START+ LEFT - Last Input Priority

Turbo mode

Press and hold the TURBO button and press the button to set continuous shooting. After setting, you can cancel fast shooting by the same operation

Continuous sending can be set to 1P, 2P, 3P, 4P, 1K, 2K, 3K, 4K, 8 keys

The shooting speed can be adjusted within the range of 1 to 60 times per second (individual speed adjustment of each button is not supported)

Press and hold the TURBO button and press the UP key to increase the shooting speed, and press and hold the TURBO button and press the DOWN key to reduce the shooting speed

Even if the power is turned off, the set shooting speed will be saved in the previous state, but the state of the continuous firing button will be cleared

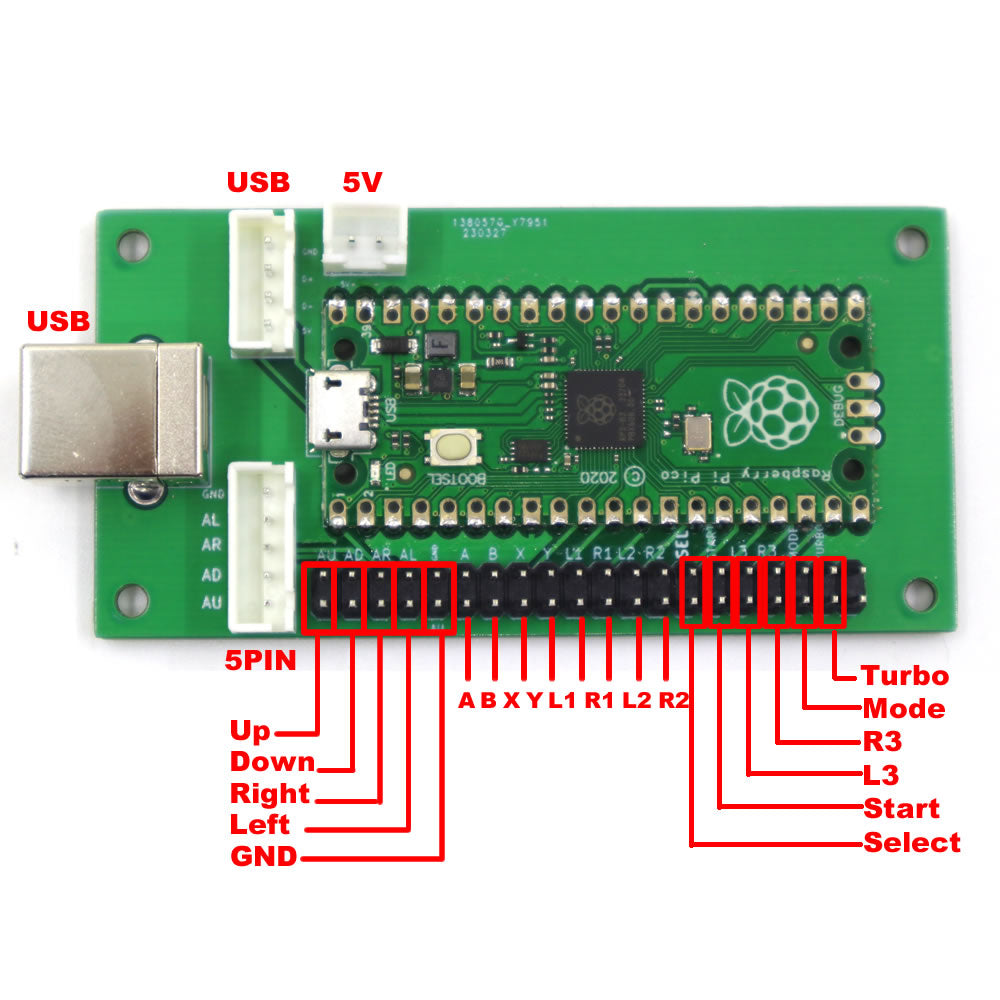

Specification:

Mainboard: Raspberry Pi Pico

Firmware: GP2040

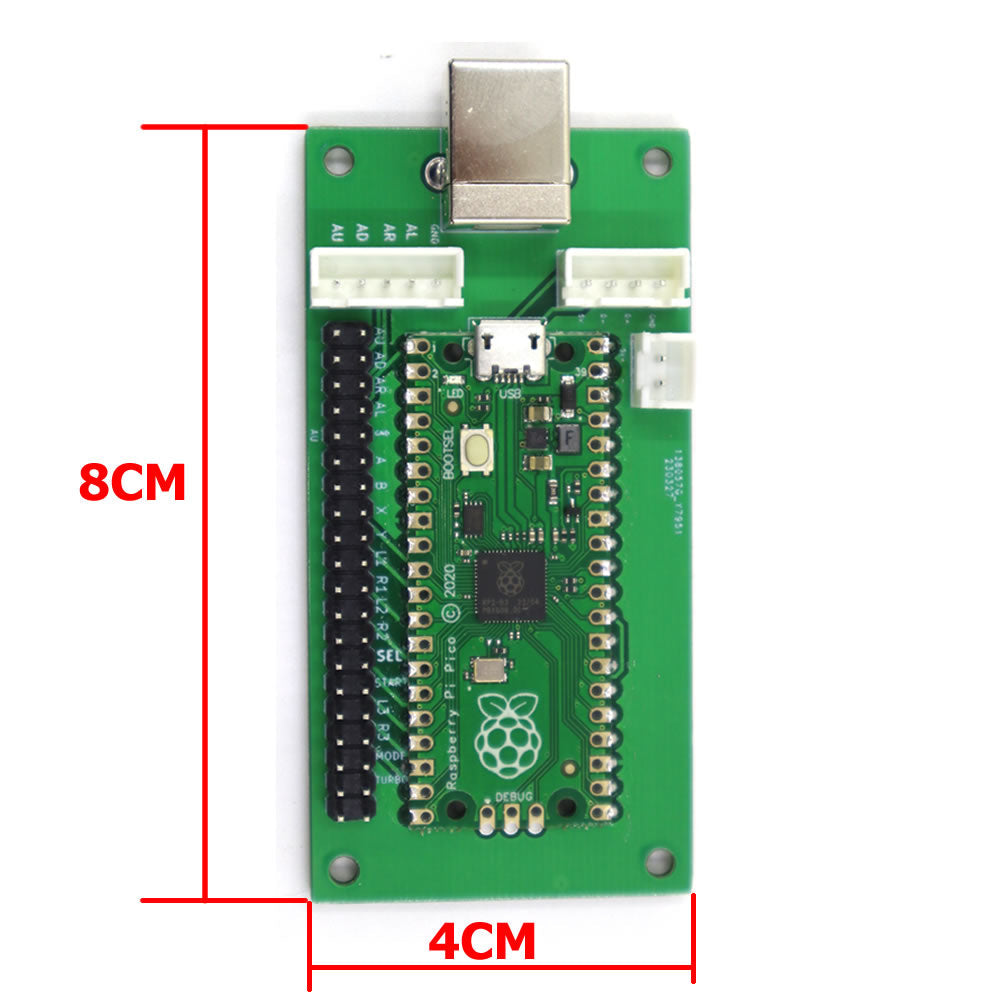

Size: 4*8cm

5V power supply socket: 1

USB 4PIN socket: 1

USB female header: 1

5PIN Joystick socked: 1

RGB LED and OLED functions are not supported.

Package Includes:

1 x RAC-C500-PICO Raspberry Pi Pico Zero Delay Arcade Joystick Controller Board Pico Fighting Board
