Overview

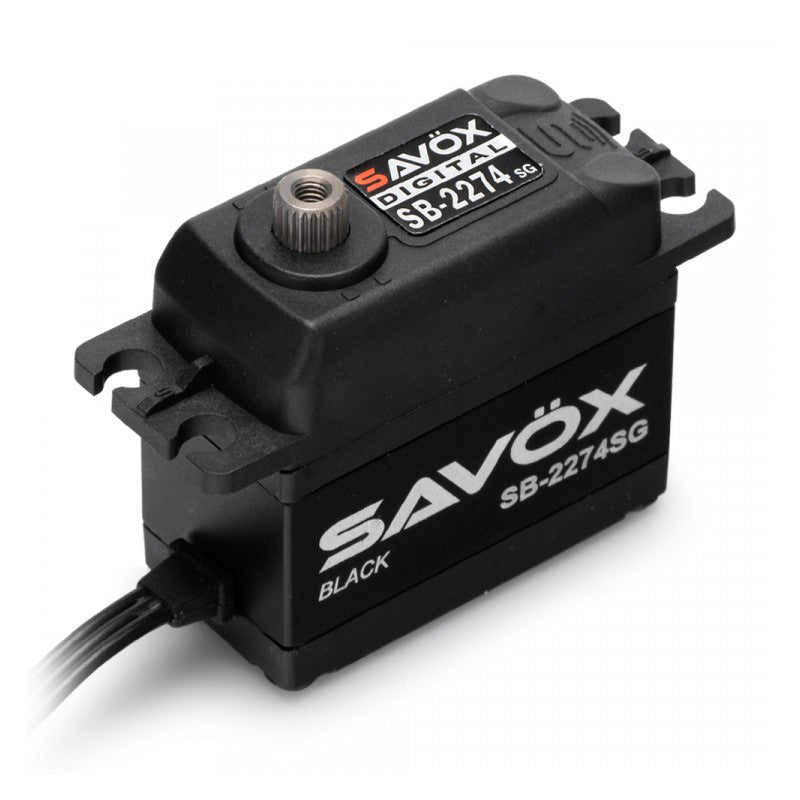

The Savox SB-2274SG-BE Black Edition high-voltage brushless digital servo combines leading-edge 12-bit (4096-step) resolution with a robust steel gear train and efficient brushless motor. It's engineered for 1/10 and 1/8 buggies, as well as large scale aircraft, where precise centering and strong torque output are equally important.

Brushless operation delivers longer service life, cooler running temperatures, and reduced current draw compared with brushed servos — a significant advantage in demanding race and sport applications.

Key Features

12-bit (4096-step) digital resolution
Unique steel gear train
Brushless motor for smooth, efficient operation
HV capable
Sleek Black Edition finish
Torque: 20 kg (277.7 oz) @ 6.0V · 25 kg (347.2 oz) @ 7.4V
Speed: 0.105 sec/60° @ 6.0V · 0.08 sec/60° @ 7.4V

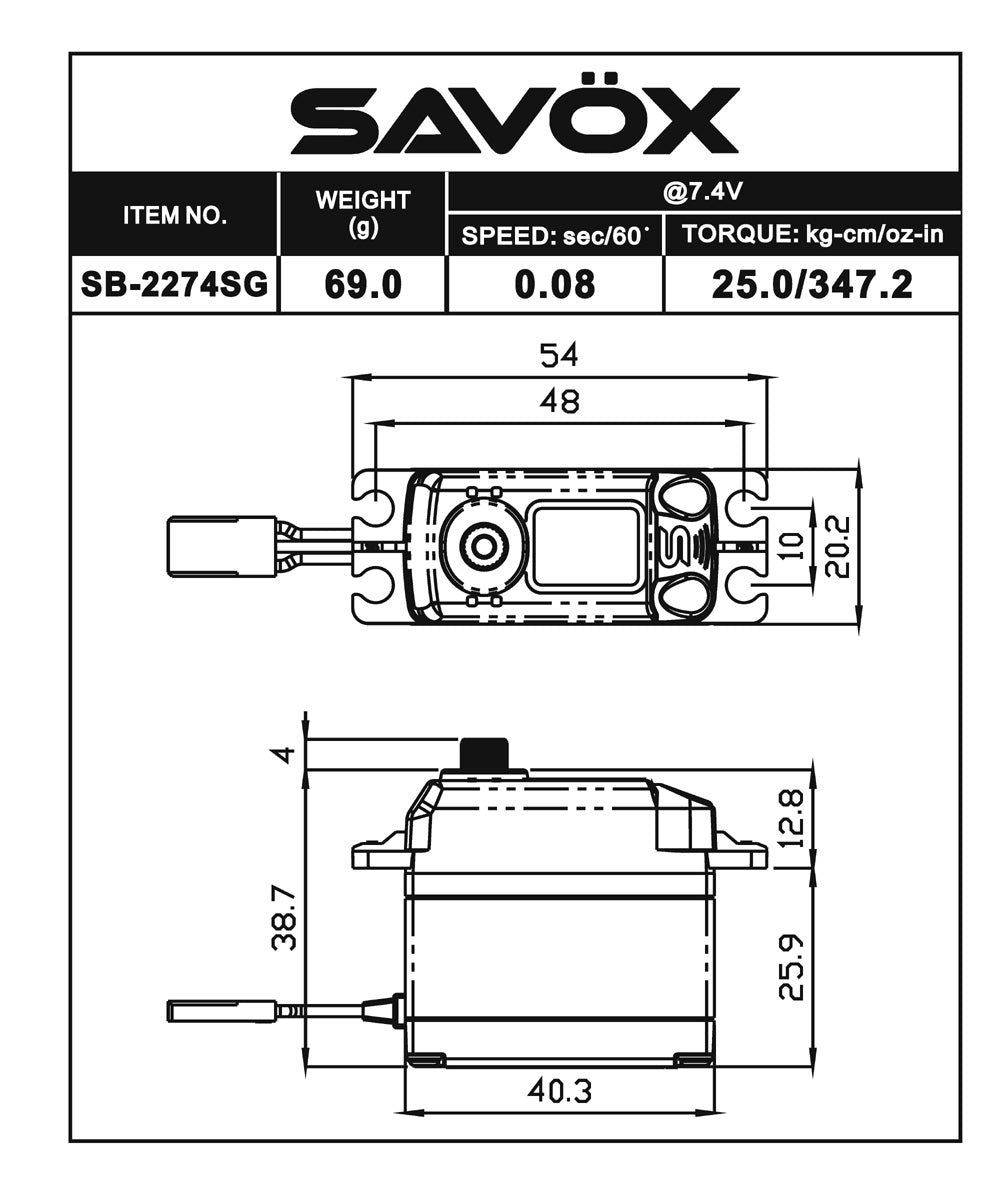

Dimensions: 40.3 × 20.2 × 38.7 mm · Weight: 69 g

Applications

1/10 and 1/8 scale buggies
1/8 truggies and short course
Large scale aircraft control surfaces
Performance builds requiring brushless efficiency

Scale Capability

The SB-2274SG-BE is versatile across 1/10 and 1/8 scale ground vehicles where its 347 oz torque rating and 0.08 sec transit time deliver race-grade performance. The brushless motor design also makes it a smart choice for large scale aircraft, where long runtime and consistent centering are mission-critical.
