Overview

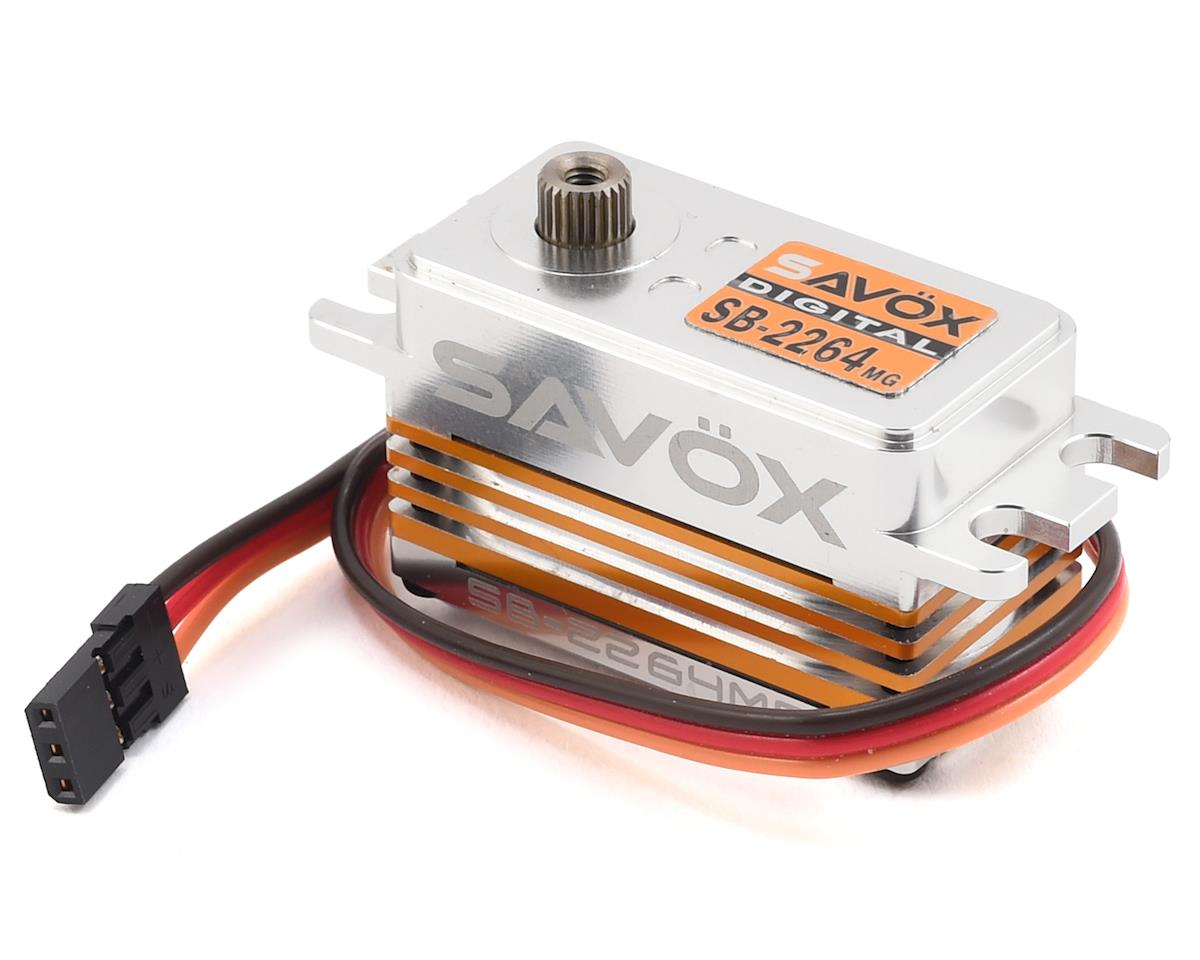

The Savox SB-2264MG is a low-profile, high-voltage brushless digital servo combining leading-edge 12-bit (4096-step) resolution with a steel gear train and full aluminum case. Its brushless motor design delivers longer life and cooler operating temperatures than comparable brushed servos — a real advantage for 1/10 on-road, 1/10 off-road, and helicopter applications.

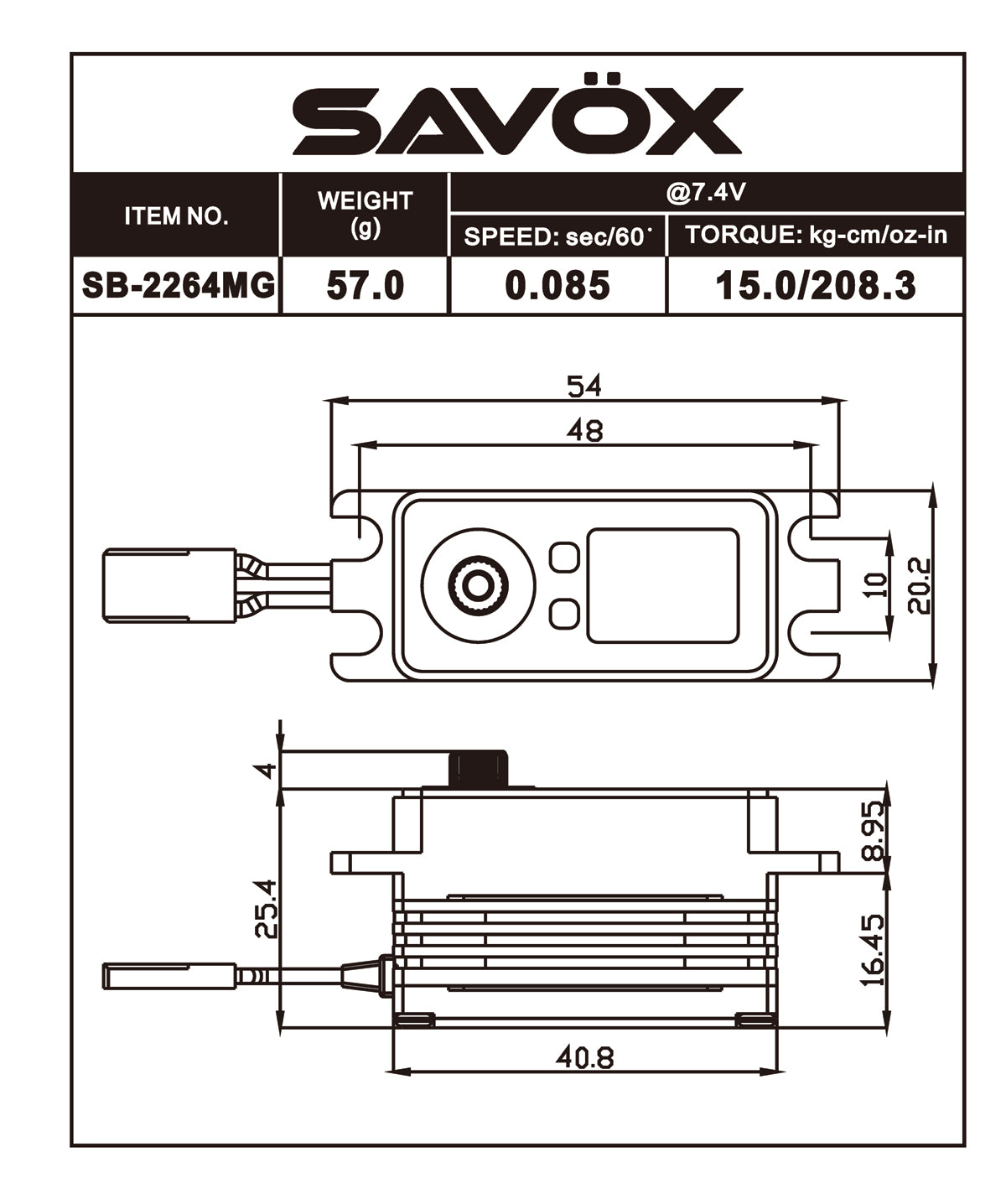

The low-profile form factor (25.4 mm height) fits cleanly in tight 1/10 chassis layouts while preserving the performance normally found in standard-height servos.

Key Features

Low-profile brushless digital servo
12-bit (4096-step) digital resolution
Unique steel gears
Full aluminum case
Brushless motor — longer life, cooler temperatures
HV capable
Torque: 12 kg (166.8 oz) @ 6.0V · 15 kg (208.3 oz) @ 7.4V
Speed: 0.11 sec/60° @ 6.0V · 0.085 sec/60° @ 7.4V · 57 g

Applications

1/10 on-road and touring cars
1/10 off-road buggies and trucks
Helicopter steering and cyclic applications
Low-profile chassis where height is constrained

Scale Capability

The SB-2264MG is engineered specifically for 1/10 scale applications where low-profile fitment is required. Its brushless motor delivers consistent performance across both on-road and off-road disciplines, while 12-bit digital resolution ensures precise, repeatable centering for racing conditions.
