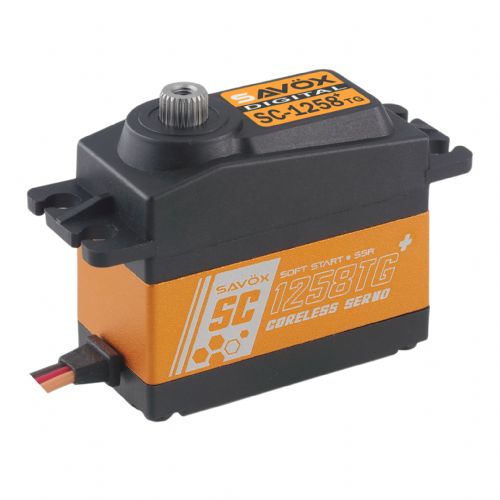

Savox 1/10 Standard Size Coreless Digital Servo Soft Start 6V (ONLINE ORDER ONLY)

Overview

The Savox SC1258TGP Plus is a high-speed standard-size titanium-gear coreless digital servo engineered for premium applications. Combining leading-edge technology with ultra-high 12-bit (4096) resolution, it delivers extraordinarily smooth operation and precise positioning that competitive racers demand.

Delivering 12.0 kg-cm (166.6 oz-in) of torque and a fast 0.08 sec/60° response at 6V, the SC1258TGP is ideal for 1/10 scale buggy steering and CCPM on 600 and 700 class helicopters.

Key Features

• Extremely strong titanium gears for long life and light weight
• Coreless motor for smooth, efficient operation
• 12-bit (4096) resolution for precision positioning
• Aluminum middle case for cooler running
• Soft Start and Sanwa SSR compatibility
• Standard case (40.3 x 20.2 x 37.2 mm, 64g)

Performance Benefits

• Ultra-precise 12-bit resolution
• Lightweight titanium gear strength
• Smooth coreless operation
• Sanwa SSR compatibility

Usage Notes

• Ideal for 1/10 scale buggy steering
• Excellent for CCPM on 600 and 700 class RC helicopters
• Perfect for precision control applications
• Recommended for performance RC builds

Technical Specs

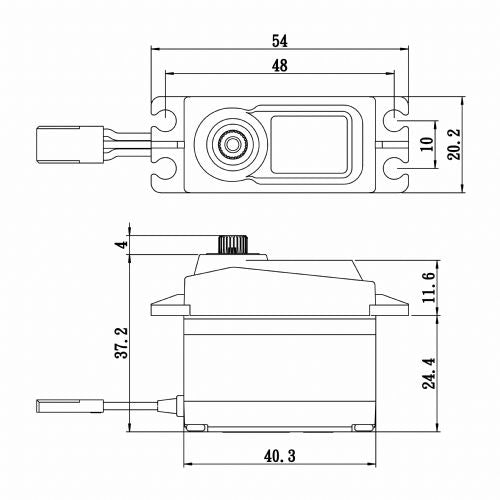

• Dimensions: 40.3 x 20.2 x 37.2 mm
• Weight: 64g
• Speed @ 6V: 0.08 sec/60°
• Torque @ 6V: 12.0 kg-cm (166.6 oz-in)
• Motor Type: Coreless
• Gear Type: Titanium
• Resolution: 12-bit (4096)
• Special Features: Soft Start, SSR Compatible

What's Included

• (1) Savox SC1258TGP Plus Titanium-Gear Coreless Digital Servo
• Servo horn hardware

Summary

The Savox SC1258TGP Plus delivers 12-bit high-resolution precision with titanium gears. Premium Savox performance for 1/10 buggies and CCPM helicopters.
