Overview

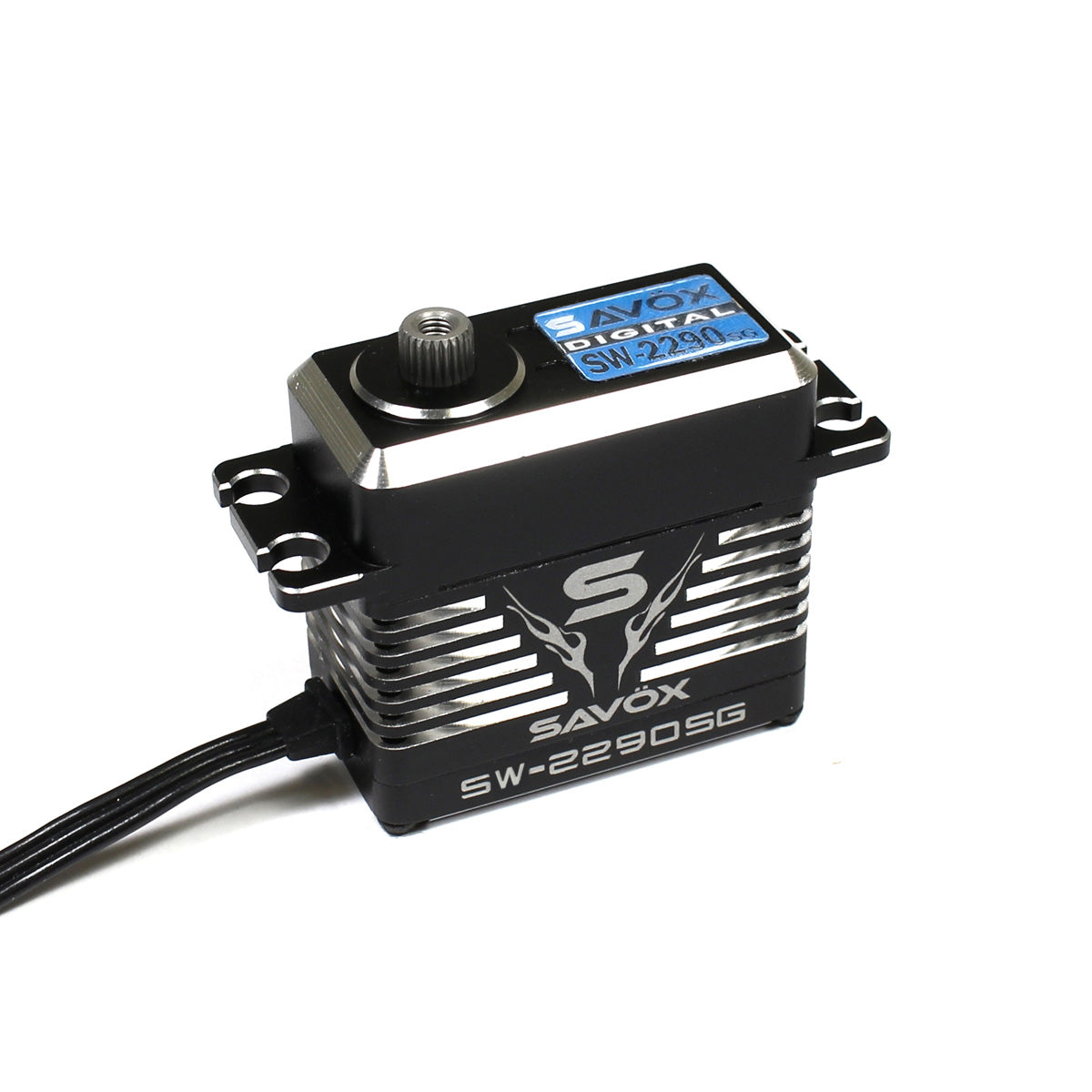

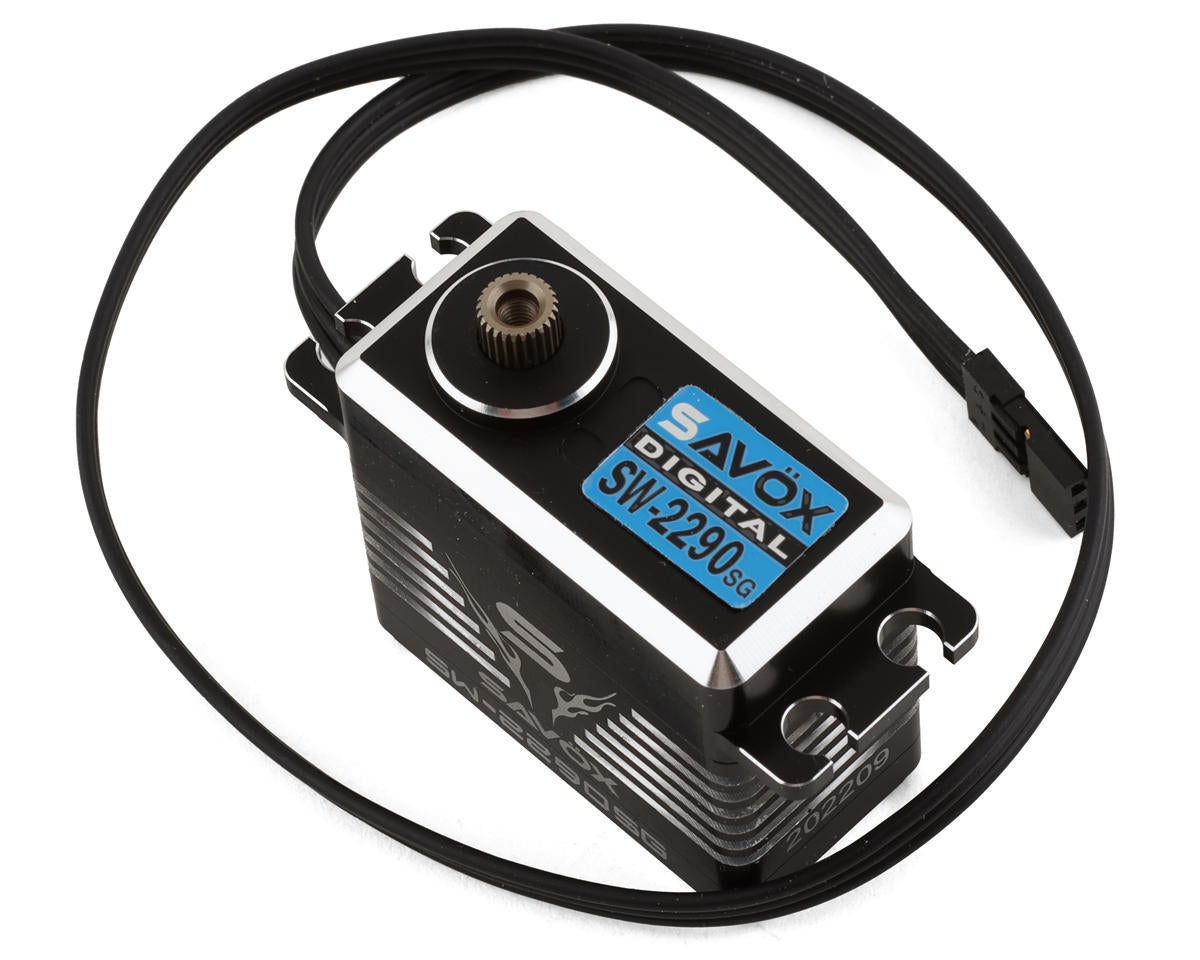

The Savox SW2290SG-BE Black Edition is the flagship of Savox's "Monster" performance series — a full aluminum case, IP67 waterproof, high-voltage brushless digital servo that boosts power up to 35% over the previous generation. With up to 70 kg (972 oz-in) of torque at 8.4V, it's a serious steering upgrade for 1/10 scale crawlers, monster trucks, and 1/8 applications.

Unique brushless motor and controller technology, precision steel gears, triple ball bearings, and IP67 waterproof construction deliver race-grade performance and reliability in any environment.

Key Features

Monster series brushless digital servo
IP67 waterproof construction
Full aluminum case
Triple precision ball bearings
Unique steel gear train
HV 6.0 – 8.4V operation
Torque 45 kg (625 oz) @ 6V · 55 kg (764 oz) @ 7.4V · 70 kg (972 oz) @ 8.4V
Speed 0.16 sec @ 6V · 0.13 sec @ 7.4V · 0.11 sec @ 8.4V

Applications

1/10 scale crawlers and monster trucks
1/8 scale buggies and truggies
High-torque steering upgrades
HV-powered performance and race builds

Scale Capability

The SW2290SG-BE is engineered for 1/10 scale vehicles demanding the absolute strongest steering servo available, and it scales up to 1/8 applications where its 972 oz torque rating delivers authoritative control over oversized tires and heavy chassis. IP67 waterproofing keeps it running in rain, mud, and river crossings.
