Savox 1/8 Scale High Voltage Brushless Digital Servo 7.4V (ONLINE ORDER ONLY)

Overview

The Savox SB2273SGP Plus is a high-voltage brushless digital servo built for 1/8 scale off-road and large-scale aircraft applications. Combining leading-edge technology with ultra-high 12-bit (4096) resolution, a unique steel gear train, and a brushless motor, it delivers refined, authoritative steering control.

At 7.4V the SB2273SGP produces 28 kg-cm (388.8 oz-in) of torque with a 0.095 sec/60° response, making it a benchmark choice for serious 1/8 scale competitors.

Key Features

• Brushless motor for smooth, efficient, long-life operation
• Unique steel gear train
• 12-bit (4096) resolution for precise positioning
• HV compatibility (7.4V)
• Soft Start and Sanwa SSR compatibility
• Standard case (40.3 x 20.2 x 38.7 mm, 69g)

Performance Benefits

• Race-grade torque and response
• Fade-free brushless performance
• High-resolution digital accuracy
• Durable steel gear construction

Usage Notes

• Ideal for 1/8 scale off-road buggies and trucks
• Excellent for large-scale RC aircraft
• Perfect for performance racing builds
• Recommended for HV LiPo-powered setups

Technical Specs

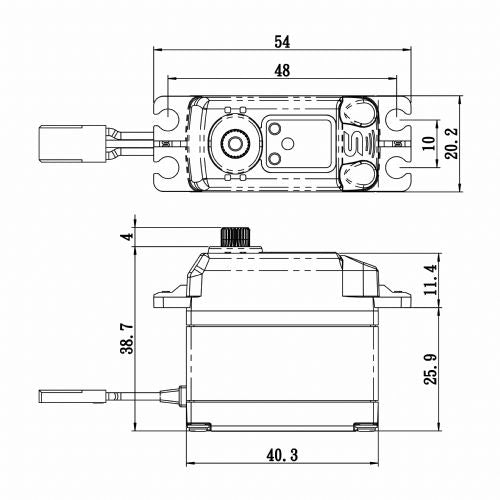

• Dimensions: 40.3 x 20.2 x 38.7 mm
• Weight: 69g
• Speed @ 7.4V: 0.095 sec/60°
• Torque @ 7.4V: 28 kg-cm (388.8 oz-in)
• Motor Type: Brushless
• Gear Type: Unique Steel
• Resolution: 12-bit (4096)
• Special Features: Soft Start, SSR Compatible

What's Included

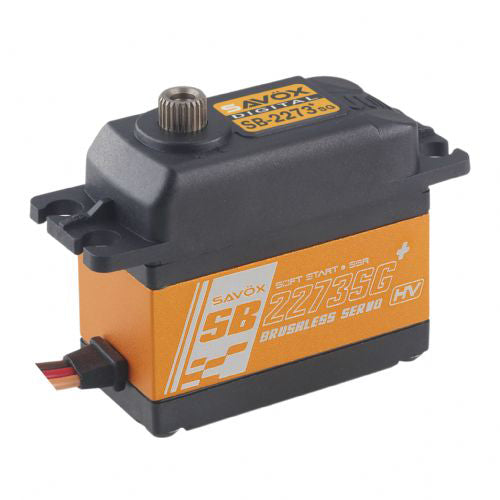

• (1) Savox SB2273SGP Plus HV Brushless Digital Servo
• Servo horn hardware

Summary

The Savox SB2273SGP Plus delivers 12-bit HV brushless precision with steel gears for 1/8 scale performance. Trusted Savox engineering for serious competitors.
