Overview

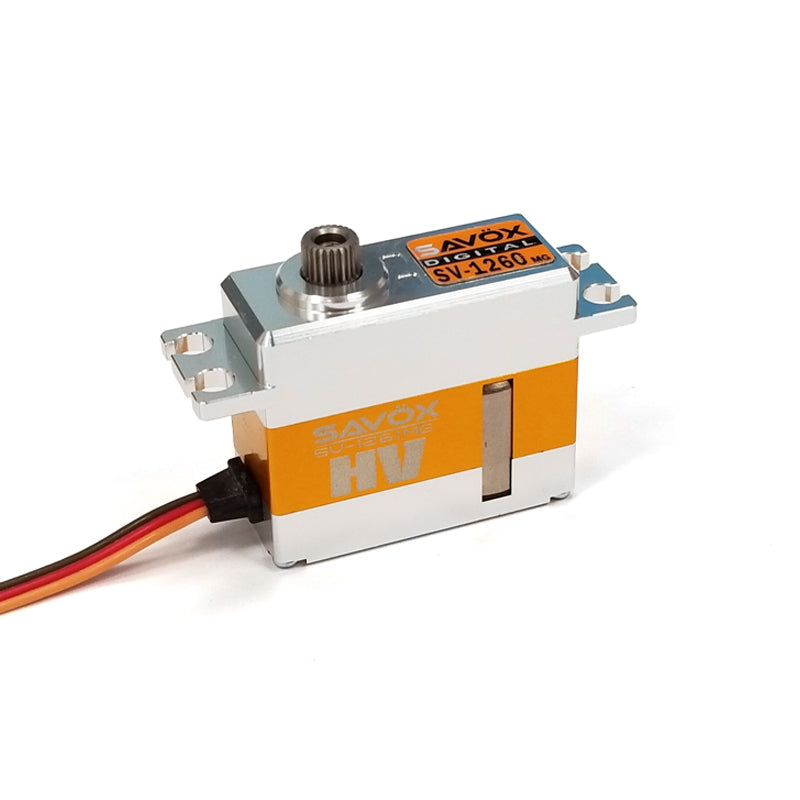

The Savox SV-1260MG is a mini-sized, high-voltage digital servo with a full aluminum case and metal gearset — one of the strongest and fastest mini servos available. It's specifically engineered for 250–450 class helicopter tail applications where tight centering, rapid correction, and heat-resistant construction are critical to stable flight.

An all-metal gear train resists the repetitive high-load cycles of helicopter tail service, while 2S LiPo compatibility unlocks peak performance from modern high-voltage power systems.

Key Features

Mini-size high-voltage digital servo
Full aluminum case for heat dissipation
Metal gear train for durability
HV (7.4V) capable
Purpose-built for 250–450 class heli tails
Torque 8 kg (111 oz) @ 6V · 12 kg (167 oz) @ 7.4V
Speed 0.065 sec @ 6V · 0.055 sec @ 7.4V
40 g · 35 × 15 × 30.7 mm

Applications

250–450 class electric helicopter tail rotor
Mini-size servo replacements on heli platforms
Aircraft control surfaces requiring fast response
HV-powered specialty RC applications

Scale Capability

The SV-1260MG is engineered specifically for 250–450 class electric helicopters where a mini form factor tail servo with fast response and tight centering is critical to flight stability. Aluminum case construction handles the repetitive loads of tail correction without heat buildup.
