Overview

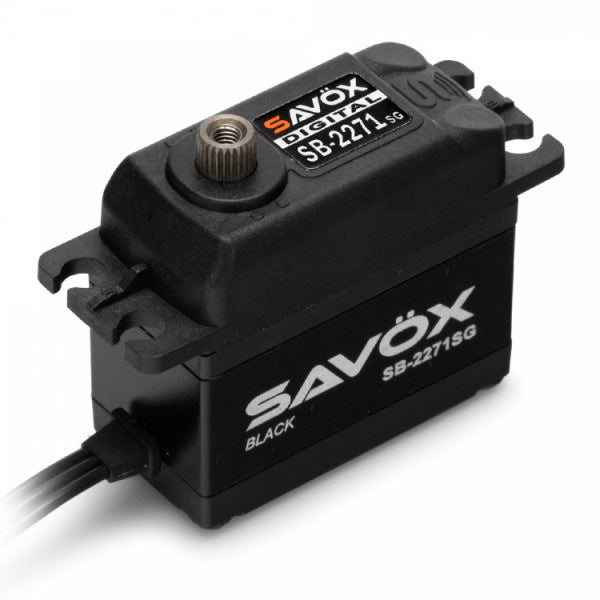

The Savox SB-2271SG-BE Black Edition high-voltage brushless digital servo combines leading-edge 12-bit (4096-step) resolution with a steel gear train and brushless motor for race-grade 1/10 scale performance. Its 0.065 sec transit at 7.4V delivers the quick, crisp response modern 1/10 buggies and trucks demand.

Brushless motor technology provides smoother operation, cooler running temperatures, and longer service life than comparable brushed servos — all wrapped in a stealth Black Edition aluminum case.

Key Features

12-bit (4096-step) digital resolution
Unique steel gear train
Brushless motor for smooth, efficient operation
HV capable
Sleek Black Edition finish
Torque: 15 kg (208.3 oz) @ 6.0V · 20 kg (277.7 oz) @ 7.4V
Speed: 0.085 sec/60° @ 6.0V · 0.065 sec/60° @ 7.4V
Dimensions: 40.3 × 20.2 × 38.7 mm · Weight: 69 g

Applications

1/10 scale buggies and trucks
1/10 short course and stadium truck
Select helicopter applications
Racing and sport builds

Scale Capability

The SB-2271SG-BE is engineered specifically for 1/10 scale racing and sport use. Its 278 oz torque and rapid 0.065 sec transit time deliver the authority and speed needed for aggressive 1/10 off-road driving, while brushless efficiency extends runtime during long mains and practice sessions.
