Overview

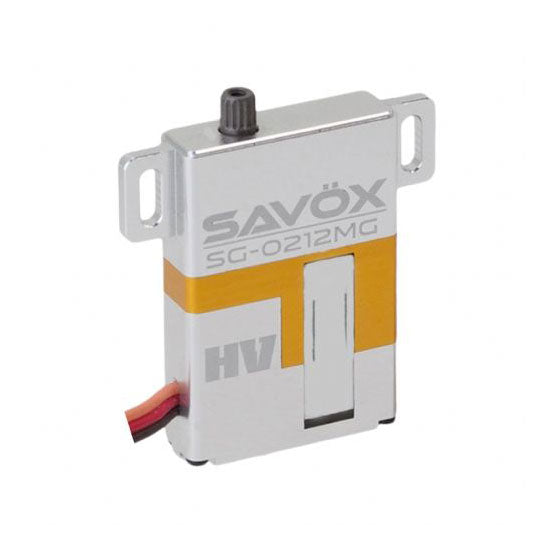

The Savox SG0212MG is a high-voltage, ultra-slim metal-gear digital wing servo built to fit inside the thin wings of gliders, sailplanes, and modern composite aircraft. Strong torque and fast transit times at 7.4V and 8.4V make it a dependable choice for demanding soaring applications.

The slim 8 mm case thickness allows clean installation in wings where a standard-profile servo simply won't fit.

Key Features

Ultra-slim metal-gear wing servo
High-voltage operation at 7.4V and 8.4V
Strong torque output for thin-wing applications
Metal gear train for durability and precision
Torque 5.0 kg / 69.4 oz-in @ 7.4V
Torque 6.0 kg / 83.3 oz-in @ 8.4V
Speed 0.10 sec/60° @ 7.4V, 0.09 sec/60° @ 8.4V

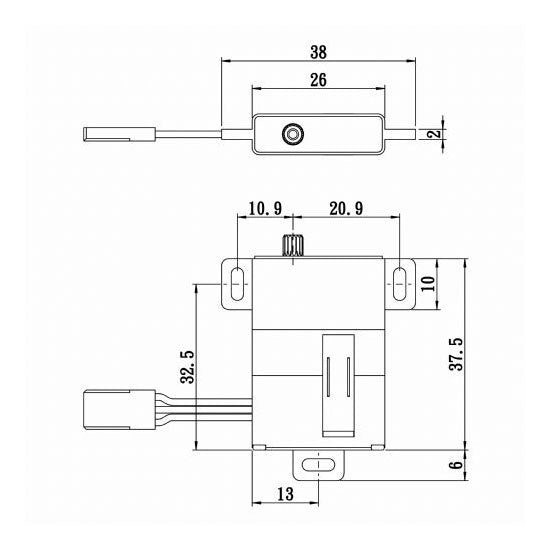

Dimensions 26.0 x 8.0 x 37.5 mm, Weight 22 g

Applications

Gliders and sailplanes with thin wings
Flaps, ailerons, and spoilers on soaring ships
Scale and competition soaring
Compact composite airframes

Scale Capability

At just 8 mm thick, the SG0212MG drops cleanly into the thin wing sections found on modern gliders and sailplanes. Its HV capability and metal gear train ensure consistent, precise control surface movement under the aerodynamic loads of high-speed soaring passes and aggressive thermalling.
