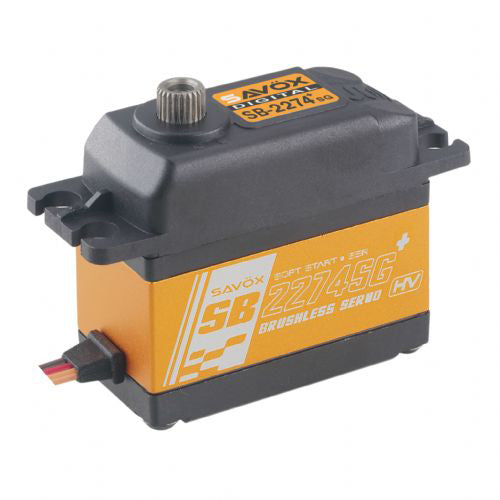

Savox High Voltage Brushless Digital Servo 0.080sec/347.2oz @ 7.4V (ONLINE ORDER ONLY)

Overview

The Savox SB2274SGP Plus is a high-voltage brushless digital servo engineered for 1/10 and 1/8 scale buggies, as well as large-scale aircraft. With 12-bit (4096) resolution and a unique steel gear train, it delivers precise, authoritative steering control in a versatile standard-case package.

At 7.4V the SB2274SGP produces 25 kg-cm (347.2 oz-in) of torque with a fast 0.08 sec/60° response, providing the speed and power competitive racers demand.

Key Features

• Brushless motor for smooth, long-life performance
• Unique steel gear train
• 12-bit (4096) resolution for precision
• HV compatibility (7.4V)
• Soft Start and Sanwa SSR compatibility
• Standard case (40.3 x 20.2 x 38.7 mm, 69g)

Performance Benefits

• Fast 0.08 sec/60° response for quick lines
• Strong 25 kg-cm torque output
• Long service life from brushless design
• SSR compatibility for maximum system speed

Usage Notes

• Ideal for 1/10 and 1/8 scale off-road buggies
• Excellent for large-scale RC aircraft
• Perfect for competitive racing builds
• Recommended for HV LiPo-powered setups

Technical Specs

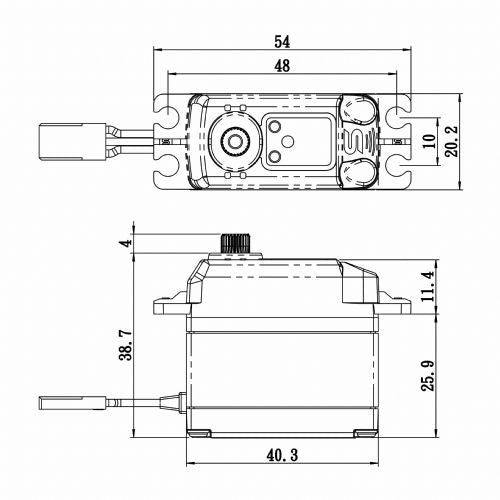

• Dimensions: 40.3 x 20.2 x 38.7 mm
• Weight: 69g
• Speed @ 7.4V: 0.08 sec/60°
• Torque @ 7.4V: 25 kg-cm (347.2 oz-in)
• Motor Type: Brushless
• Gear Type: Unique Steel
• Resolution: 12-bit (4096)
• Special Features: Soft Start, SSR Compatible

What's Included

• (1) Savox SB2274SGP Plus HV Brushless Digital Servo
• Servo horn hardware

Summary

The Savox SB2274SGP Plus delivers fast 0.08 sec HV brushless performance with 347.2 oz-in of torque. Versatile precision for 1/10 and 1/8 scale builds.
