Overview

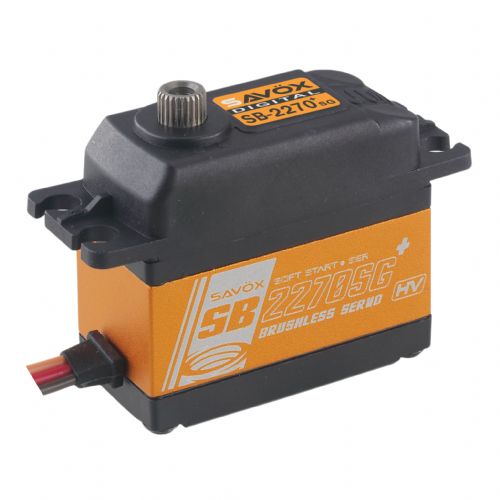

The Savox SB-2270SG+ (Plus) Monster Torque Servo combines a brushless motor with extremely strong steel gears for long-lasting, authoritative performance in the most demanding applications. As a "Plus" series servo, it includes Soft Start and Sanwa SSR compatibility, making it a seamless upgrade for modern high-resolution radio systems.

With up to 625 oz-in of torque at 8.4V, the SB-2270SG+ is the right choice for rock crawlers, monster trucks, and control surfaces on giant scale aircraft — anywhere brute force and precision control must coexist.

Key Features

"Plus" series with Soft Start and Sanwa SSR compatibility
Extremely strong unique steel gears
Brushless motor for smooth, efficient operation
HV capable
Torque: 25 kg (347.2 oz) @ 6.0V · 40 kg (555.5 oz) @ 7.4V · 45 kg (624.9 oz) @ 8.4V
Speed: 0.15 sec @ 6.0V · 0.12 sec @ 7.4V · 0.11 sec @ 8.4V

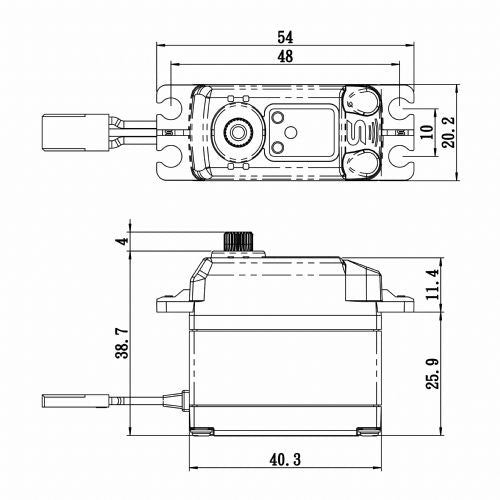

Dimensions: 40.3 × 20.2 × 38.7 mm
Weight: 74 g

Applications

Rock crawlers and trail rigs
Monster trucks and heavy bashers
Giant scale aircraft control surfaces
Sanwa SSR-equipped race setups

Scale Capability

The SB-2270SG+ covers a wide range of applications from 1/10 rock crawlers up through giant scale aircraft. Its 625 oz torque output at 8.4V handles the steering loads of oversized crawler and MT tires, while its Sanwa SSR compatibility and Soft Start make it equally home on modern high-end touring and aircraft setups.
