Savox HV Brushless Digital Large Scale Servo Tall Soft Start 8.4V (ONLINE ORDER ONLY)

Overview

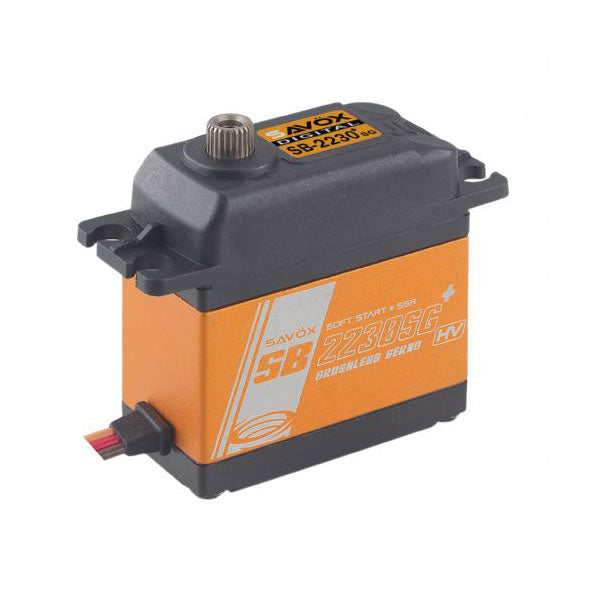

The Savox SB2230SGP Plus is a monster torque HV brushless servo housed in a slightly taller large-scale case. With unique steel gears built to accommodate its massive output, it delivers the authoritative power needed for giant-scale aircraft, monster trucks, and 1/8 scale off-road vehicles.

At 8.4V the SB2230SGP produces an incredible 55 kg-cm (763.8 oz-in) of torque with a 0.11 sec/60° response, representing benchmark performance for heavy-duty RC applications.

Key Features

• Brushless motor for long life and cooler operating temps
• Extremely strong unique steel gears
• Taller large-scale case design (40.3 x 20.2 x 44.9 mm, 84g)
• HV compatibility up to 8.4V
• Soft Start and Sanwa SSR support
• Monster torque: 55 kg-cm @ 8.4V

Performance Benefits

• Benchmark 55 kg-cm torque for extreme loads
• Fade-free brushless performance
• Bulletproof steel gear durability
• HV compatibility for maximum output

Usage Notes

• Ideal for giant-scale RC aircraft
• Excellent for monster trucks and large bashers
• Perfect for 1/8 scale off-road buggies and trucks
• Recommended for heavy-duty steering builds

Technical Specs

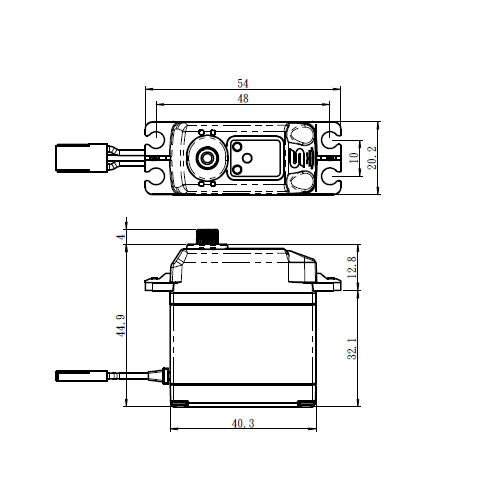

• Dimensions: 40.3 x 20.2 x 44.9 mm
• Weight: 84g
• Speed @ 8.4V: 0.11 sec/60°
• Torque @ 8.4V: 55 kg-cm (763.8 oz-in)
• Motor Type: Brushless
• Gear Type: Unique Steel
• Form Factor: Large-Scale Case
• Special Features: Soft Start, SSR Compatible

What's Included

• (1) Savox SB2230SGP Plus HV Brushless Monster Torque Servo
• Servo horn hardware

Summary

The Savox SB2230SGP Plus delivers monster 55 kg-cm brushless torque in a large-scale case with steel gears. Premium power for extreme RC builds.
