Overview

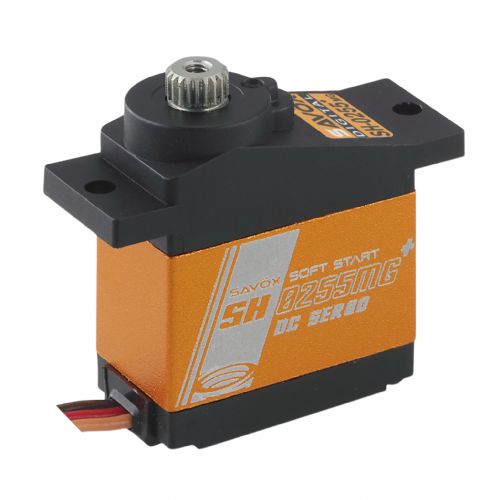

The Savox SH-0255MG+ is a micro-size digital metal-gear servo that produces torque figures normally reserved for much larger standard-size servos, outperforming other competitive micro offerings. As a member of Savox's "Plus" series, it features Soft Start for smooth power-up behavior and full Sanwa SSR compatibility for modern radio systems.

A durable metal gear train paired with an aluminum middle case delivers cooler operating temperatures and consistent performance — an ideal choice for small airplanes and 450-class helicopters where precision, weight, and dependability all matter.

Key Features

Micro-size digital servo with "Plus" series Soft Start
Sanwa SSR compatible
Durable metal gear train
Aluminum middle case for cooler operating temperatures
Torque: 3.1 kg (43.1 oz) @ 4.8V · 3.9 kg (54.2 oz) @ 6.0V
Speed: 0.16 sec/60° @ 4.8V · 0.13 sec/60° @ 6.0V

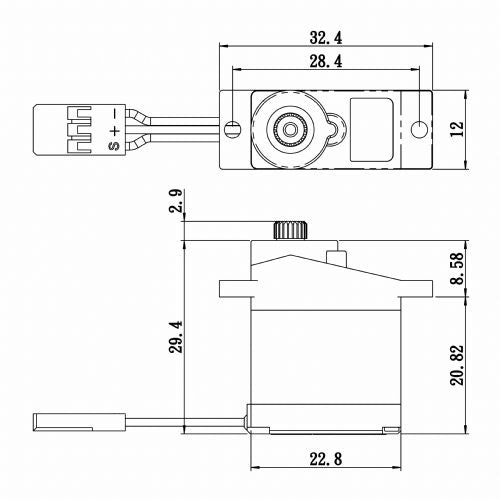

Dimensions: 22.8 × 12.0 × 29.4 mm
Weight: 15.8 g

Applications

Small electric airplanes
450-class electric helicopters (tail / cyclic)
Micro-scale RC ground vehicles
Control surface applications requiring precise centering

Scale Capability

The SH-0255MG+ excels in small-scale electric aircraft and 450-class helicopters where a micro footprint is required but torque cannot be compromised. Its metal gears and soft-start circuitry deliver the smooth, accurate control that precision flight demands, while its compact housing fits cleanly in tight fuselages.
