Overview

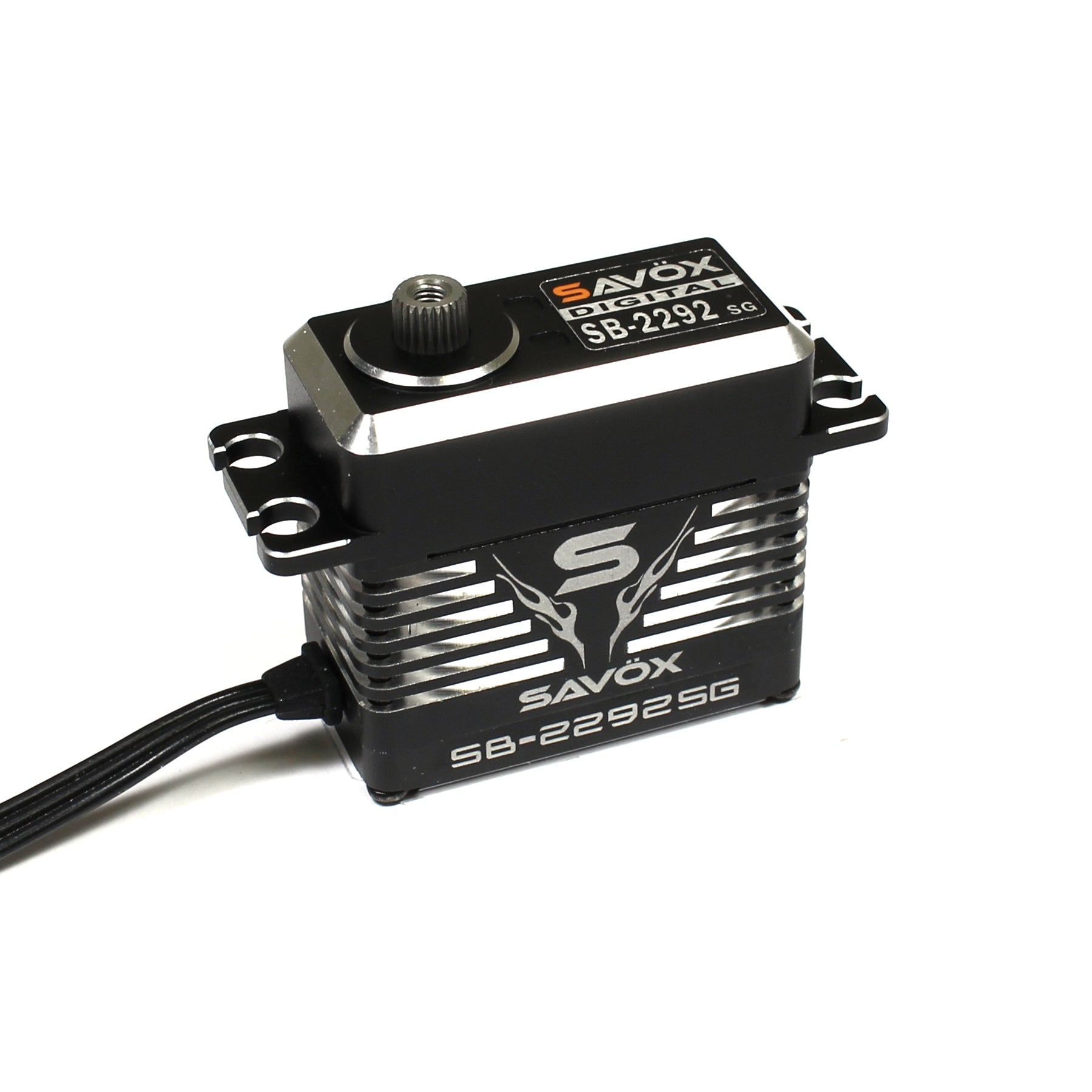

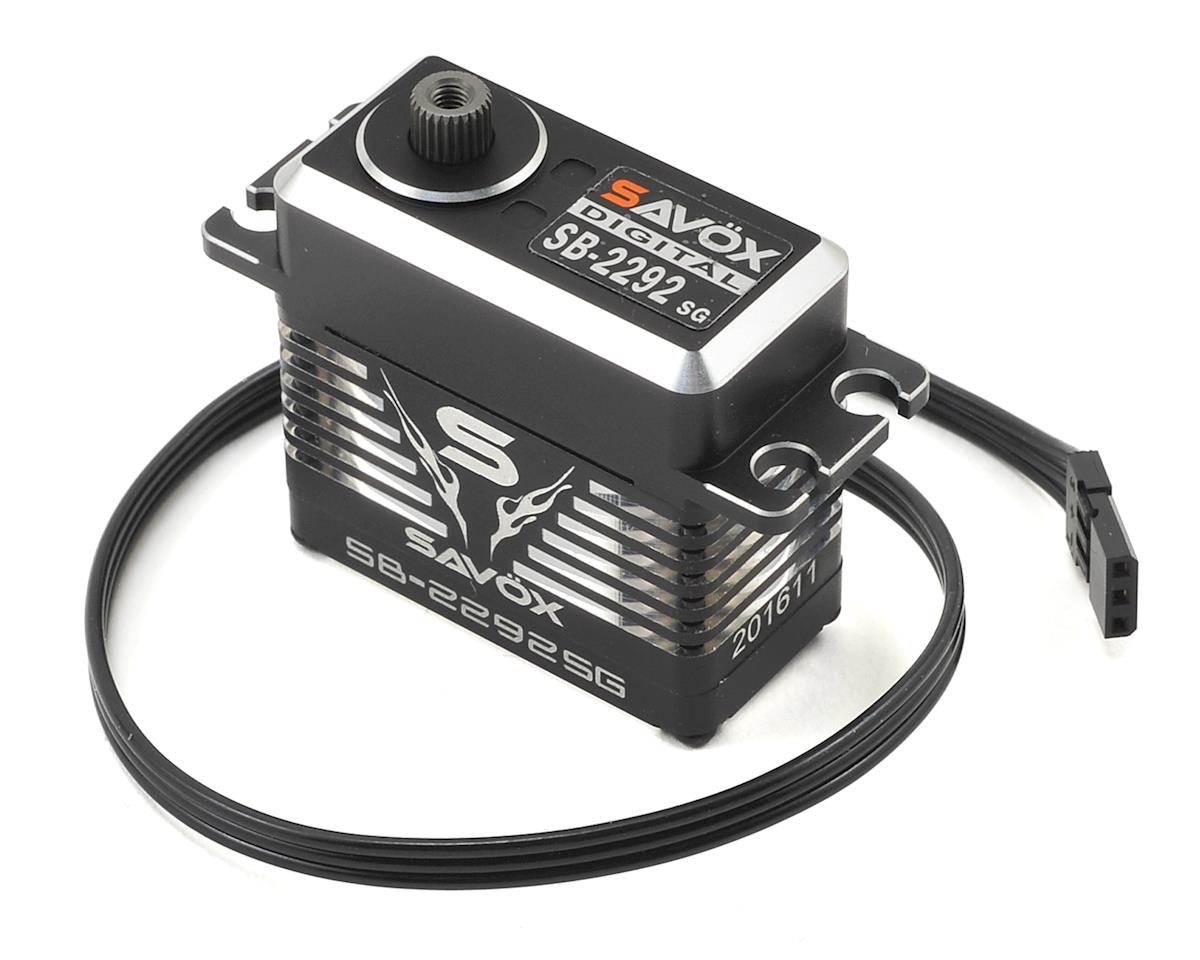

The Savox SB-2292SG Black Edition is part of the powerful "Monster" performance series, combining a full aluminum case with unique brushless motor and controller technology to deliver up to 35% more power than previous generation servos. Three precision ball bearings and a unique steel gear train handle the massive loads this servo puts out.

At 8.4V, the SB-2292SG produces a staggering 45 kg (624.9 oz) of torque with a 0.055 sec transit — making it one of the fastest and most powerful servos available for demanding RC applications.

Key Features

"Monster" series brushless servo with full aluminum case
Up to 35% more power than previous generation designs
Three precision ball bearings
Unique steel gears for extreme durability
HV capable for maximum performance
Torque: 22 kg (305.5 oz) @ 6.0V · 31 kg (430.5 oz) @ 7.4V · 45 kg (624.9 oz) @ 8.4V
Speed: 0.085 sec @ 6.0V · 0.07 sec @ 7.4V · 0.055 sec @ 8.4V
Dimensions: 40.3 × 20.2 × 38.7 mm · Weight: 81 g

Applications

1/8 scale buggies and truggies
1/10 and 1/8 monster trucks
Rock crawlers and heavy bashers
Giant scale aircraft control surfaces

Scale Capability

The SB-2292SG is built for 1/8 and larger scale RC vehicles where its 625 oz torque rating delivers authoritative steering on oversized tires and through demanding terrain. The brushless motor design maintains efficiency and cool running even under sustained high loads, while three precision bearings ensure smooth, consistent output.
