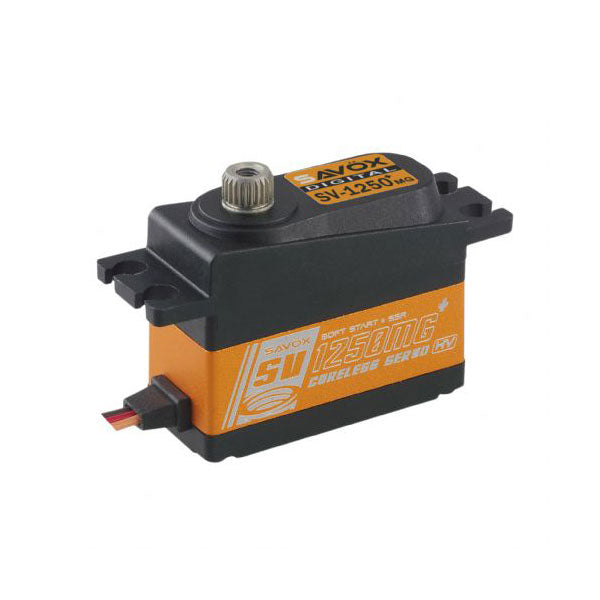

Savox SAVSV1250MGP High Voltage Micro Tail Servo Soft Start (ONLINE ORDER ONLY)

Overview

The Savox SV1250MGP Plus is a high-voltage micro tail servo engineered for RC helicopter tail control and other applications where small size, big torque, and fast response matter. Delivering 8.0 kg-cm (111.1 oz-in) of torque and a 0.095 sec/60° response at 7.4V, it punches well above its class thanks to HV compatibility and a steel gear train.

Plus series features add Soft Start and Sanwa SSR compatibility for smoother engagement and maximum Sanwa system performance, making it ideal for demanding helicopter applications.

Key Features

• Micro form factor (35.0 x 15.0 x 29.2 mm, 29.6g)
• Steel gear train for durability under heavy use
• Aluminum middle case for cooler operating temps
• HV compatible (up to 7.4V)
• Soft Start and Sanwa SSR compatibility

Performance Benefits

• Strong torque in a micro footprint
• Cooler running via aluminum middle case
• Smooth soft start engagement
• Maximum Sanwa SSR system response

Usage Notes

• Ideal for RC helicopter tail servos
• Excellent for small-scale and micro RC builds
• Perfect for high-torque, space-constrained installations
• Compatible with HV-powered Sanwa SSR systems

Technical Specs

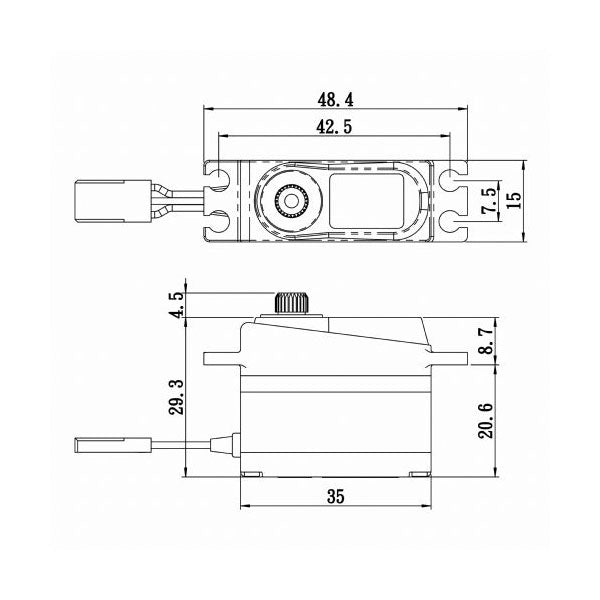

• Dimensions: 35.0 x 15.0 x 29.2 mm
• Weight: 29.6g
• Speed @ 7.4V: 0.095 sec/60°
• Torque @ 7.4V: 8.0 kg-cm (111.1 oz-in)
• Gear Type: Steel
• Case: Aluminum Middle
• Special Features: Soft Start, SSR Compatible

What's Included

• (1) Savox SV1250MGP Plus Micro Tail Servo
• Servo horn hardware

Summary

The Savox SV1250MGP Plus delivers HV micro performance with steel gears and SSR compatibility. Premium micro servo for helicopter tail and small-scale RC applications.
