Overview

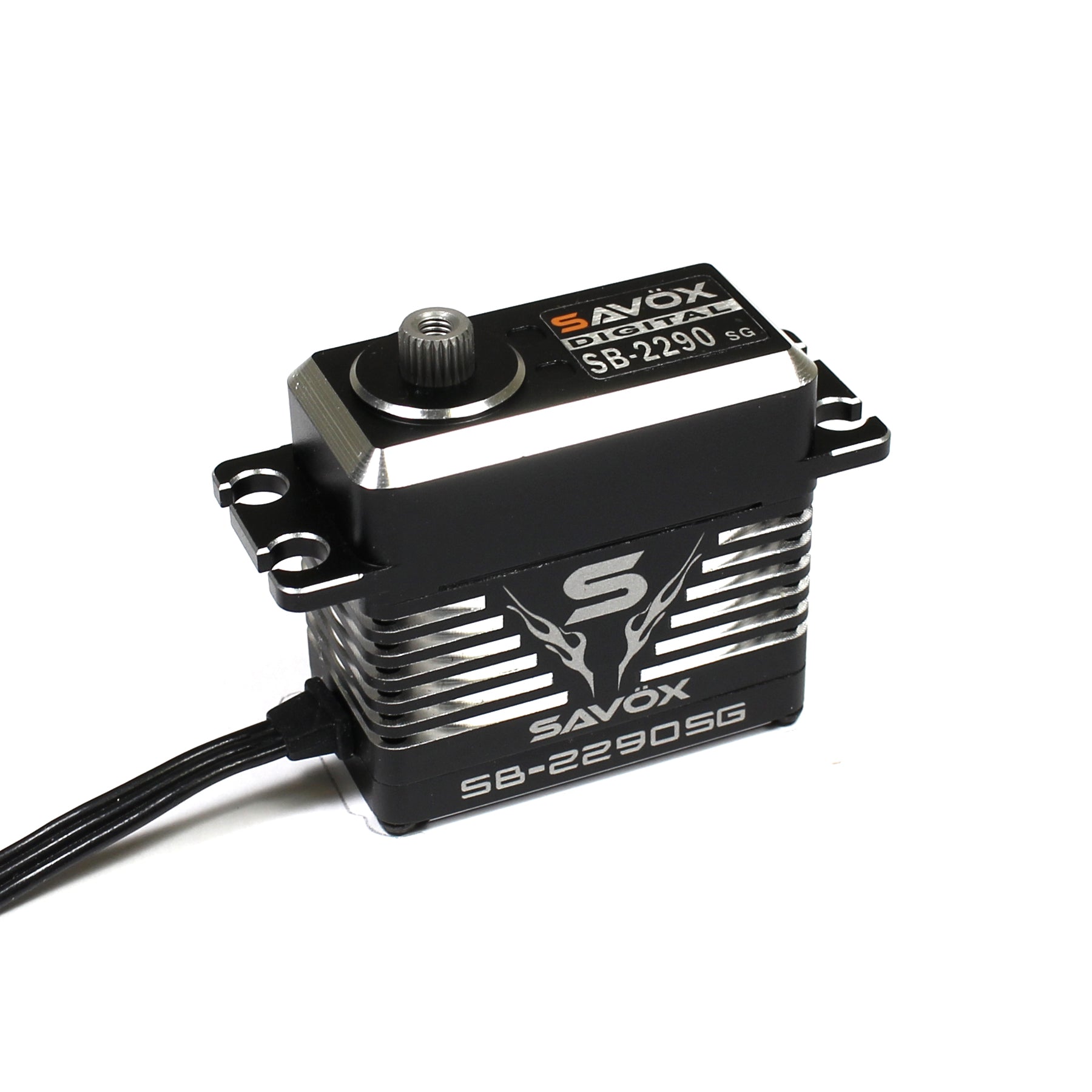

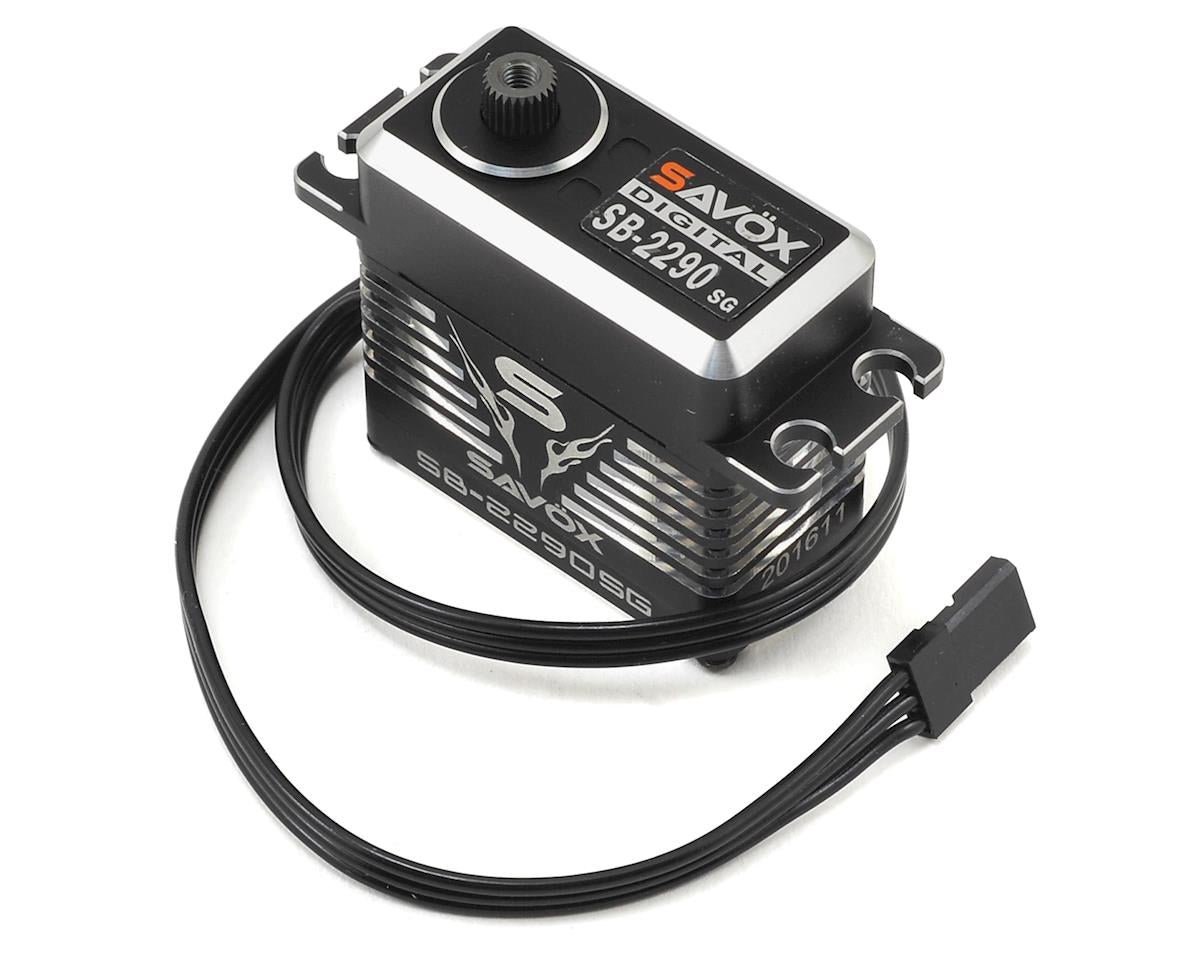

The Savox SB-2290SG Black Edition Monster Torque Servo is engineered for builds that demand absolute authority. Its unique brushless motor and controller technology boost power up to 35% over previous generation servos, delivering an astonishing 972 oz-in of torque at 8.4V — enough muscle for the most demanding monster trucks, crawlers, and giant scale aircraft.

A full aluminum case with three precision ball bearings and a heavy-duty steel gear train ensures that all that power transfers cleanly and reliably to the output shaft, pass after pass.

Key Features

"Monster Torque" brushless servo with up to 35% more power
Full aluminum case
Three precision ball bearings
Heavy-duty steel gears
HV (high-voltage) capable
Up to 972.1 oz-in of torque
Torque: 45 kg (624.9 oz) @ 6.0V · 55 kg (763.8 oz) @ 7.4V · 70 kg (972.1 oz) @ 8.4V
Speed: 0.16 sec @ 6.0V · 0.13 sec @ 7.4V · 0.11 sec @ 8.4V · 81 g

Applications

1/5 and 1/6 scale monster trucks
Heavy rock crawlers
Giant scale aircraft control surfaces
Extreme bashing and sand/mud rigs

Scale Capability

The SB-2290SG is sized for serious large-scale and high-torque applications. Its 972 oz torque rating at 8.4V handles enormous steering loads on 1/5 scale monster trucks and heavy crawlers, while the same servo's precision makes it equally at home driving giant scale aircraft control surfaces.
