Overview

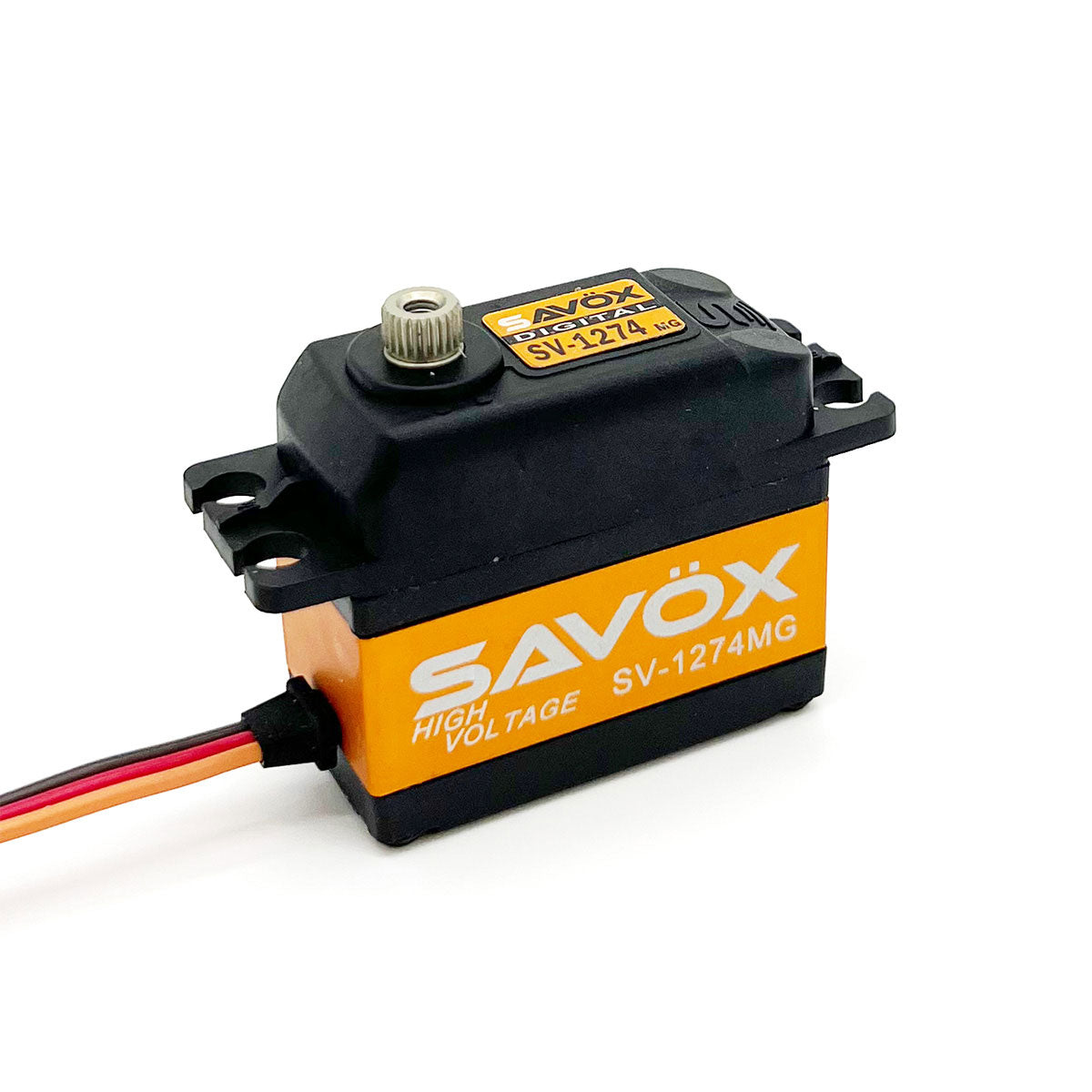

The Savox SV1274MG is a standard-size, metal-geared digital servo built specifically for RC helicopter tail applications where high-voltage operation, fast transit speed, and strong holding torque are essential. Its steel gear train, aluminum middle case, and HV capability combine to deliver dependable performance flight after flight.

Whether you're upgrading a sport heli or outfitting a competitive 3D machine, the SV1274MG provides the crisp, locked-in tail response that advanced pilots expect.

Key Features

Standard-size metal-gear digital tail servo
Steel gear train for long-term durability
High-voltage (HV) capable operation
Aluminum middle case for cooler running temperatures
Torque 2.5 kg / 34.7 oz-in @ 6V
Torque 4.0 kg / 55.5 oz-in @ 7.4V
Speed 0.07 sec/60° @ 6V, 0.055 sec/60° @ 7.4V
Dimensions 35.0 x 15.0 x 29.2 mm, Weight 29.5 g

Applications

RC helicopter tail rotor control
450- to 550-size helis and similar platforms
HV LiPo receiver-powered setups
Sport and 3D helicopter builds

Scale Capability

The SV1274MG is optimized for helicopter tail duty, where lightning-fast corrections and rock-solid holding power determine flight precision. HV capability keeps response consistent as the pack drains, while the steel gear train absorbs the repeated high-speed reversals tail servos see in aggressive flying.
