Overview

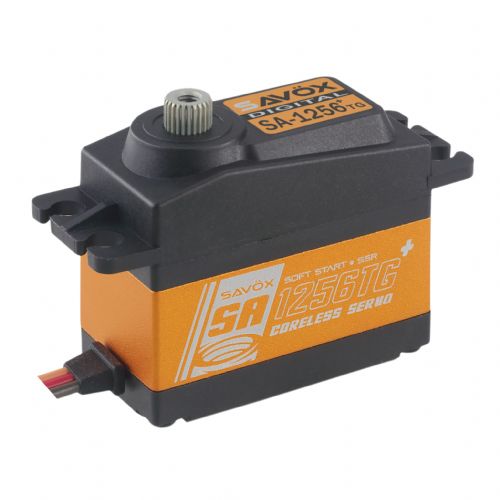

The Savox SA-1256TG+ (Plus) is a standard-size coreless digital servo that delivers a substantial upgrade over typical RTR servos. SA-series servos are engineered with minimized backlash, making them ideal for use on flying control surfaces of RC airplanes where precise, repeatable movement directly affects flight quality.

As a "Plus" series servo, it includes Soft Start for smooth power-up and full Sanwa SSR compatibility. Titanium gears ensure long life with light weight, and an aluminum middle case keeps operating temperatures cool under sustained use.

Key Features

Standard-size coreless digital servo
"Plus" series with Soft Start and Sanwa SSR compatibility
Titanium gears for long life and light weight
Minimized backlash for precision airplane control
Aluminum middle case for cooler operation
Torque: 16 kg (222.2 oz) @ 4.8V · 20 kg (277.7 oz) @ 6.0V
Speed: 0.18 sec/60° @ 4.8V · 0.15 sec/60° @ 6.0V

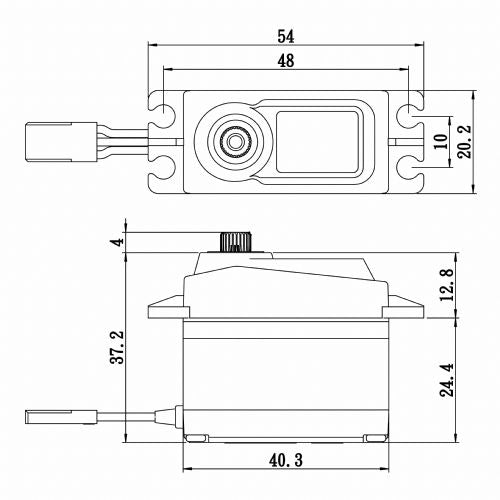

Dimensions: 40.3 × 20.2 × 37.2 mm · Weight: 64 g

Applications

Aerobatic and precision RC airplanes
Scale and sport airplane control surfaces
Upgraded replacement for RTR servos
Sanwa SSR-equipped radio setups

Scale Capability

The SA-1256TG+ is versatile across a range of aircraft scales, from sport trainers to aerobatic precision flyers. Its minimized backlash makes it especially well-suited to elevator, aileron, and rudder surfaces where repeatable centering is critical to clean flight.
