Tamiya RC Oil Gear Differential Unit, XV-02/TT-02 22049 (ONLINE ORDER ONLY)

Tamiya RC Oil Gear Differential Unit, XV-02/TT-02 22049 (ONLINE ORDER ONLY)

Tamiya RC Oil Gear Differential Unit, XV-02/TT-02 22049 (ONLINE ORDER ONLY)

Regular Price $25.60

Product Type : Upgrade Parts

Hurry! Only
0
units left in stock!
-
+
In Stock SOLD OUT
This Item is Availible Online Only
Price & Availability will vary by location
Item Location
Warehouse
Average Processing Time
24-72 Hours
No In store pickup
Online Order only

This is a gear differential unit for use on the XV-02 and TT-02 chassis. When using it on the TT-02 chassis, it allows you to tune the differential action, for the front and rear, with the use of different viscosity oils. When using it on the XV-02, you can use it not only for the front and rear diffs, but also as a center oil-filled diff unit, which will give you even more tuning options!

When using as a center oil-filled diff unit, on the XV-02 chassis, make sure to use with Item 22050 (06 Module Spur Gear 70T).

When using on TT-02 Chassis, use items: 54623, 51700, 51444.

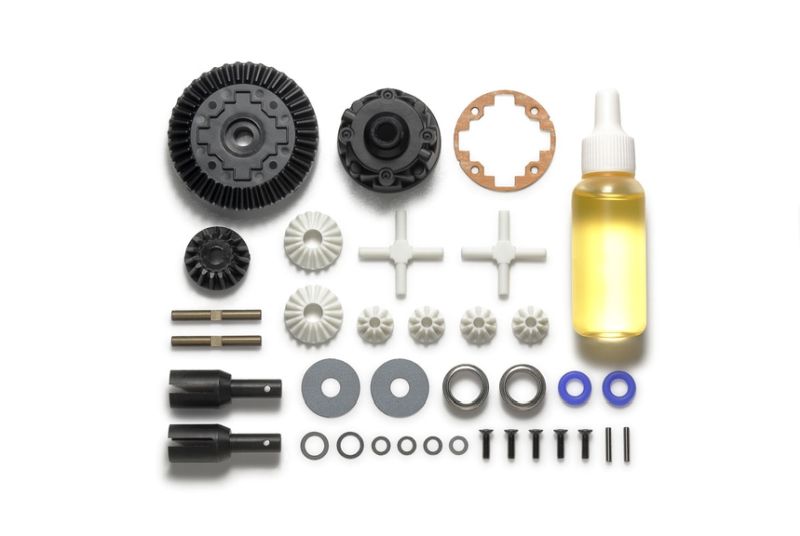

Includes:
  • Differential Joints x2
  • Gear Differential Ring Gear (39T) x1
  • Bevel Pinion Gear (for 39T gear) x1
  • Differential Case x1
  • Gasket x1
  • GV Gears x2
  • 2.8x23.4mm Cross Shafts x2
  • 2x8mm Countersunk Hex Head Screws x4
  • 5mm O-Rings x2
  • 5x15.2x0.2mm Shims x2
  • 5x7x0.1mm Shims x2
  • 3x5x0.1mm Shims x4
  • 1280 Ball Bearings x2
  • Silicone Oil #3000
