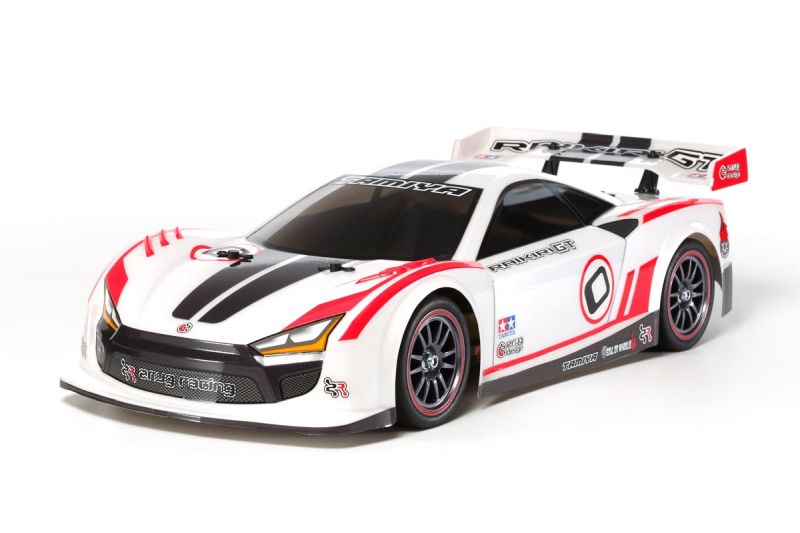

The stylish Raikiri shell is the brainchild of Japanese designer Kota Nezu of Znug design, who has contributed to a number of popular Tamiya products. The wide and lowdown form of the Raikiri GT has been adapted for use on electric R/C cars, and is bound to turn heads at the local racetrack, equipped as it is with a stylish wing at the rear. Markings are also included to decorate the body.

TT-02: Adaptable, balanced shaft driven 4WD

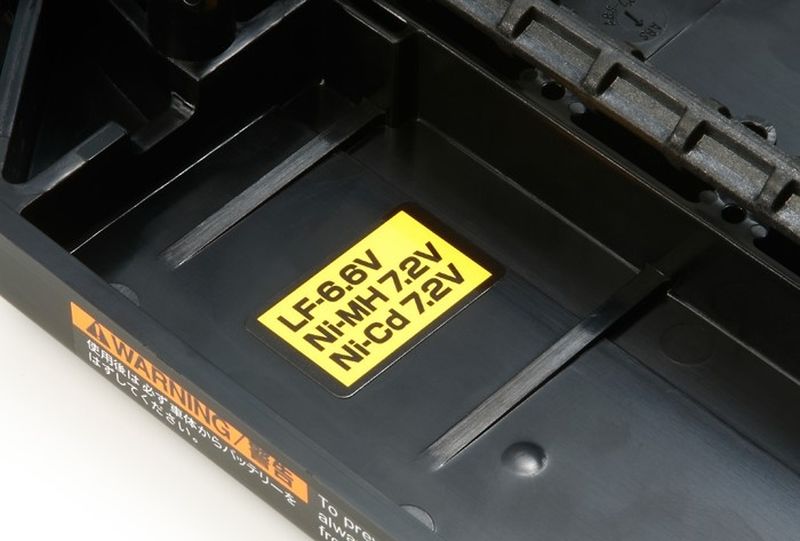

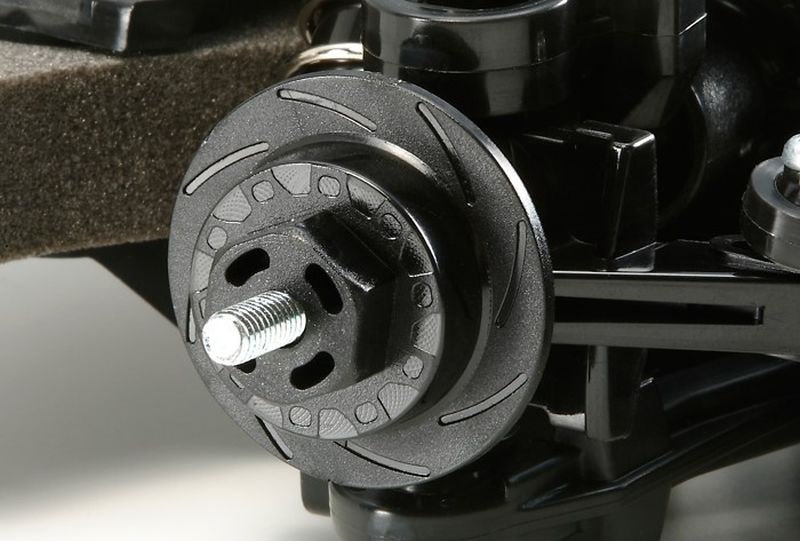

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal color 12-spoke wheels are paired with slick tires for a racy finish.




Includes:
  • Type 540 Motor
  • Electronic Speed Controller (ESC)




Features:
  • Bathtub-type Frame
  • Shaft-Driven 4WD

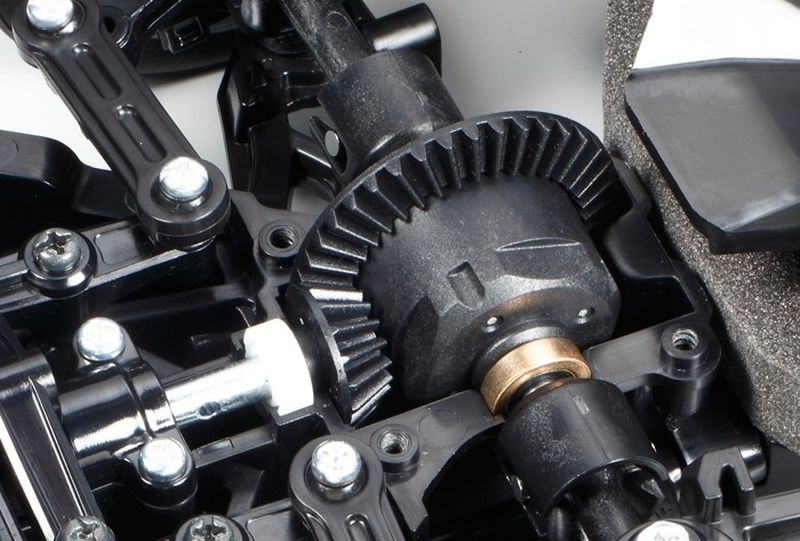

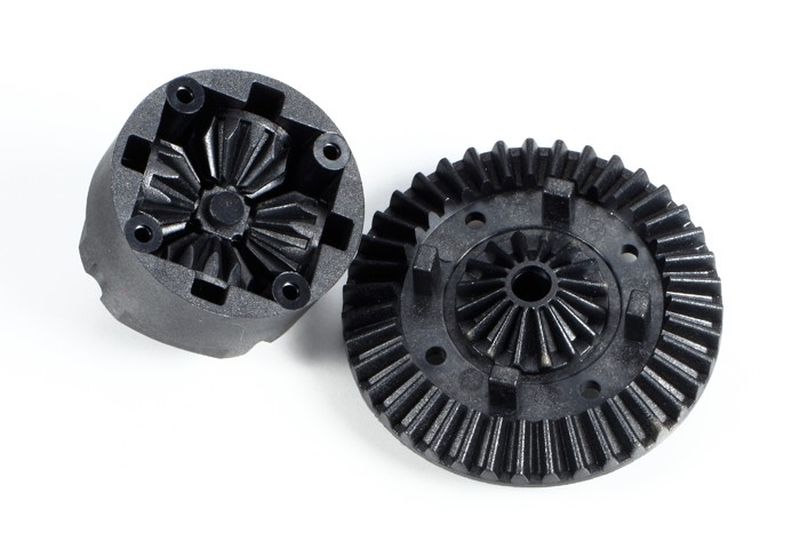

  • Front/Rear 4-Bevel Resin Differentials

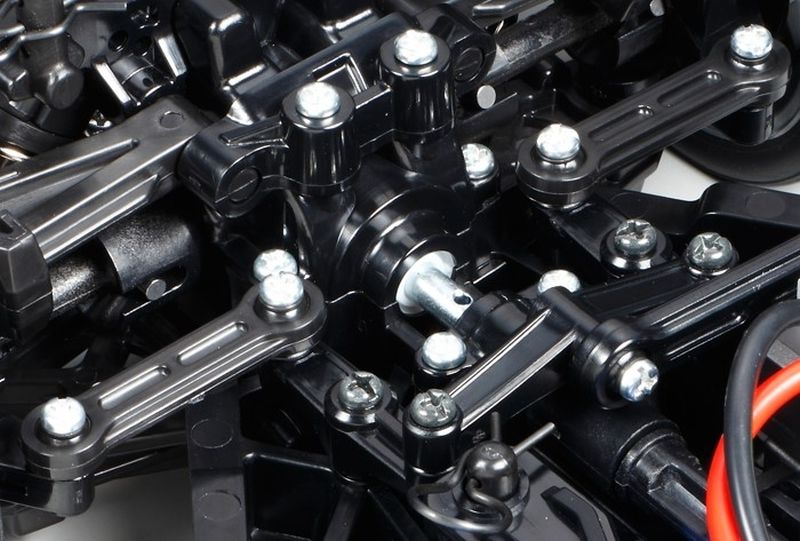

  • 3-Piece Steering Tie-Rod
  • 4-Wheel Double Wishbone Suspension
  • Front/Rear Friction Dampers
  • Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)




Specifications:
  • Length: 432mm
  • Width: 188mm
  • Height: 114mm
  • Wheelbase: 257mm
  • Tire Width/Diameter: 27/67mm (Front & Rear)
