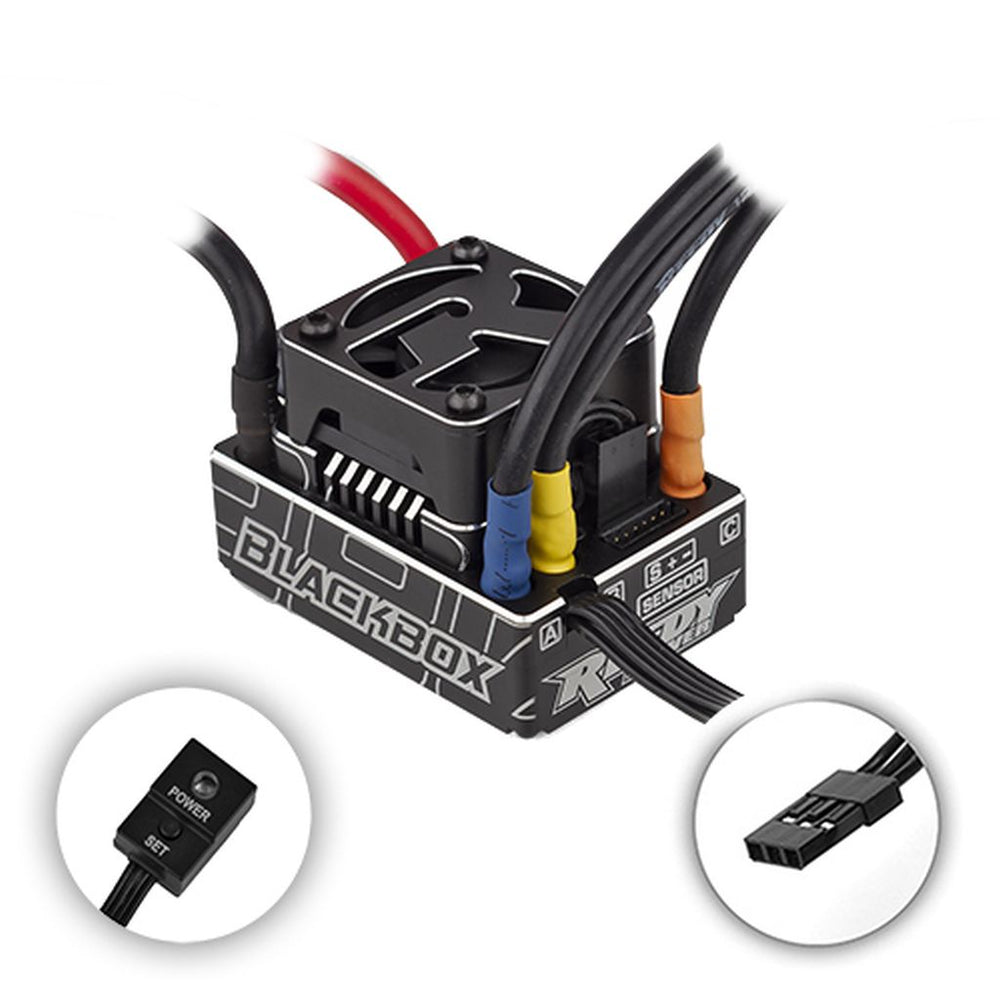

Team Associated Blackbox 880R Competition 1:8 ESC 27043 (ONLINE ORDER ONLY)

Overview

The Team Associated Reedy Blackbox 880R Competition 1/8 ESC is a premium brushless speed controller built for the extreme demands of 1/8 E-Buggy, E-Truggy, and 1/10 4WD Short Course racing. This state-of-the-art ESC delivers excellent throttle and brake feel with robust hardware engineered for racers seeking maximum performance on track.

Backed by Reedy Power's 30 IFMAR World Championship titles, the 880R is competition-proven with race-developed default settings that deliver excellent performance right out of the box. For advanced tuning, the optional Blackbox Programmer2 unlocks the ESC's full potential with comprehensive adjustability.

Key Features

• CNC-machined black aluminum case with integrated heat sink
• Ultra-low resistance FET board for maximum efficiency
• 32-bit microcontroller unit (MCU) for precision control
• Push-button power switch
• Heavy-duty solder tabs with pre-installed power wires
• Integrated power capacitors for smooth power delivery
• 30mm cooling fan with CNC-machined shroud included
• Standard and Expert tuning modes (with optional Programmer2)
• Firmware updateable (with optional Programmer2)

Performance Benefits

• 180A continuous and 700A peak current capacity
• Excellent thermal stability during long mains
• Precise throttle response for consistent acceleration
• Strong, predictable braking performance
• Race-ready default settings out of the box
• Adjustable BEC voltage (6.0V/7.4V) for servo tuning

Usage Notes

• Best suited for 1/8 scale buggies, truggies, and 1/10 4WD short course
• Compatible with sensored and sensorless brushless motors
• Recommended motor limit: Up to 2400kV with 4S LiPo
• Optional Blackbox Programmer2 recommended for advanced tuning

Technical Specs

• Input Voltage: 2-4S LiPo (7.4-14.8V)
• Continuous Current: 180A
• Peak Current: 700A
• Resistance: 0.00043?
• BEC Output: Adjustable 6.0V / 7.4V
• BEC Current: 5A continuous
• Dimensions (LxWxH): 54 x 37 x 23mm
• Weight: 45g (without wires and fan)
• Motor Compatibility: Sensored and sensorless brushless

What's Included

• (1) Reedy Blackbox 880R Competition 1/8 ESC
• (1) 30mm Cooling Fan (pre-installed)
• Power Wires and Capacitors (pre-installed)
• (1) Instruction Manual

Summary

Experience championship-level performance with the Reedy Blackbox 880R Competition 1/8 ESC. Engineered for 1/8 scale racing dominance, this ESC delivers the power, precision, and reliability that serious competitors demand from the Reedy Power name.
