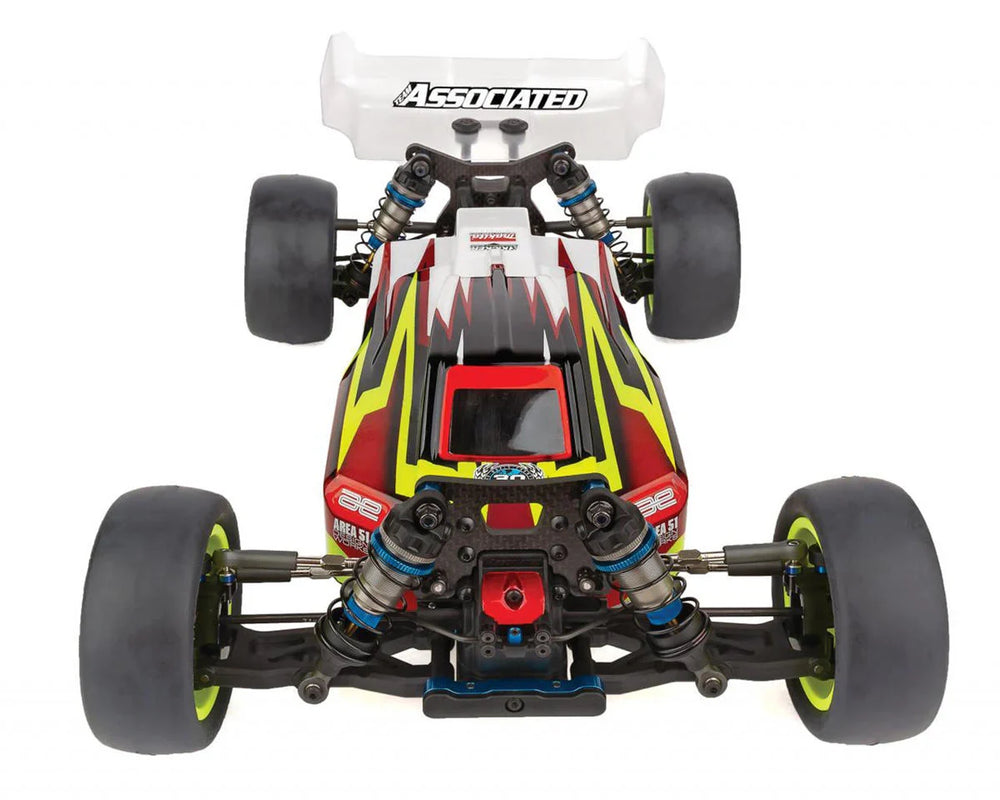

Team Associated RC10B74.2D CE Team 1/10 4WD Off-Road E-Buggy Kit (ONLINE ORDER ONLY)

Overview

The Team Associated RC10B74.2D CE (Champions Edition) Team Kit represents the ultimate evolution of the IFMAR World Champion, European Champion, Australian Champion, and British Champion B74 platform. Competing successfully at the highest levels worldwide, this championship-caliber 1/10 scale 4WD buggy features Factory Team upgrades and optimized setups specifically tuned for dirt, clay, and low-grip track conditions. The "D" designation indicates this version is purpose-built for dirt racing excellence.

The Champions Edition retains key features from its predecessor while incorporating significant improvements. Lightweight molded gearboxes front and rear lower the center of gravity by removing weight from high points, while modified differentials with LTC gear sets improve rolling speed through turns and increase landing stability for faster corner speeds on high-grip surfaces. The latest 13mm big-bore shock technology keeps the RC10B74.2D at the highest level of jump and bump handling performance.

Key Features

• Factory Team molded ring and pinion gear sets
• Factory Team molded LTC differential gear sets

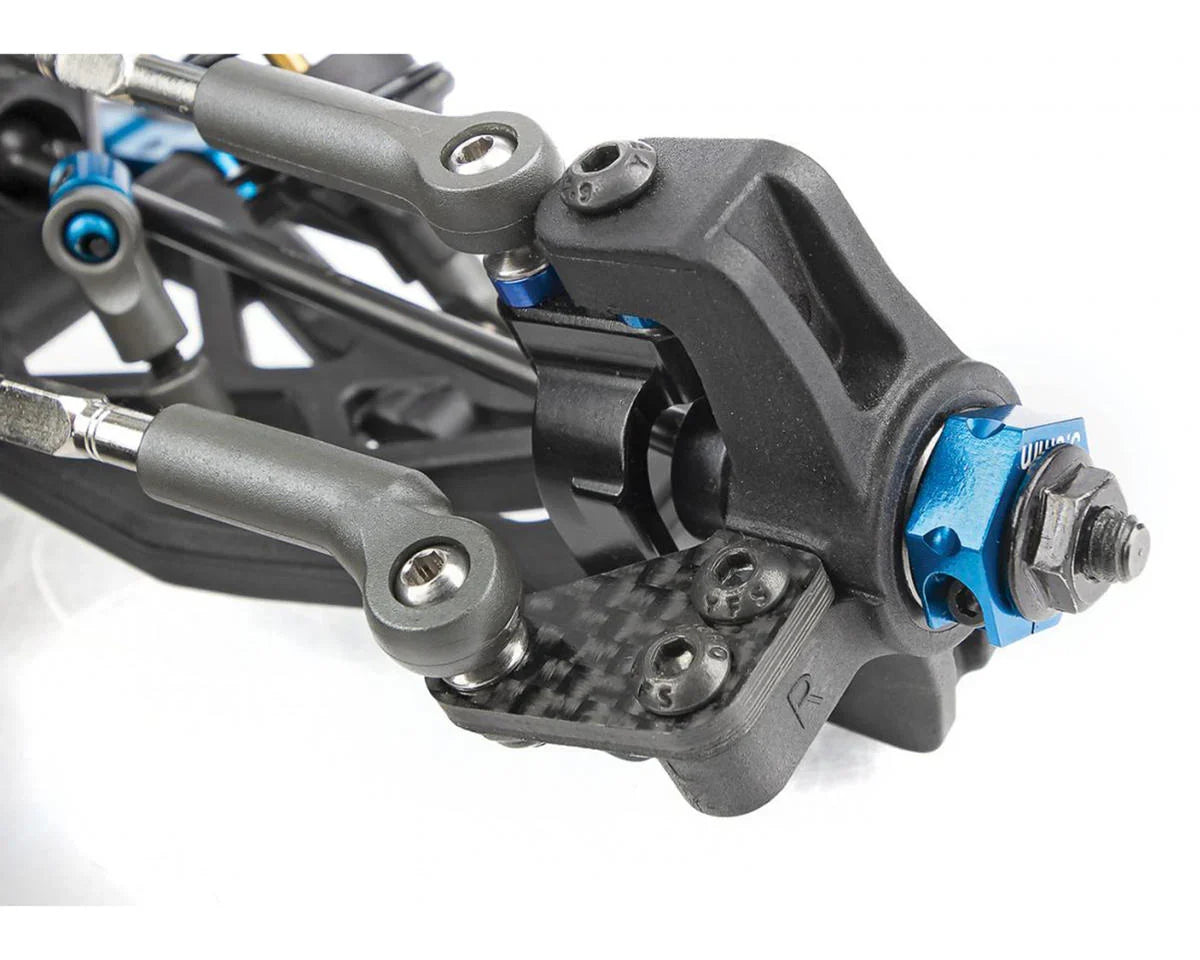

• Factory Team +1 steering block arms
• Updated Factory Team kit setup

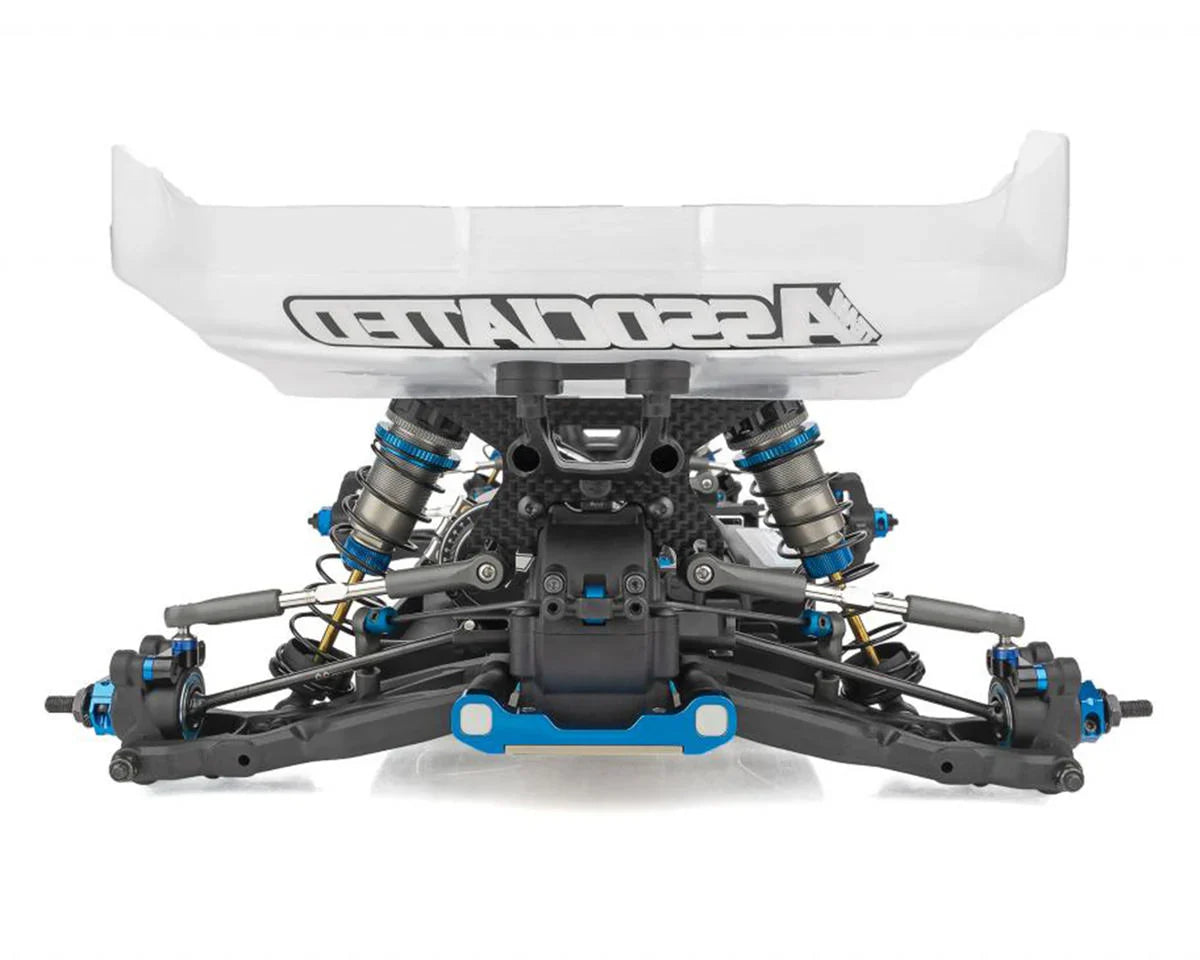

• Lightweight molded gearboxes (front and rear)
• Two fixed-height front gearbox options (0 and +2mm)
• Rear gearbox with RC10B6-style inserts (0, +1, +2, +3mm)
• 13mm big-bore threaded aluminum shocks
• Machined shock pistons for improved handling
• Gull wing front suspension arms with matching shock tower

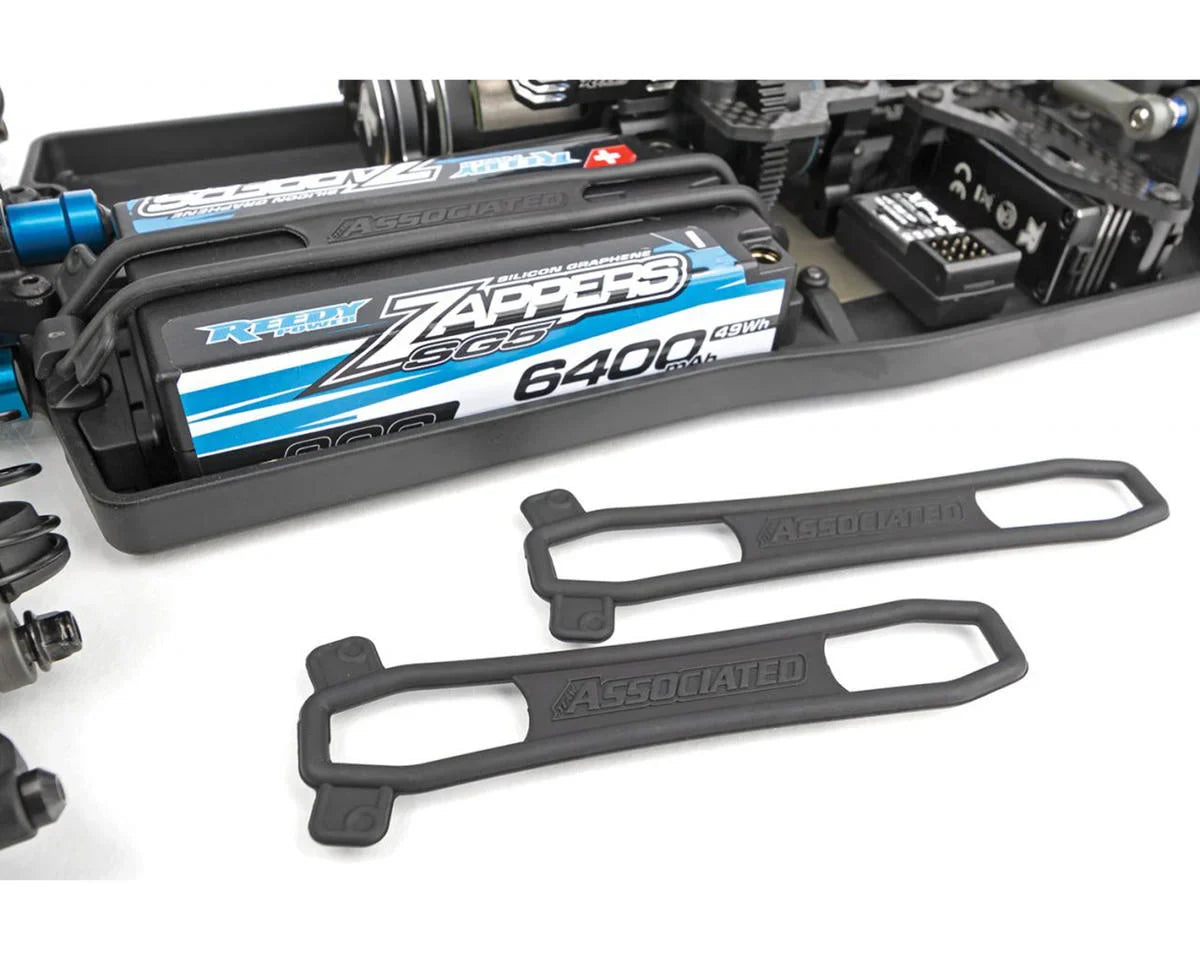

• Battery hold-down system with weight bias inserts

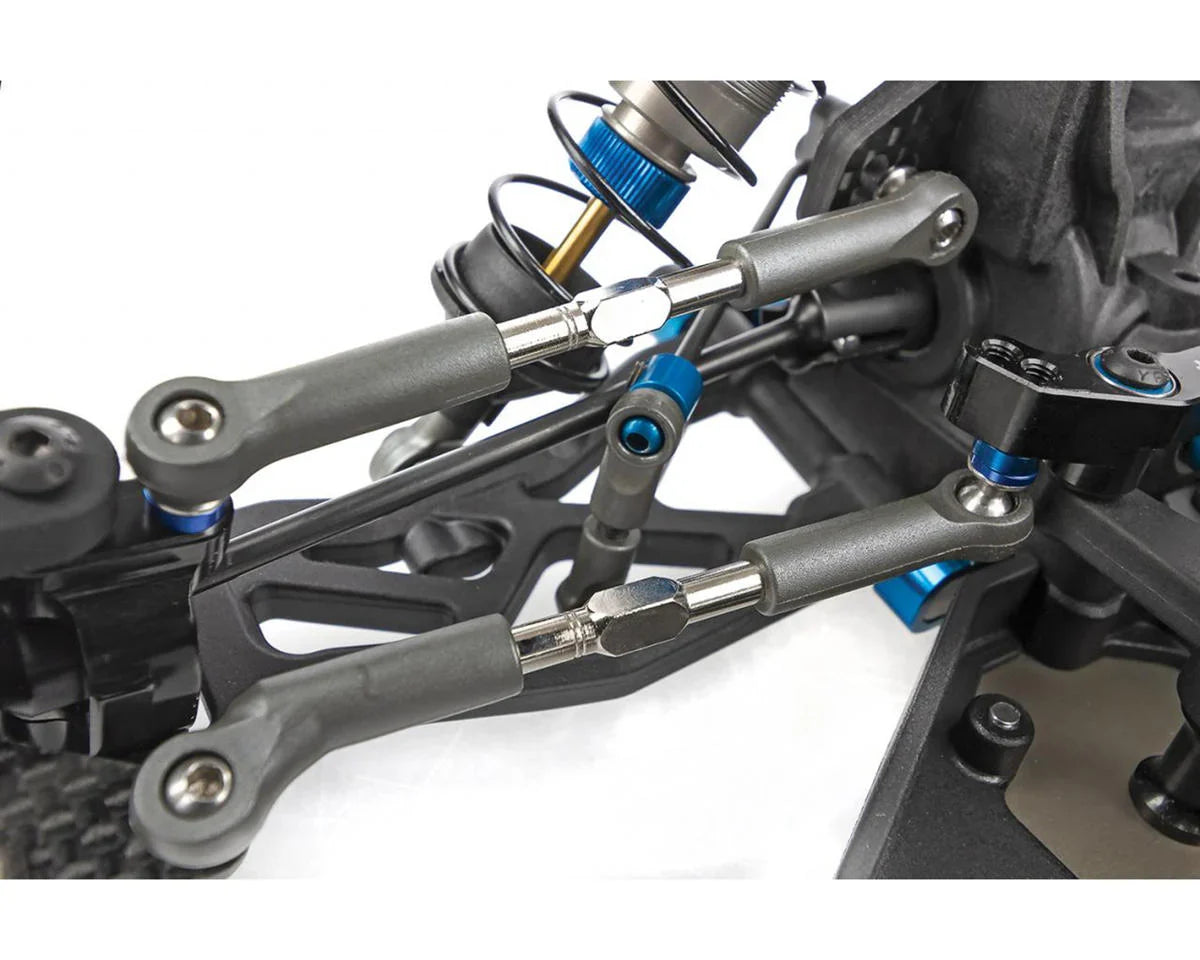

• Larger 3.5mm turnbuckles with updated ball cups
• Center bulkhead fan mount
• -2mm wing mounts for low-profile tires
• Center differential with 72T/78T spur gear options

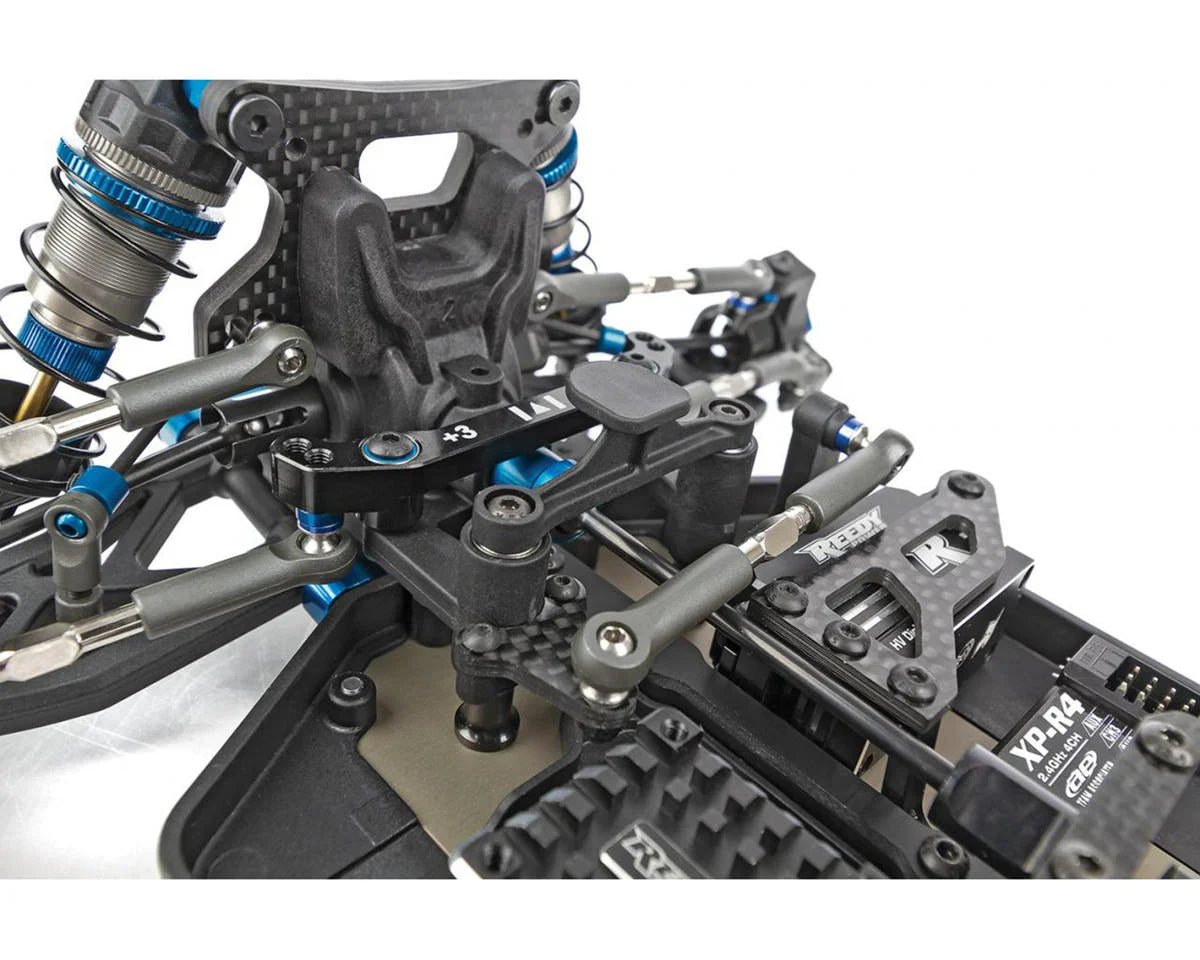

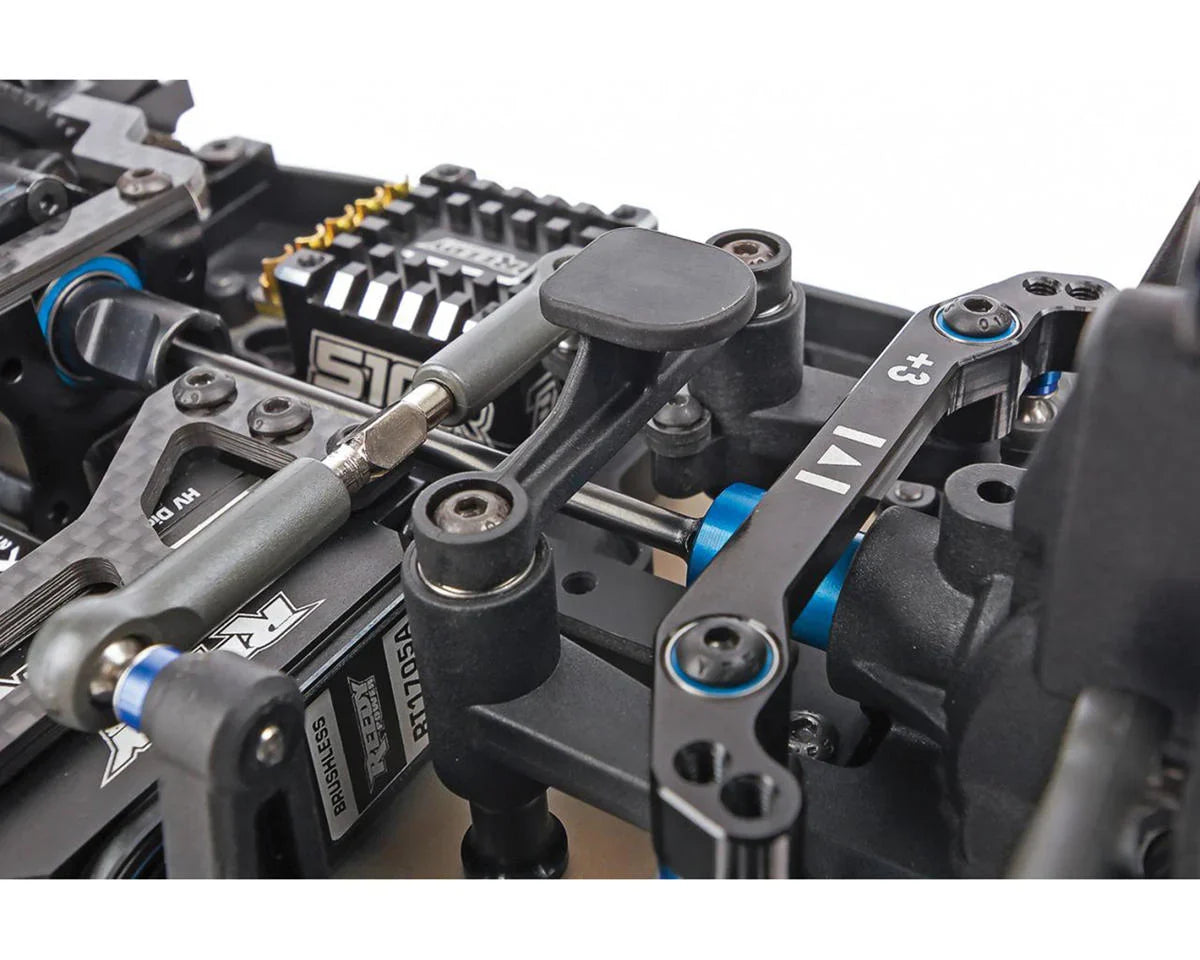

• +3mm aluminum steering rack
• 66mm rear CVA driveshafts

Performance Benefits

• IFMAR World Champion platform with proven race success
• LTC diff gears reduce binding for predictable power delivery
• Molded gearboxes lower CG for improved handling
• Modified diffs improve rolling speed and landing stability
• Gull wing arms lower CG and improve steering predictability
• 13mm big-bore shocks deliver superior jump control
• Multiple gearbox heights for track-specific setup
• +1 steering arms provide sharper steering response

Champions Edition Upgrades

• Factory Team LTC differential gear sets
• Factory Team molded ring and pinion gears
• Factory Team +1 steering block arms
• Updated competition setup included

Usage Notes

The RC10B74.2D CE Team Kit is designed for competitive 4WD buggy racing on dirt, clay, and low-grip surfaces. This kit requires assembly and electronics selection. Best suited for club through national-level competition. Recommended for intermediate-to-advanced builders.

Technical Specs

• Scale: 1/10
• Drivetrain: 4WD
• Length: 395mm (15.55 in)
• Wheelbase: 280.5-285.5mm (11.0-11.24 in)
• Weight: 885g (1.95 lbs) chassis only
• Internal Gear Ratio: 2.50:1
• Power Source: Electric (2S LiPo)
• Surface: Off-Road (Dirt, Clay)
• Format: Team Kit (Unassembled)
• Brand: Team Associated

What's Included

• RC10B74.2D CE Team Kit (unassembled)
• Factory Team molded components
• 13mm big-bore threaded aluminum shocks
• Molded gearboxes with height options
• LTC differential gear sets
• Center differential assembly
• Gull wing front arms and shock tower
• Clear polycarbonate body
• Rear wing
• Assembly hardware and instruction manual

Needed to Complete

• 2-channel radio system
• Steering servo
• Electronic Speed Controller
• 540-size electric motor
• 2S LiPo shorty battery
• Battery charger
• 1/10 off-road wheels and tires
• Polycarbonate body paint
• Silicone shock and diff fluids
• Assembly tools

Summary

The Team Associated RC10B74.2D CE Champions Edition Team Kit delivers IFMAR World Champion-level performance with Factory Team LTC differentials, molded gearboxes, and comprehensive tunability. Purpose-built for dirt racing, this 1/10 4WD buggy is ready for podium finishes at the highest levels of competition.
