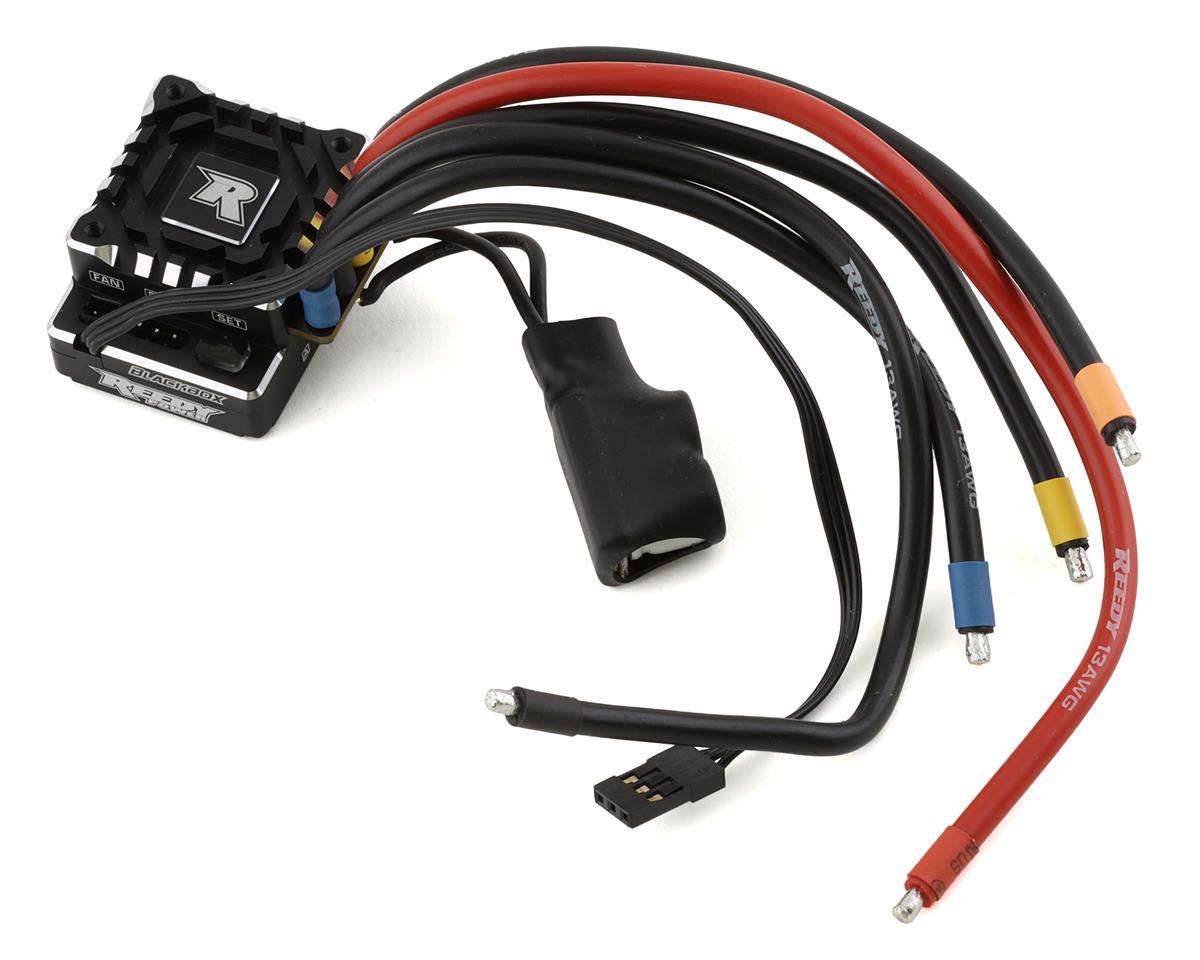

Team Associated Reedy Blackbox 610R Competition ESC (ONLINE ORDER ONLY)

Overview

The Reedy Blackbox 610R Competition ESC is a premium electronic speed controller engineered for serious 1/10 scale racers. Building on the legendary drivability and braking feel of the Blackbox 510R, the 610R features updated hardware, expanded tuning capability, and extensive competition testing by Reedy's engineering and racing team.

Designed to deliver world-class throttle response and exceptional braking feel, the Blackbox 610R is suitable for both stock/spec and modified on-road and off-road racing applications. The 32-bit microcontroller and ultra-low resistance FET board provide crisp, immediate response while the CNC-machined aluminum case ensures efficient thermal management.

Key Features

• CNC-machined black aluminum case with integrated heatsink
• Ultra-low resistance FET board
• 32-bit microcontroller (MCU)
• Precision throttle and brake control
• Fully adjustable brake, throttle, power, and safety functions
• Blinky mode with ROAR-approved software
• RPM and ESC temperature data logging
• Firmware updateable
• On-board power button
• External capacitor board included

Performance Benefits

• World-class throttle response and feel
• Exceptional braking modulation and control
• Two independent tuning modes (Standard and Expert)
• Efficient thermal management for fade-free operation
• ROAR-approved for sanctioned racing
• Extensive pro driver-tested setups available

Usage Notes

• Best suited for 1/10-scale touring cars, buggies, and trucks
• Compatible with sensored and sensorless brushless motors
• Motor limit: 4.5T
• Optional Blackbox Programmer2 unlocks full tuning potential
• Stock/spec and modified racing applications

Technical Specs

• Part Number: ASC27016
• Input Voltage: 2S LiPo
• Continuous Current: 160A
• Motor Limit: 4.5T
• BEC Output: Adjustable 6.0-7.4V @ 5A
• Dimensions: 38.5 x 36.9 x 19.5mm
• Weight: ~45g (without wires and fan)
• Power Wire Gauge: 13AWG silicone

What's Included

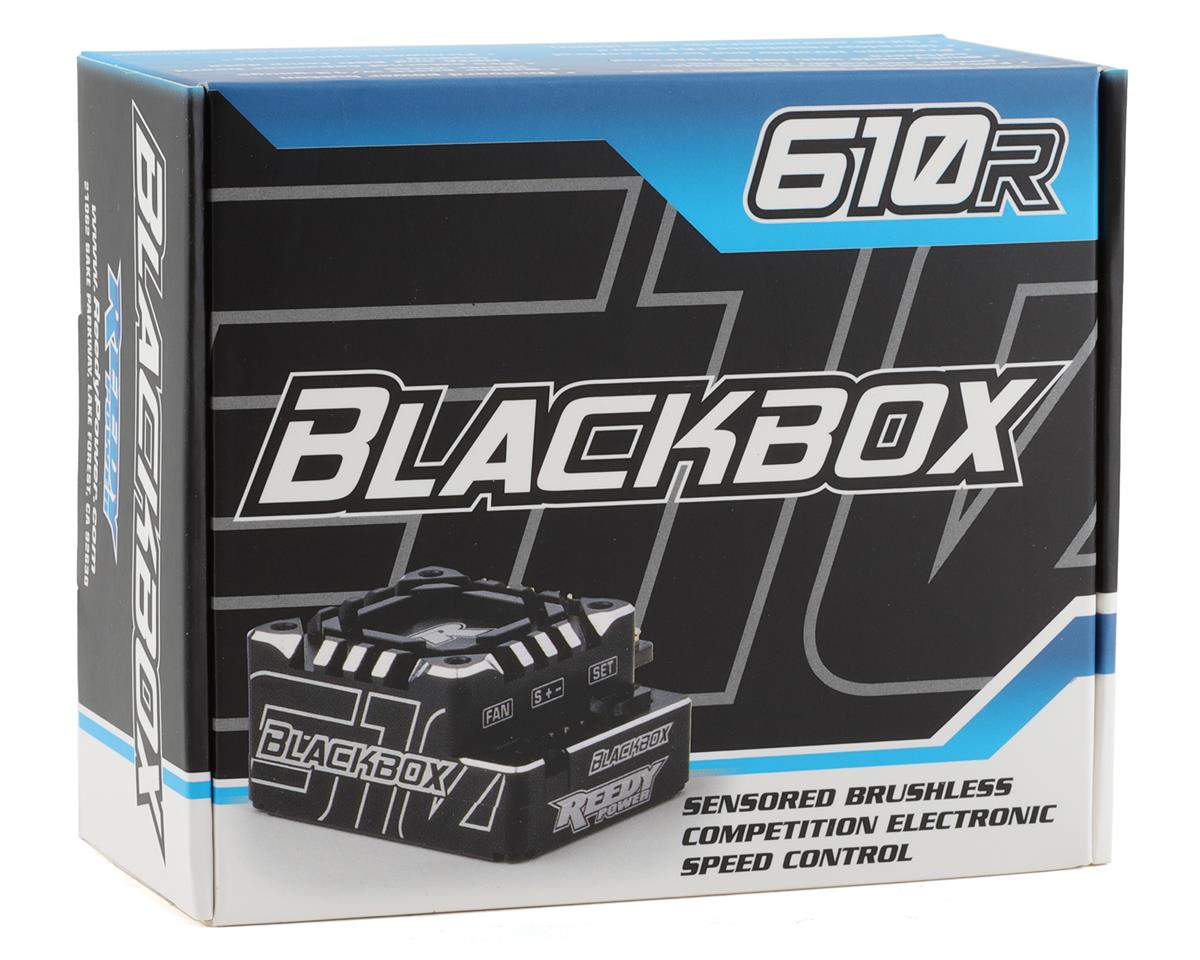

• (1) Reedy Blackbox 610R Competition ESC
• (1) External capacitor board

Summary

Achieve world-class performance with the Reedy Blackbox 610R. Premium build quality, extensive tuning options, and ROAR-approved software make this the ultimate choice for competitive 1/10-scale stock and modified racing.
