DESCRIPTION

This Tiny Video Player Kit lets you create a TinyScreen+ video player in an extremely small form factor. The OLED is a brilliant 96x64 pixel display packed into 0.96" diagonally, capable of up to 40 FPS 16-bit color video playback from a microSD card, with single-channel line-level audio output!  The TinyScreen+ is preloaded with software to allow for video playback, and a speaker, battery, and microSD card with example videos preloaded. Just turn it on and it will start playing back the videos.

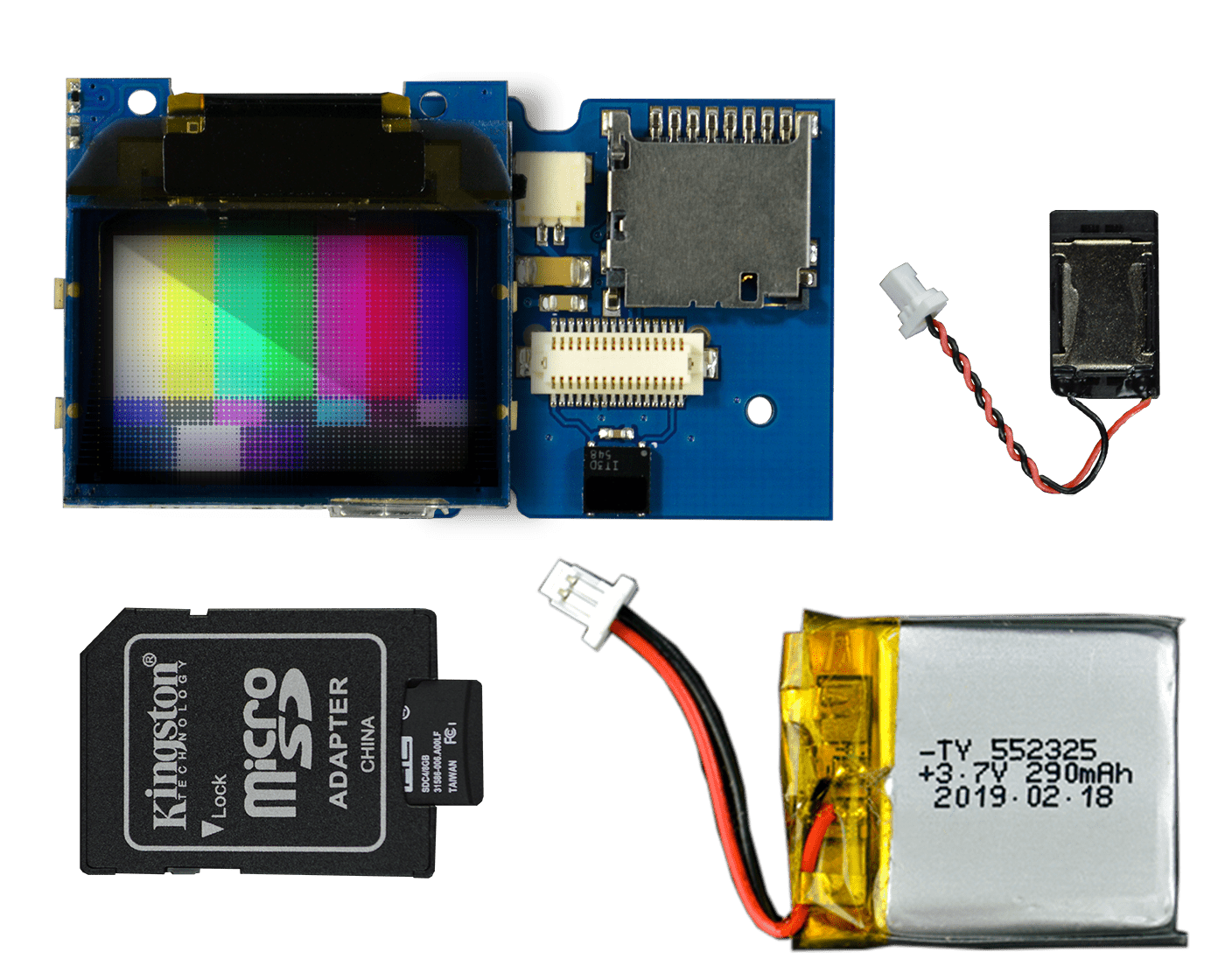

This kit includes the following items:

• TinyScreen+ Processor Board - Runs the program, has a SAMD 32-bit processor, OLED screen, USB, and power circuitry.
• MicroSD / Audio TInyShield - Designed specifically for use with the TinyScreen+, this TinyShield has the microSD card adapter, audio driver, and IR receiver (which can receive TV remote control signals).
• 290 mAh Rechargeable Lithium Polymer Battery - Used to power your video player, and is recharged when the USB is plugged into the TinyScreen+ board.
• 16x9 Speaker - for audio playback on videos.
• 8GB MicroSD card and Adapter - preloaded with sample videos.

To learn more about the TinyDuino Platform, click here

NOTES

• Converting videos to the TinyScreen video format (tsv) is simple, just run them through the TSV video converter and put them onto the microSD card to play them back.
• A micro USB cable is not included in the kit.
